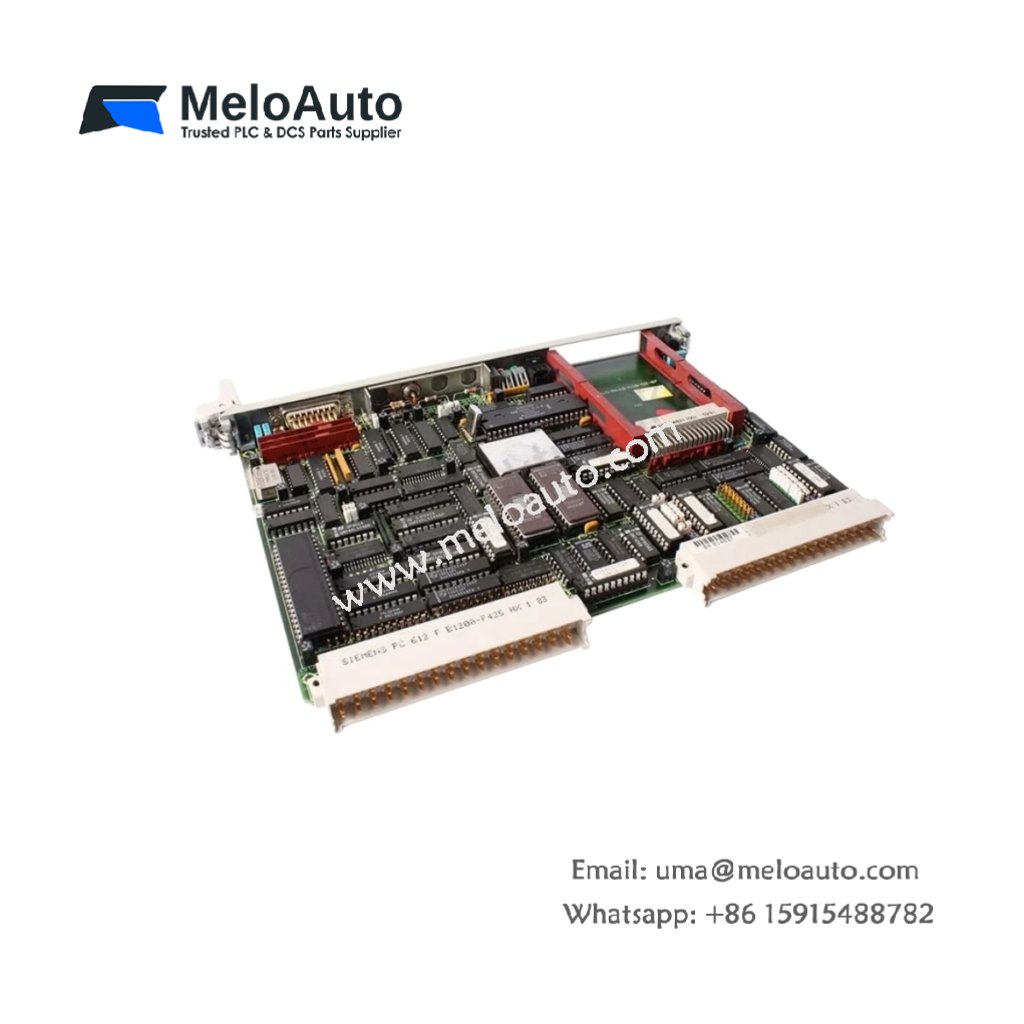

Siemens 6AV1242-0AB00 Communications Processor

Dedicated Communication for S5 Systems

The Siemens 6AV1242-0AB00 communications processor, also known as the CP527, enables robust data exchange for SIMATIC S5 automation systems . This module handles communication tasks with external devices such as printers and operator panels . Industrial networks benefit from this dedicated processing unit, which offloads the main CPU.

Technical Specifications and Physical Attributes

This communications processor features a monochrome display and includes an integrated printer port for versatile connectivity . The unit employs a self-ventilating design, which effectively dissipates heat without requiring external cooling . Its compact form factor allows straightforward installation in standard S5 rack configurations .

Communication Capabilities and Integration

The Siemens 6AV1242-0AB00 integrates seamlessly with SIMATIC S5 controllers for reliable data exchange . The module supports connections to printers and other peripheral devices through its dedicated port . Furthermore, the self-ventilating design ensures reliable operation in demanding industrial environments . Users can integrate this module into existing S5-based systems for enhanced communication functionality.

Installation and System Requirements

You can install this communications processor in compatible SIMATIC S5 racks using standard procedures. The module requires appropriate software for configuration and operation . Due to its legacy status, verify system compatibility before installation. Always handle the module with proper ESD precautions.

Applications and Compatibility Considerations

This communications processor suits applications requiring printer connectivity and operator interface communication . The module serves as a crucial component for maintaining legacy S5 systems . Users should consider the product’s obsolete status when planning system upgrades or replacements.
