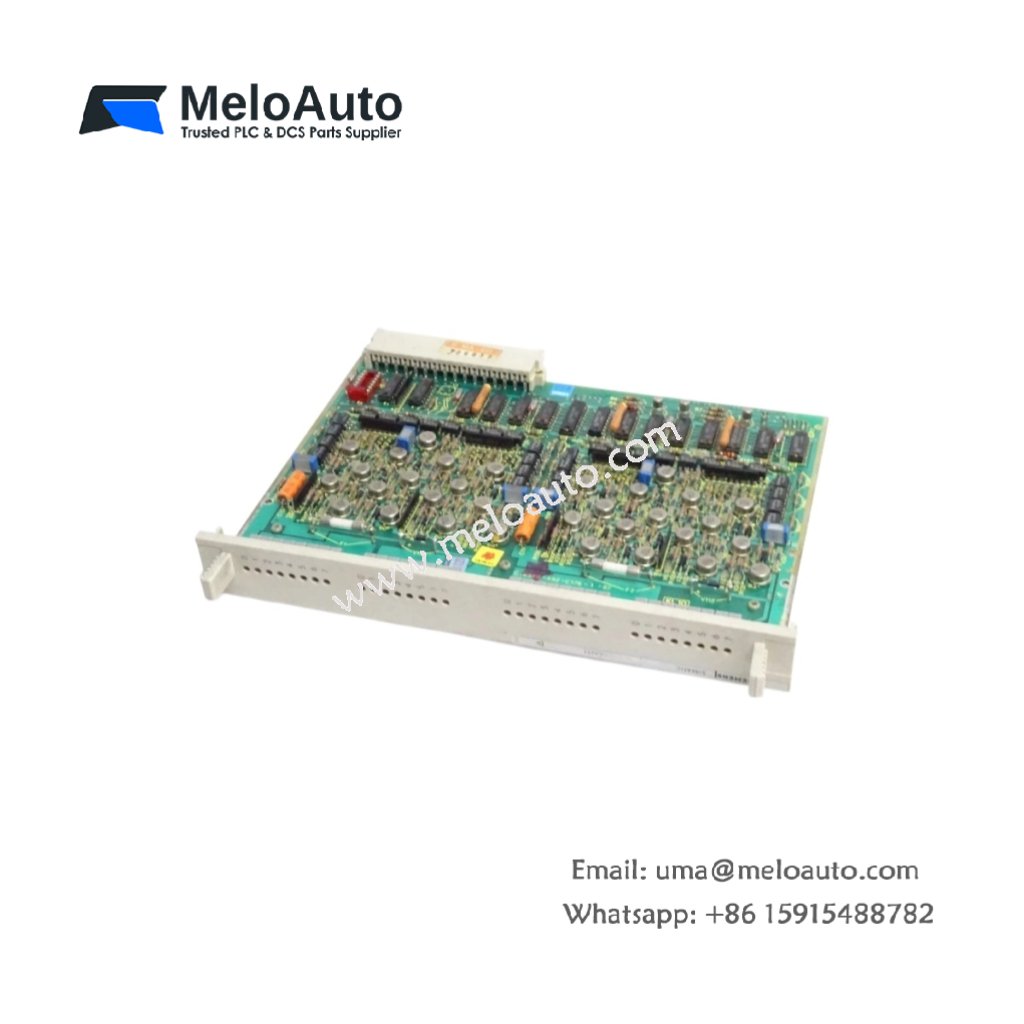

Siemens 6ES5450-6AA11 Digital Output Module

Technical Specifications and Output Capabilities

The Siemens 6ES5450-6AA11 digital output module belongs to the SIMATIC S5 product family, specifically designed for the S5-115U programmable controller . This module provides 32 digital output channels for controlling various field devices. Each channel delivers an output current of 0.5A at a nominal voltage of 24V DC . The module groups outputs into two groups of 16, each group sharing a common potential . It provides electrical isolation between the internal logic circuits and the field outputs. The module measures approximately 18.5 cm x 6.0 cm x 15.0 cm and weighs about 0.35 kg . A 20-pin front connector facilitates secure wiring connections.

Functional Capabilities

The 6ES5450-6AA11 module actively drives outputs to switch actuators, relays, and indicator lamps on and off. It converts the PLC’s logic signals into electrical power sufficient for field devices . The module’s isolation between internal and external circuits enhances overall system reliability. The grouping feature allows for flexible wiring arrangements in control cabinets. This digital output module ensures consistent switching performance for a variety of automation tasks.

Application Scenarios

This module suits industrial environments where the S5-115U PLC must control many output devices simultaneously . It enables precise on/off control in packaging machinery, material handling systems, and production lines . The 6ES5450-6AA11 integrates seamlessly into existing S5-115U-based architectures. Many facilities continue to rely on this legacy module to maintain their automation infrastructure . Its compact footprint facilitates straightforward installation in space-constrained control cabinets.
