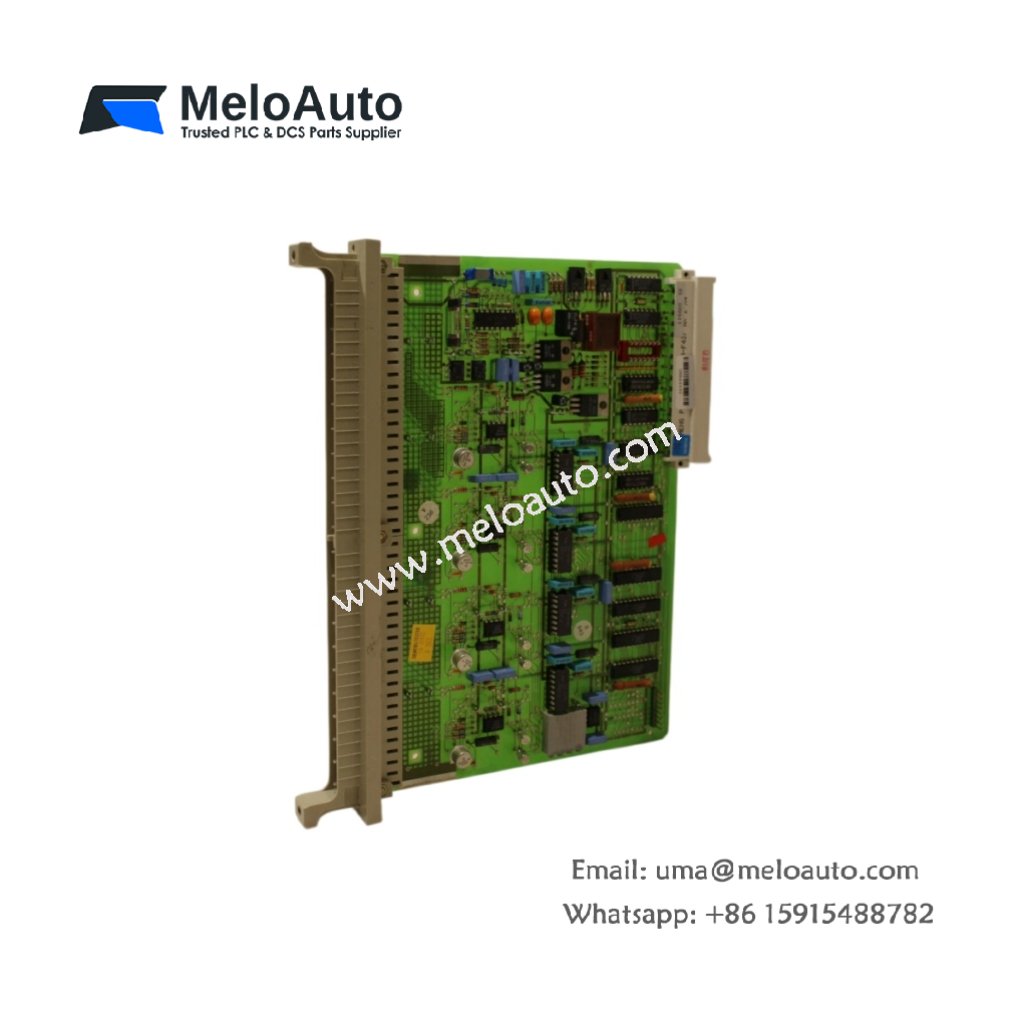

Siemens 6ES5476-3AA11 Analog Output Module

Technical Specifications and Signal Output Capabilities

The Siemens 6ES5476-3AA11 analog output module belongs to the SIMATIC S5 product family. This module converts digital values from the PLC into continuous analog signals for field devices . It provides 4 analog output channels for voltage or current signals . Each channel offers selectable output ranges including 0-10V, ±10V, 0-20mA, and 4-20mA . The module features a resolution of 12 bits for high-precision signal generation . It provides electrical isolation between the internal logic circuits and the analog outputs.

Functional Capabilities

The 6ES5476-3AA11 enables precise analog control of actuators such as valves, drives, and recorders. It provides smooth modulation of output signals for continuous process regulation . The module handles both voltage and current signals, offering flexible integration with various field devices. Its 12-bit resolution ensures accurate representation of setpoint values .

Application Scenarios

This module suits process control applications requiring continuous output signals for modulation. It performs well in temperature control loops and flow regulation systems. The 6ES5476-3AA11 integrates seamlessly into existing S5-based architectures. Many facilities continue to rely on this legacy module to maintain their automation infrastructure . Its robust design ensures dependable operation in demanding industrial environments.
