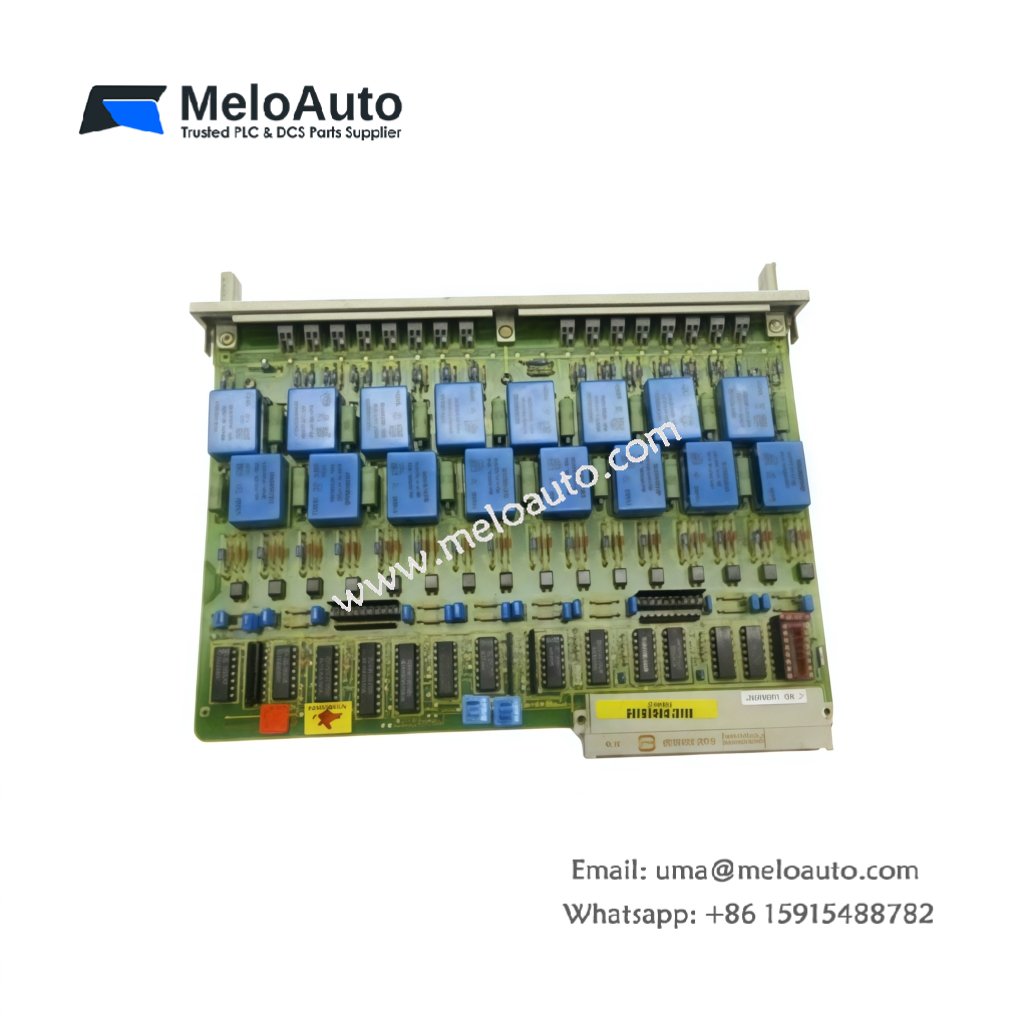

Siemens 6ES5436-6BA12 Digital Input Module

The 6ES5436-6BA12 reads 16 digital field signals for SIMATIC S5 systems. This module accepts 24V DC inputs from sensors and switches. It provides optical isolation between the field and the backplane.

Key Technical Specifications

Parameter	Value
Number of Inputs	16 channels
Input Voltage	24V DC nominal (20-30V range)
Input Current	7 mA per channel typical
Input Delay	3 ms (ON to OFF)
Signal Isolation	1500V AC optical
Power Consumption	3.5 W from backplane
Board Dimensions	23.0 cm x 12.5 cm x 4.0 cm
Weight	0.32 kg (0.71 lbs)
Component Count	96 discrete components
Connection Type	20-pin screw terminal
Operating Temperature	0°C to 60°C

Physical Dimensions and Component Layout

This module measures 23.0 cm in length and 12.5 cm in width. Its total height reaches 4.0 cm including the terminal block. 6ES5436-6BA12 weighs just 0.32 kg for easy rack installation. You will find 96 discrete components on a four-layer PCB.

Moreover, the module integrates a 220 µF capacitor bank for input filtering. This bank smooths voltage spikes from inductive field devices. It also debounces noisy switch contacts effectively.

Input Channel Design and Characteristics

Each of the 16 channels features an optocoupler for isolation. The optocoupler separates field wiring from the internal 5V logic. Each channel draws only 7 mA from the field supply. Consequently, you can connect many modules to one power supply.

Connector Interface and Field Wiring

A 20-pin screw terminal block accepts field wiring for all 16 inputs. Four additional terminals provide two separate 24V DC field supply connections. Each terminal accepts wire sizes from 26 AWG to 14 AWG. LED indicators sit above each channel for visual status monitoring.

Typical Application Scenarios

You can deploy 6ES5436-6BA12 in SIMATIC S5-115U, 135U, and 155U racks. It also works well for S5-95U systems needing extra input capacity. This module reads limit switches, pushbuttons, proximity sensors, and relay contacts. Its 16 channels suit medium-sized automation tasks like packaging lines.
