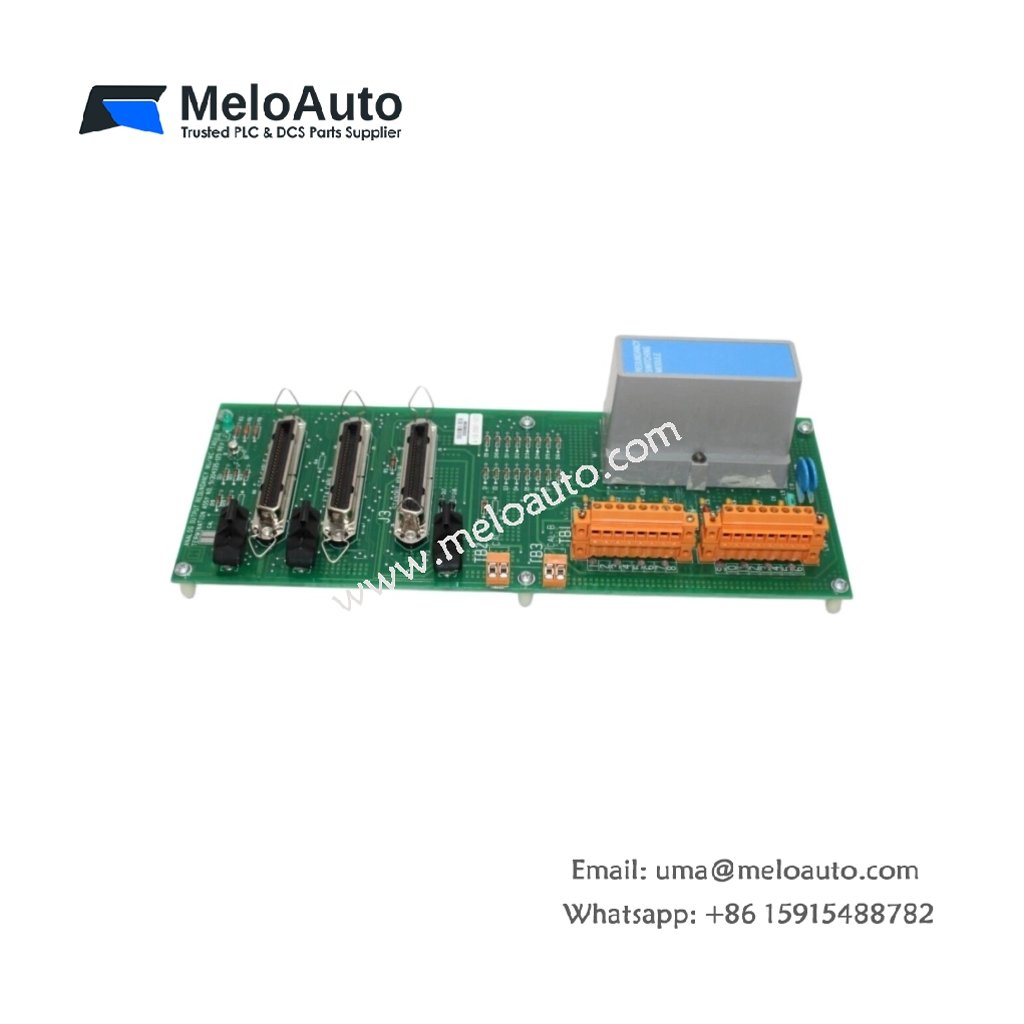

Honeywell MU/MC-TAOX12 51304335-125 Analog Output

This redundancy board provides failsafe analog output capabilities for Honeywell TDC 3000 and Experion control systems. The Honeywell MU/MC-TAOX12 51304335-125 delivers two independent 4-20 mA output channels with automatic switchover for critical process control. Its dedicated redundancy design ensures continuous operation during primary module failures.

Key Technical Specifications

Parameter	Details
Model	Honeywell MU/MC-TAOX12 51304335-125
Product Type	Analog Output Redundancy Board
Dimensions (W x H x D)	180 mm x 230 mm x 30 mm
Weight	0.72 kg
Number of Outputs	2 channels (redundant pair)
Output Signal Range	4-20 mA (standard)
Resolution	12 bits (0.1 % of full scale)
Accuracy	±0.25 % of span at 25 °C
Load Impedance	≤ 600 Ω per channel
Switchover Time	50 ms maximum (automatic)
Isolation Voltage	1,500 V AC (output-to-bus)
Bus Interface	TDC 3000 or Experion backplane connector
Power Consumption	120 mA at 24 V DC (from backplane)
Operating Temperature	0 °C to +60 °C
Protection Class	IP20
Field Wiring	Removable screw terminal block

Redundancy Architecture and Switchover Performance

The Honeywell MU/MC-TAOX12 51304335-125 houses two complete output channels that operate in active/standby configuration. Its automatic switchover mechanism engages the backup channel within 50 ms of detecting a primary channel fault. This rapid transfer ensures uninterrupted control signals to critical final control elements. Furthermore, the module continuously monitors both channels and reports the active status to the system controller.

Output Performance and Signal Integrity

This redundancy board delivers 4-20 mA signals with 12-bit resolution for precise valve positioning and variable speed control. Its ±0.25 % accuracy maintains reliable output values across the full span. A 600 Ω load capacity accommodates most standard actuators and positioners in process applications. Moreover, the module provides individual short-circuit protection on each channel to prevent cascading failures.

Mechanical Design and System Integration

The Honeywell MU/MC-TAOX12 51304335-125 mounts directly into Honeywell TDC 3000 and Experion chassis with its 180 mm width and 230 mm height dimensions. Its 0.72 kg weight supports stable installation within standard rack systems. A removable terminal block simplifies field wiring connections and facilitates maintenance replacements. Front-panel LEDs indicate active channel status, fault conditions, and overall board health.

Diagnostic Capabilities and Fault Detection

This redundancy board incorporates comprehensive self-diagnostics that monitor output current, loop integrity, and internal power supplies. It detects open-circuit conditions, overcurrent events, and internal component failures in real-time. The module reports fault status to the host controller through the backplane communication interface. Consequently, maintenance personnel receive immediate notification of any output channel deterioration or failure.

Power Efficiency and Environmental Tolerance

The Honeywell MU/MC-TAOX12 51304335-125 draws 120 mA from the 24 V DC backplane supply during normal operation. Its 0 °C to 60 °C operating temperature range supports standard indoor process control environments. An IP20 protection rating requires enclosure mounting but provides adequate protection for clean industrial installations.

Application Domains and Safety Significance

This analog output redundancy board serves critical process loops requiring high availability such as reactor temperature control and pressure regulation. It applies to oil refining, chemical processing, power generation, and pharmaceutical manufacturing applications. Consequently, the Honeywell MU/MC-TAOX12 51304335-125 ensures uninterrupted control for safety-related and production-critical functions.
