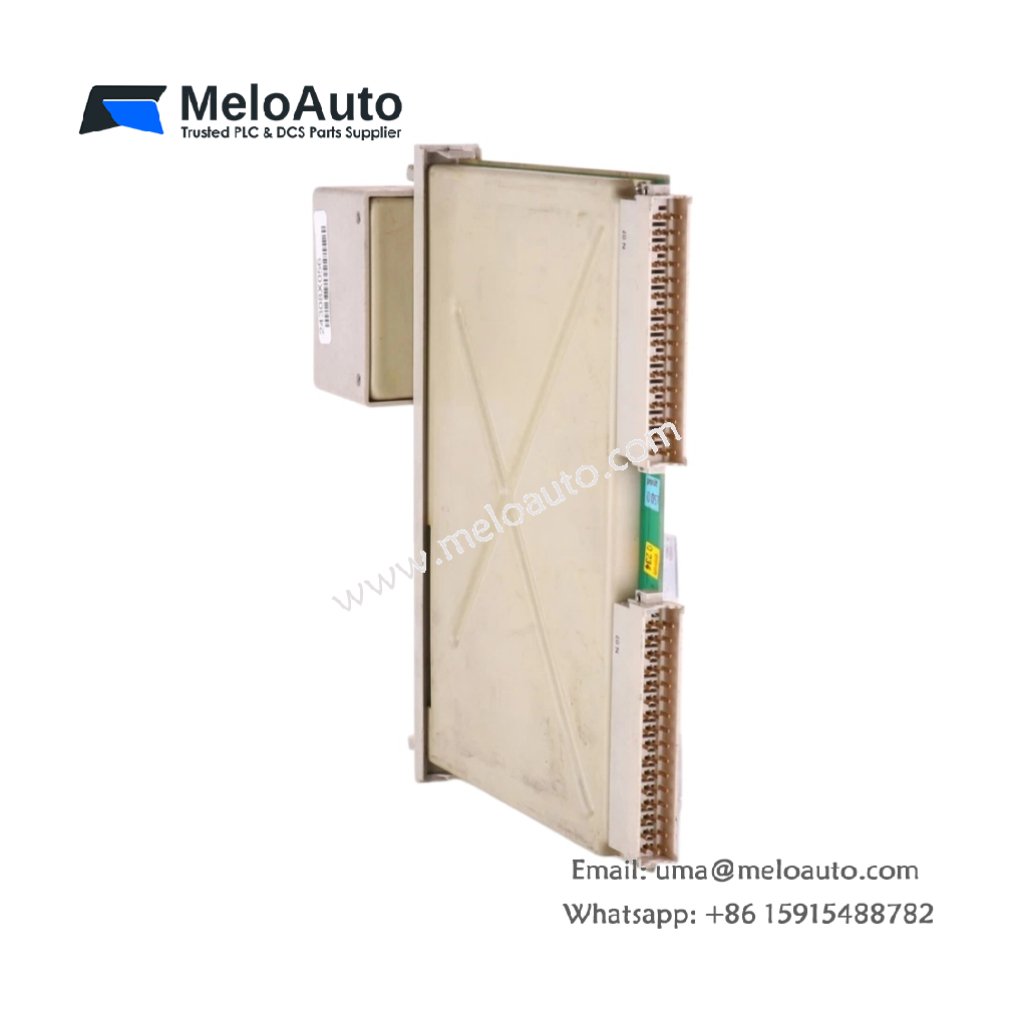

Siemens 6ES5331-5AA11 Test Module | 16 Inputs 16 Outputs

The 6ES5331-5AA11 serves as a test module for Siemens SIMATIC S5 systems. This unit simulates inputs and monitors outputs for troubleshooting purposes. Its rectangular frame measures 232 millimeters in width. The module height reaches 210 millimeters exactly. Depth stays at 155 millimeters. You will find this unit weighs approximately 0.85 kilograms. Therefore, installation requires sliding the unit into a standard S5 rack slot. Sixteen toggle switches provide manual input simulation capability.

Physical Layout and Connectors

The front panel features sixteen toggle switches for input simulation. Sixteen red LEDs display output status for monitoring. One 20-pin front connector interfaces with the system backplane. Two guide rails secure the module firmly in the rack. A printed label identifies each switch and LED function clearly.

Technical Specifications

Parameter	Specification
Module Width	232 mm
Module Height	210 mm
Module Depth	155 mm
Unit Weight	0.85 kg
Simulated Inputs	16 (toggle switch controlled)
Monitored Outputs	16 (LED indication)
Front Connector	1 x 20-pin
Component Total	156 discrete parts
Internal Energy Storage	220 µF capacitor bank
Input Voltage	24V DC (from backplane)
Input Current	100 mA typical
Switch Type	SPDT toggle, momentary option
LED Color	Red (output status)
Operating Temperature	0°C to +55°C

Internal Design and Energy Storage

The 6ES5331-5AA11 contains exactly 156 discrete components onboard. A 220 microfarad capacitor bank filters noise from the backplane power supply. Sixteen toggle switches connect directly to input signal lines. Sixteen red LEDs indicate the state of each output channel. The module includes current limiting resistors for all LEDs. A simple PCB routes all signals without active processing components.

Operational Performance

This test module simulates input signals for program debugging and testing. It monitors output states without connecting field devices. Moreover, the unit helps technicians troubleshoot system logic offline. You can force inputs high or low using the front toggle switches. The module reads actual output states from the backplane directly. Sixteen LEDs show real-time output status for each channel. Consequently, you achieve efficient diagnostics for S5 system maintenance. Siemens designed this module for commissioning and repair work. Its passive design requires no software configuration.

In summary, the 6ES5331-5AA11 delivers useful test functionality. Use this module for program debugging and system validation. It simplifies troubleshooting without external test equipment. Order this test module for your Siemens SIMATIC S5 system.
