Siemens 6AV6541-0AA05-2BB0 Operator Panel

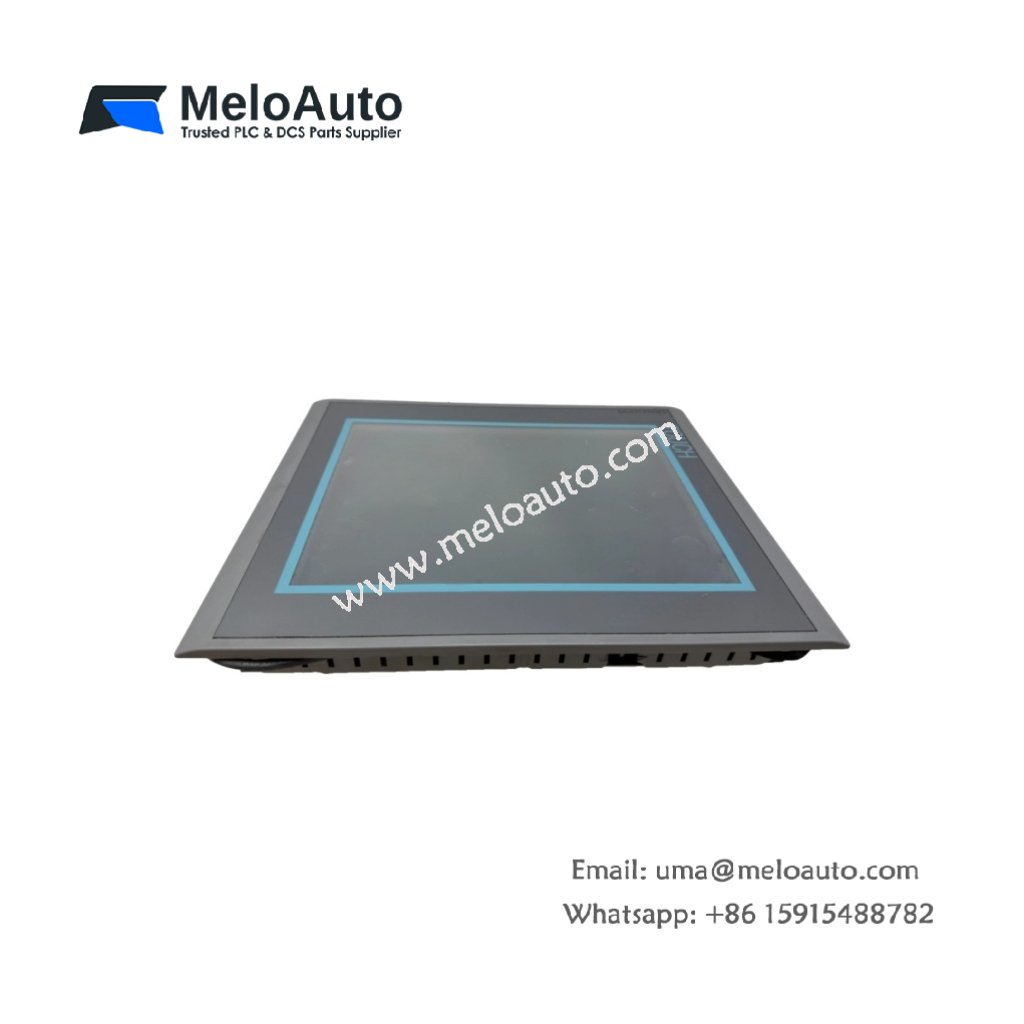

The 6AV6541-0AA05-2BB0 serves as an operator panel for Siemens automation systems. This HMI terminal provides touchscreen control and process visualization. Its rectangular frame measures 212 millimeters in width. The panel height reaches 156 millimeters exactly. Depth stays at 45 millimeters. You will find this unit weighs approximately 0.95 kilograms. Therefore, installation requires cutting a panel opening and securing with clamps. One front-panel USB port supports data transfer and backup.

Physical Layout and Connectors

The front panel features a 5.7-inch color touchscreen display. You will find eight programmable function keys below the screen. One RS-232 serial port connects to PLC programming software. A second RS-485 port supports MPI or Profibus communication. Three status LEDs indicate power, communication, and system status.

Technical Specifications

Parameter	Specification
Panel Width	212 mm
Panel Height	156 mm
Panel Depth	45 mm
Unit Weight	0.95 kg
Display Size	5.7 inches diagonal
Display Type	STN color, 256 colors
Resolution	320 x 240 pixels
Touchscreen	Resistive analog
Function Keys	8 programmable
Communication Ports	RS-232, RS-485, USB
Component Total	386 discrete parts
Internal Energy Storage	680 µF capacitor bank
Backlight Life	50,000 hours typical
Operating Temperature	0°C to +45°C

Internal Design and Energy Storage

The 6AV6541-0AA05-2BB0 contains exactly 386 discrete components inside. A 680 microfarad capacitor bank filters noise from the 24V DC power input. A 32-bit processor manages display graphics and communication tasks. The unit includes flash memory for screen configuration storage. A CCFL backlight illuminates the display panel evenly. The touchscreen controller digitizes user input with 12-bit resolution.

Operational Performance

This operator panel displays process data from Siemens PLCs in real time. It accepts user inputs through touch and function keys. Moreover, the unit supports multiple communication protocols for flexibility. You can upload screen configurations via USB or serial ports. The panel logs alarm messages and operator actions for review. Three LEDs show power, communication, and system status clearly. Consequently, you achieve intuitive machine control and monitoring. Siemens designed this panel for factory floor environments. Its sealed front meets IP65 protection standards.

In summary, the 6AV6541-0AA05-2BB0 delivers reliable HMI functionality. Use this panel for machine control and process visualization. It provides clear graphical display for operator interaction. Order this operator panel for your Siemens automation system.
