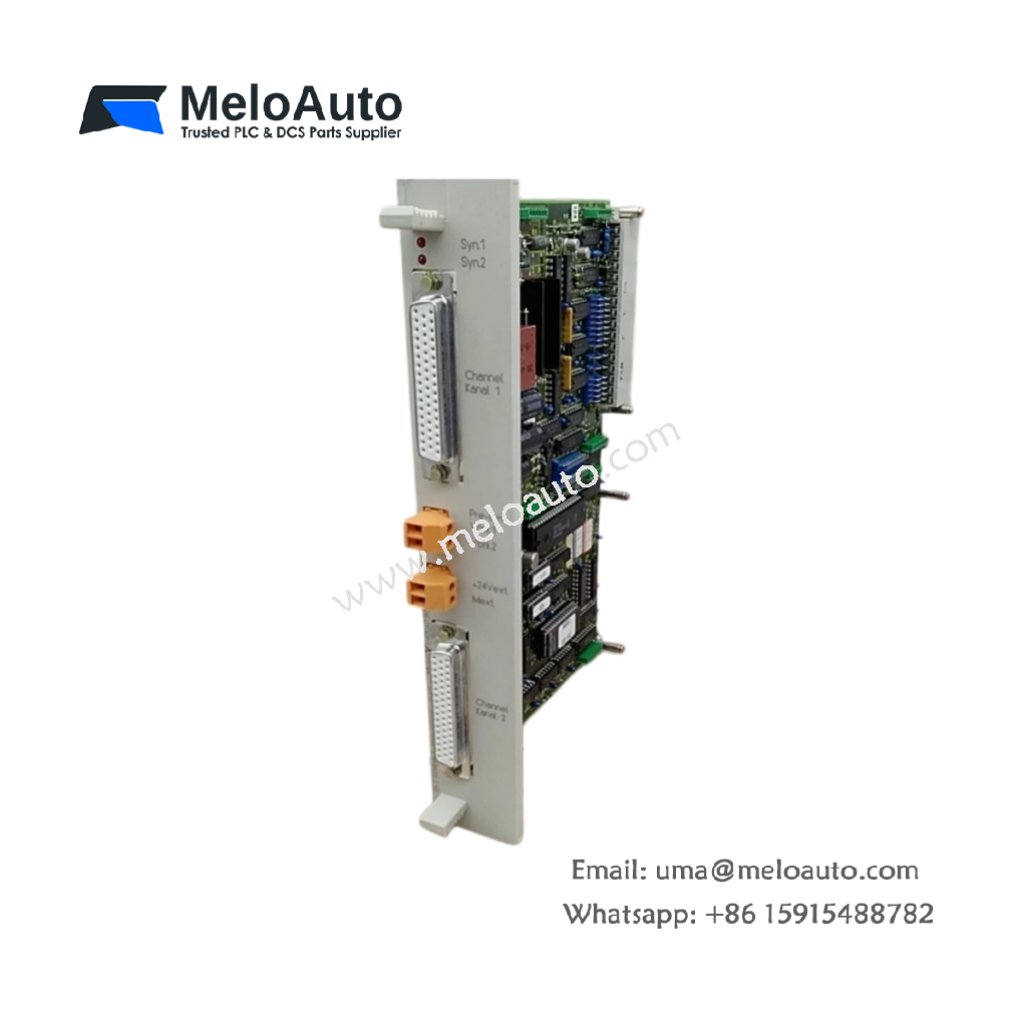

Siemens 6ES5241-1AA12 Digital Position Decoder

The 6ES5241-1AA12 reads position data from incremental encoders for SIMATIC S5 systems. This module decodes quadrature signals for precise axis position tracking. Its rectangular frame measures 232 millimeters in width. The module height reaches 210 millimeters exactly. Depth stays at 155 millimeters. You will find this unit weighs approximately 0.88 kilograms. Therefore, installation requires sliding the unit into a standard S5 rack slot. One 20-pin front connector handles all encoder wiring connections.

Physical Layout and Connectors

The front connector accepts wires up to 16 AWG gauge. A 15-pin D-sub port provides an additional encoder interface. Four status LEDs indicate power, count direction, and overflow conditions. Two guide rails secure the module firmly in the rack. Two rotary switches allow manual configuration of operating modes.

Technical Specifications

Parameter	Specification
Module Width	232 mm
Module Height	210 mm
Module Depth	155 mm
Unit Weight	0.88 kg
Encoder Inputs	2 (incremental, quadrature)
Encoder Interface	15-pin D-sub, 20-pin front connector
Component Total	286 discrete parts
Internal Energy Storage	820 µF capacitor bank
Max Input Frequency	100 kHz per channel
Counter Resolution	24 bits (16,777,216 counts)
Signal Input	5V differential (RS-422)
Operating Modes	Counting, measuring, positioning
Operating Temperature	0°C to +55°C

Internal Design and Energy Storage

The 6ES5241-1AA12 contains exactly 286 discrete components inside. An 820 microfarad capacitor bank filters noise from the internal power supply. Dual quadrature decoders handle position data from each encoder. The module includes differential line receivers for noise immunity. A 24-bit counter stores the current axis position value. LED indicators show count direction and overflow status.

Operational Performance

This digital position decoder reads A, B, and reference signals from incremental encoders. It tracks axis position with 24-bit resolution. Moreover, the module supports counting, measuring, and positioning modes. You can connect encoders with 5V differential outputs directly. The unit captures position data for CNC and motion control applications. Four LEDs provide clear visual indication of module status. Consequently, you achieve precise position feedback for servo systems. Siemens designed this module for SIMATIC S5 platform compatibility. Its rugged construction suits machine tool and robotics applications.

In summary, the 6ES5241-1AA12 delivers accurate position decoding. Use this module for axis position feedback in motion systems. It captures encoder pulses without CPU overhead. Order this digital position decoder for your Siemens S5 system.
