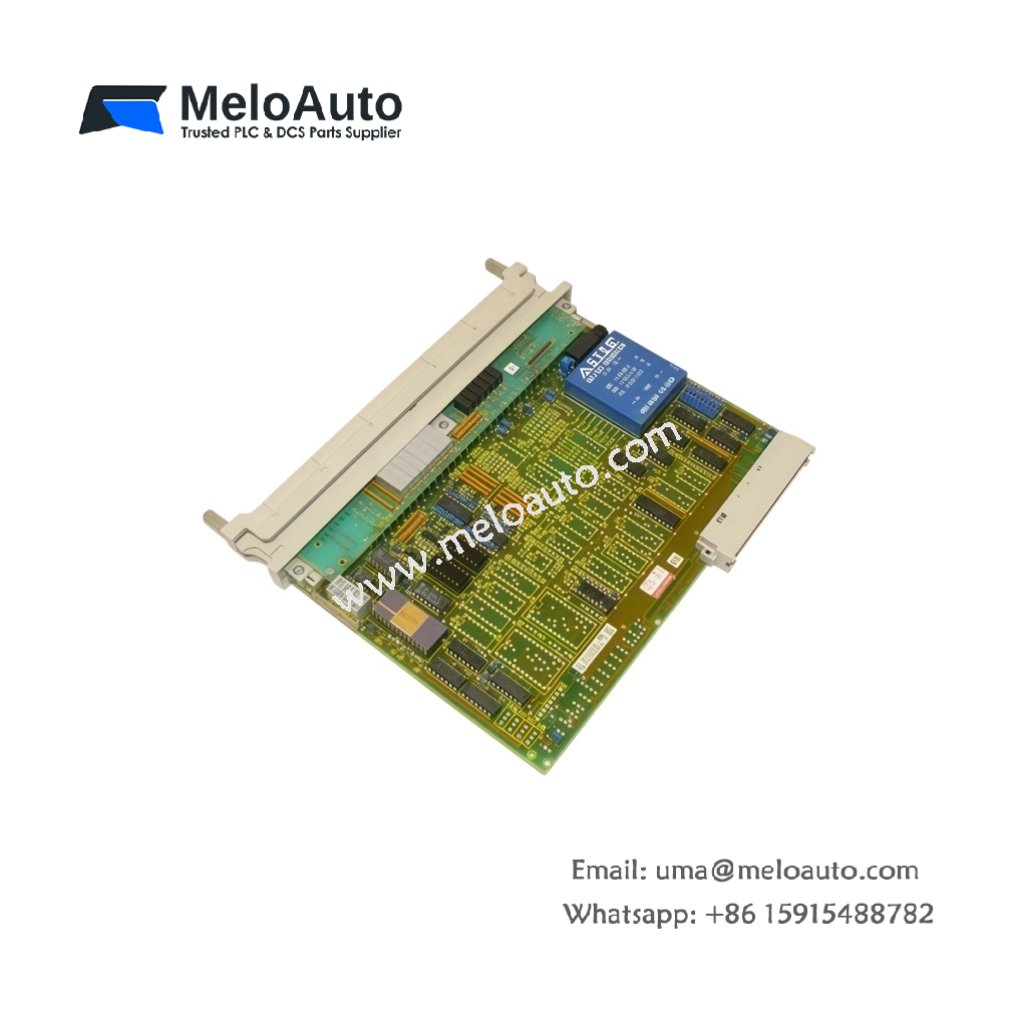

Siemens 6ES5243-1AB12 IP243 Analog Module

8-Channel Analog Input for SIMATIC S5-115U/135U/155U

The 6ES5243-1AB12 IP243 analog module expands SIMATIC S5-115U, S5-135U, and S5-155U PLCs with eight analog input channels. This module accepts various analog signal types, including 0-10 V voltage and 4-20 mA current signals. It converts these signals into digital values for precise monitoring of temperature, pressure, and flow rate. This module ensures high-resolution signal acquisition through its integrated analog-to-digital converter. It provides seamless integration with S5 CPU modules via the system bus for reliable data transmission.

Technical Specifications

Signal Acquisition and Channel Configuration

The 6ES5243-1AB12 offers multi-channel analog input capability for simultaneous process monitoring. Each channel supports both voltage and current signals, adapting to various sensor types. The module’s high-resolution conversion ensures accurate measurement of dynamic process variables. Furthermore, it enables real-time data acquisition for critical control loops. This input module processes signals from transmitters and sensors in chemical, pharmaceutical, and food processing applications. Users can configure each channel individually to match the connected sensor’s output characteristics. The module also features filtering options to minimize electrical noise interference.

Physical Characteristics and Installation

The 6ES5243-1AB12 weighs approximately 0.45 kg and measures 21.0 cm in width, 26.0 cm in depth, and 5.0 cm in height. It occupies a standard slot within the S5 rack. Users install this module quickly without special tools. The front panel includes screw terminals for straightforward field wiring. Its compact form factor allows efficient use of rack space in densely populated cabinets. The module’s robust construction withstands vibration and temperature variations typical of factory environments. LED indicators on the front panel provide visual confirmation of module status and channel activity.

Application Scenarios and Integration

This analog module excels in process automation environments requiring precise variable measurement. It supports temperature, pressure, and flow monitoring in industrial processes. The 6ES5243-1AB12 also plays a key role in environmental monitoring and production line control. Users integrate this module with S5 CPUs through the system bus for seamless data exchange. It enables alarm triggering and protection functions based on real-time signal changes. This module also supports HART communication for smart devices when configured appropriately. Consequently, it serves as a versatile solution for both legacy and upgraded automation systems.

Protection and Reliability Features

The 6ES5243-1AB12 incorporates comprehensive protection features for reliable operation. It includes overvoltage protection on all input channels to prevent damage from voltage spikes. The module also provides galvanic isolation between channels and the backplane bus. This isolation prevents ground loops and protects against electrical noise. The module’s robust design ensures reliable performance even in harsh industrial conditions.
