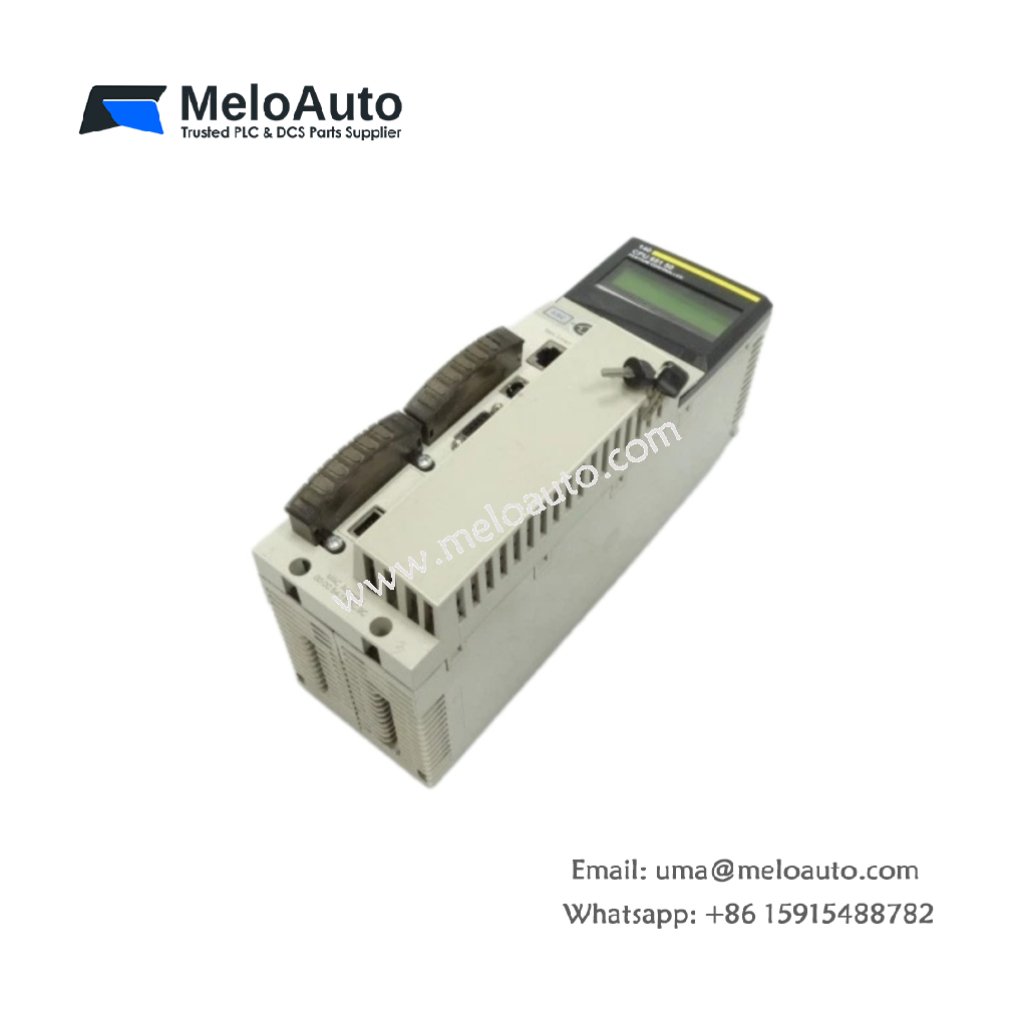

Schneider 140CPU43412UC Unity Processor for Modicon Quantum PLCs

The Schneider 140CPU43412UC serves as the central processing unit for Modicon Quantum automation systems. You can install this processor into any standard Quantum rack slot zero. It executes user logic and manages all system I/O data seamlessly. This CPU suits medium to large-scale industrial control applications.

Technical Specifications and Hardware Architecture

The Schneider 140CPU43412UC measures 138 mm in height. Its width reaches 54 mm, and the depth equals 145 mm. The Schneider 140CPU43412UC weighs approximately 0.48 kilograms. A single internal main PCB holds the microprocessor and memory circuits. The module includes one replaceable lithium battery for program retention. This battery preserves user logic and retentive data during power-off periods. One 48-pin edge connector interfaces directly with the Quantum backplane. One 9-pin D-sub port provides a programming and debug connection.

Memory Capacity and Processing Performance

The Schneider 140CPU43412UC provides 512 KB of user program memory. It also includes 64 KB of retentive data storage. The module executes 1000 ladder logic instructions in just 0.3 milliseconds. Consequently, this speed handles complex control algorithms and fast sequencing tasks. The lithium battery offers three years of typical service life. A front-panel LED signals low battery voltage one month in advance. The CPU supports up to 2048 local I/O points without expansion.

Programming and Diagnostic Features

You must insert the Schneider 140CPU43412UC into slot zero of the Quantum rack. Transitioning to programming, use Unity Pro software via the D-sub port. The module includes a three-position keyswitch for run, stop, and program modes. Four front LEDs show power, run, fault, and battery status clearly. A built-in watchdog timer resets the processor on software hangs. The operating temperature range spans from 0°C to 60°C reliably.
