Product Overview

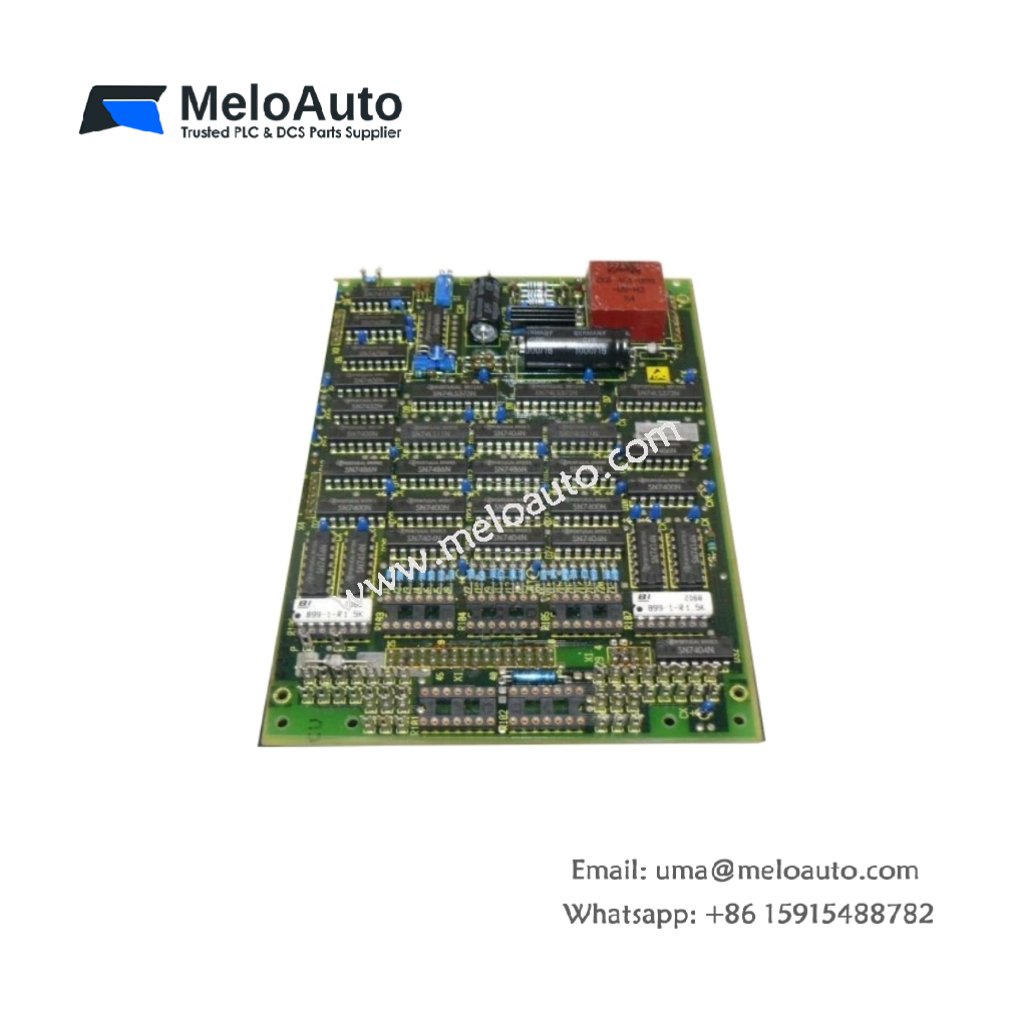

The Siemens 6ES5241-1AC12 daughter board expands the functionality of SIMATIC S5 programmable controllers through additional I/O or communication capabilities. This compact module plugs directly into a compatible carrier board within the S5 rack system. It enhances system flexibility without requiring a complete hardware replacement. The board comes as a lightweight unit weighing approximately 0.12 kg.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 6ES5241-1AC12 |
| Product Type | Daughter Board |
| Brand | Siemens |
| Category | PLC Expansion Boards |
| Compatibility | SIMATIC S5 Series |
| Form Factor | Compact expansion board |
| Weight | Approximately 0.12 kg |
| Interface | Carrier board connector |
| Function | I/O or communication expansion |
| Mounting | Plug-in to carrier board |
Key Features and Benefits
Seamless System Expansion
The 6ES5241-1AC12 adds new capabilities to existing S5 controllers without major system modifications. It provides additional I/O points or communication ports as needed. This expansion approach protects the original investment in the base system.
Compact and Lightweight Design
This daughter board weighs only 0.12 kg and occupies minimal space. Its small footprint does not interfere with other modules in the rack. Users can install this board without altering the existing cabinet layout.
Simple Plug-in Installation
The board inserts directly into designated slots on a compatible carrier board. Technicians can complete the installation in minutes with basic hand tools. This simplicity reduces labor costs and system downtime.
Application and Use Cases
The Siemens 6ES5241-1AC12 serves applications requiring additional I/O capacity or specialized communication interfaces. It supports system upgrades where the base CPU lacks sufficient onboard resources. Maintenance teams will find this board a cost-effective solution for expanding existing S5 systems.
