Product Overview

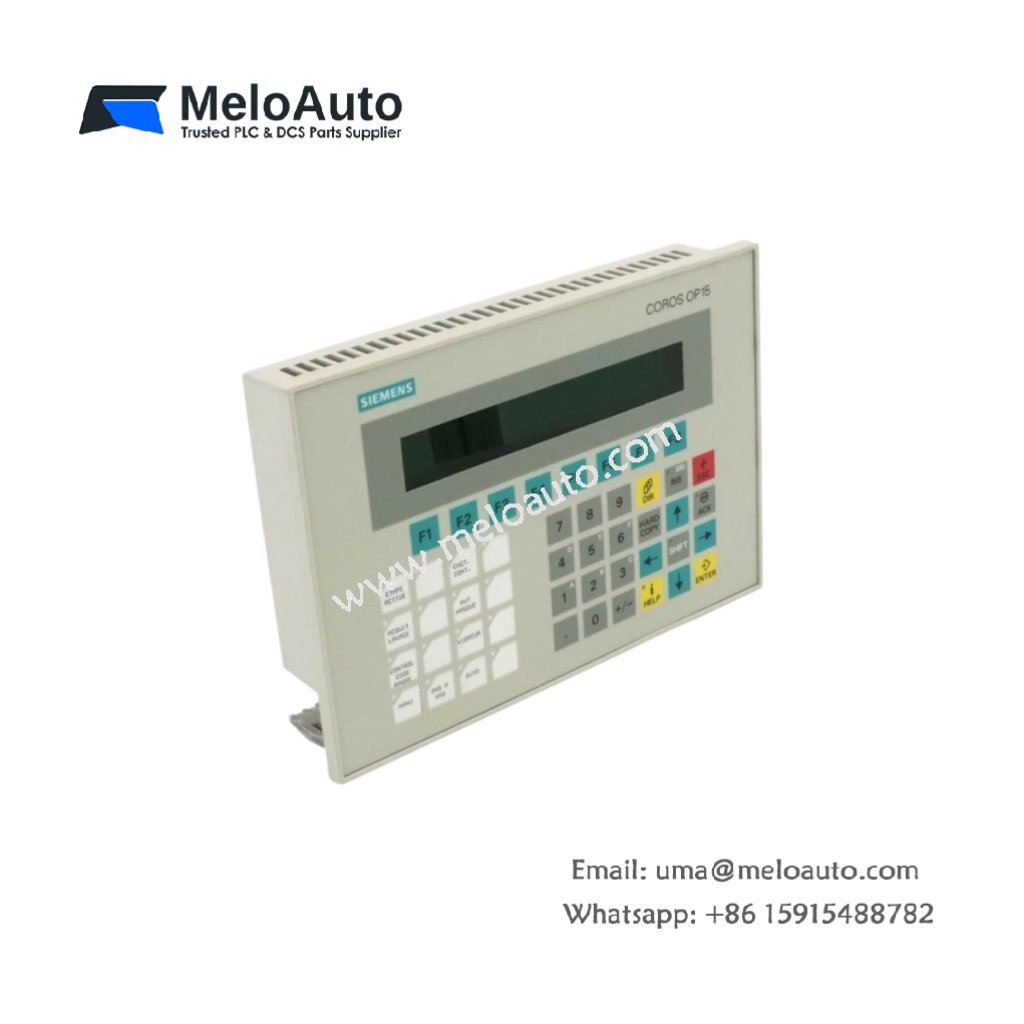

The Siemens 6AV3515-1EK32-1AA0 operator panel provides a user-friendly interface for monitoring and controlling industrial automation processes. This unit features a graphical display for clear visualization of system parameters and alarms. It connects directly to SIMATIC controllers via standard communication interfaces. The panel includes tactile keys for reliable operator input.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 6AV3515-1EK32-1AA0 |
| Product Type | Operator Panel |
| Brand | Siemens |
| Category | HMI Operator Panels |
| Display Type | Graphical LCD |
| Display Size | 5.7 inches |
| Resolution | 320 x 240 pixels |
| Input Method | Tactile function keys |
| Communication Interface | RS-232, RS-422, RS-485 |
| Compatibility | SIMATIC S5, S7 |
| Power Supply | 24V DC |
| Weight | Approximately 0.70 kg |
| Dimensions | 200 mm x 160 mm x 50 mm |
| Operating Temperature | 0°C to 50°C |
| Protection Class | IP65 (front panel) |
Key Features and Benefits
Intuitive Operator Interface
The 6AV3515-1EK32-1AA0 offers clear process visualization through its 5.7-inch graphical display. Operators can monitor real-time data and system status at a glance. This visibility enables quick decision-making and efficient plant management.
Reliable Input Control
This panel features durable tactile keys that provide positive feedback for each press. The keypad layout simplifies navigation through menus and parameter adjustments. Operators benefit from responsive and error-free data entry.
Flexible Communication Support
The unit supports multiple serial interfaces including RS-232, RS-422, and RS-485. This versatility ensures compatibility with various SIMATIC controllers. Users can integrate the panel into existing systems without extensive modifications.
Application and Use Cases
The Siemens 6AV3515-1EK32-1AA0 suits machine control, process monitoring, and production line supervision. It also serves as a local interface for equipment startup and troubleshooting. Maintenance teams will find this panel useful for operator access and system diagnostics.
