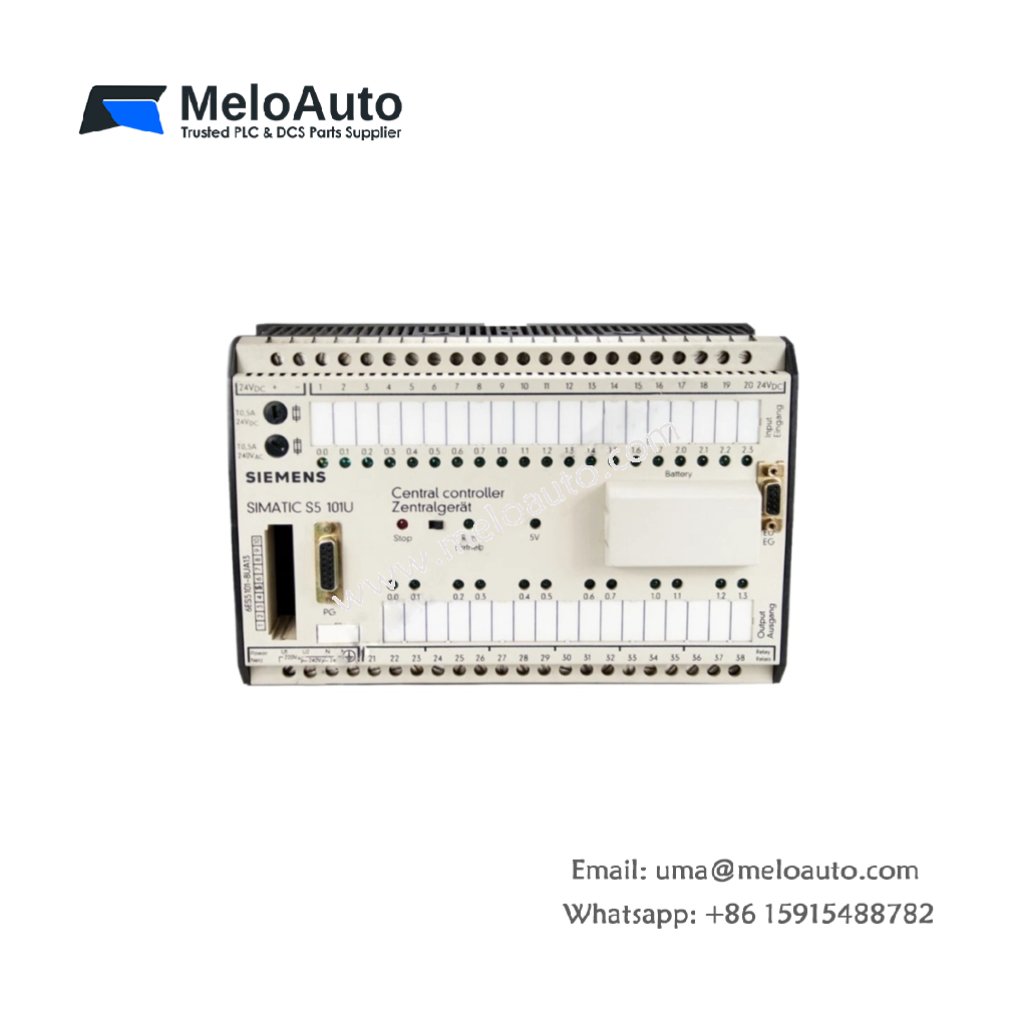

Siemens 6ES5101-8UA13 Central Controller

Product Overview

The Siemens 6ES5101-8UA13 central controller acts as the core processing unit for SIMATIC S5 automation systems. This module handles program execution, I/O management, and communication tasks for connected peripheral devices. It fits standard S5 rack systems. The controller provides the computational power necessary for mid-range industrial applications.

Technical Specifications

Parameter	Specification
Model Number	6ES5101-8UA13
Product Type	Central Controller (CPU)
Brand	Siemens
Category	PLC CPUs
Compatibility	SIMATIC S5 Rack Systems
Memory Capacity	20 KB
Memory Type	RAM
Weight	Approximately 0.50 kg
Dimensions	233 mm x 25 mm x 158 mm (H x W x D)
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
I/O Capacity	Up to 512 digital points

Key Features and Benefits

Centralized Process Control
The 6ES5101-8UA13 provides comprehensive execution of user-defined logic and control algorithms. It scans inputs, processes the program, and updates outputs in real time. This cyclic operation ensures deterministic and reliable machine behavior.

Ample Memory for Mid-Size Applications
This central controller offers 20 KB of RAM for user programs and data blocks. This capacity supports moderately complex automation tasks. Users can store multiple program blocks and data structures.

Rugged Industrial Design
The controller withstands the demands of factory floor environments. Its robust construction ensures reliable operation within the 0°C to 60°C range. This reliability translates into consistent production output.

Application and Use Cases

The Siemens 6ES5101-8UA13 suits packaging lines, material handling systems, and simple assembly processes. It provides centralized intelligence for both standalone machines and networked production cells. Maintenance teams will find this controller a practical spare for existing S5 installations.
