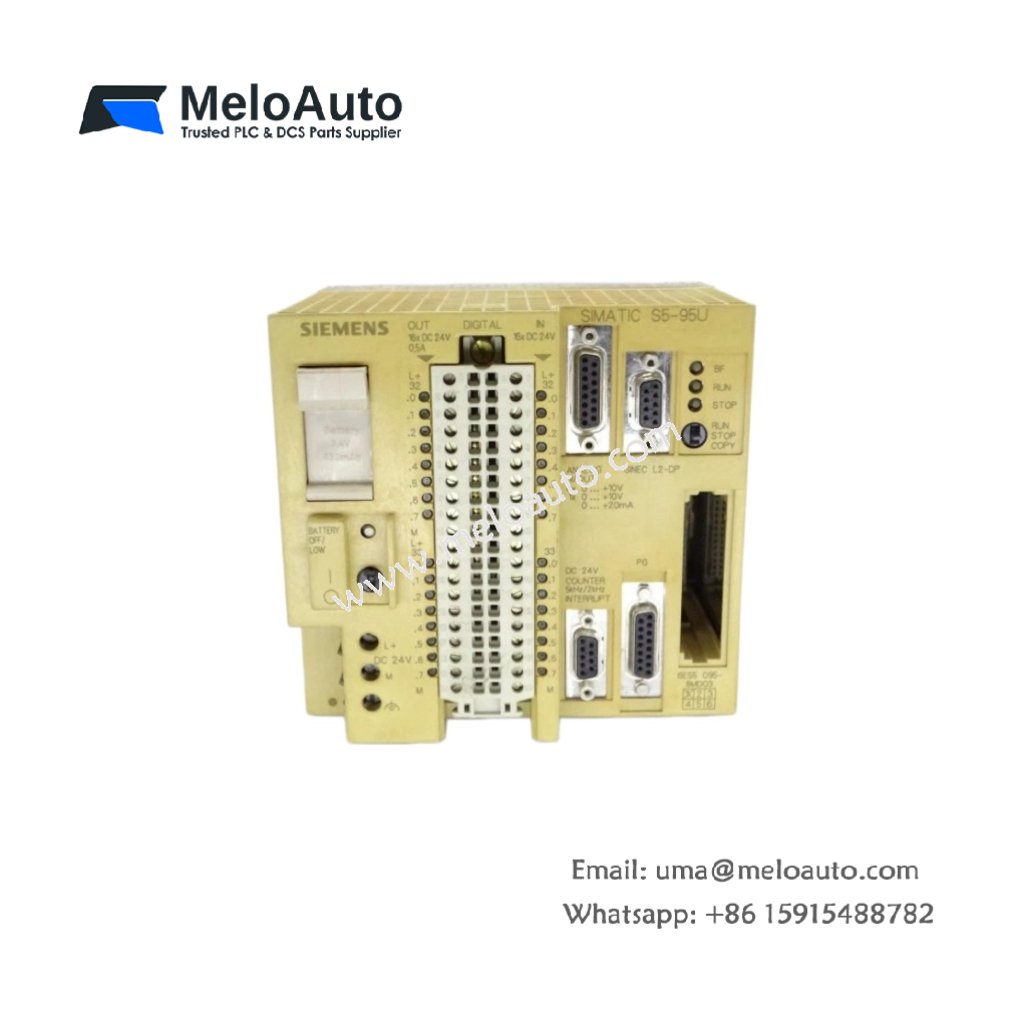

Siemens 6ES5095-8MD03 | SIMATIC S5-95U PLC Module

Technical Overview of the PLC Module

The Siemens 6ES5095-8MD03 functions as a compact PLC module for the SIMATIC S5-95U family. This module integrates CPU, I/O, and communication interfaces into a single unit. It handles small to medium-scale automation tasks with reliable precision. The design reduces cabinet space requirements and simplifies system configuration.

Key Technical Specifications

This section lists the precise parameters for the Siemens 6ES5095-8MD03 PLC module. Use these figures when planning your automation system.

Parameter	Specification
Part Number	6ES5095-8MD03
Type	PLC Module / Compact Controller
Product Family	SIMATIC S5-95U
User Memory	16 Kbytes (RAM)
Digital I/O	16 Inputs / 16 Outputs (integrated)
Analog I/O	4 Inputs / 2 Outputs (integrated)
Programming Languages	Ladder Logic, Statement List, CSF
Communication Ports	1x RS232 (PG), 1x RS485 (network)
Real-time Clock	Integrated with battery backup
Operating Voltage	24V DC
Dimensions (W x H x D)	Approx. 180 x 110 x 80 mm
Weight	Approx. 1.5 kg
Compatibility	SIMATIC S5 expansion I/O modules

Application and System Integration

This compact PLC module mounts directly on DIN rails in control cabinets. It handles standalone automation tasks without requiring separate I/O racks. The Siemens 6ES5095-8MD03 offers 16 built-in digital inputs and outputs. Its integrated analog channels support process signal monitoring. Consequently, the module simplifies small-machine automation projects.

Reliability and Performance Features

The integrated design eliminates backplane connections and reduces potential failure points. This module executes programs efficiently for time-critical applications. Its compact footprint saves valuable panel space. Engineers select the Siemens 6ES5095-8MD03 for cost-effective control in smaller installations.
