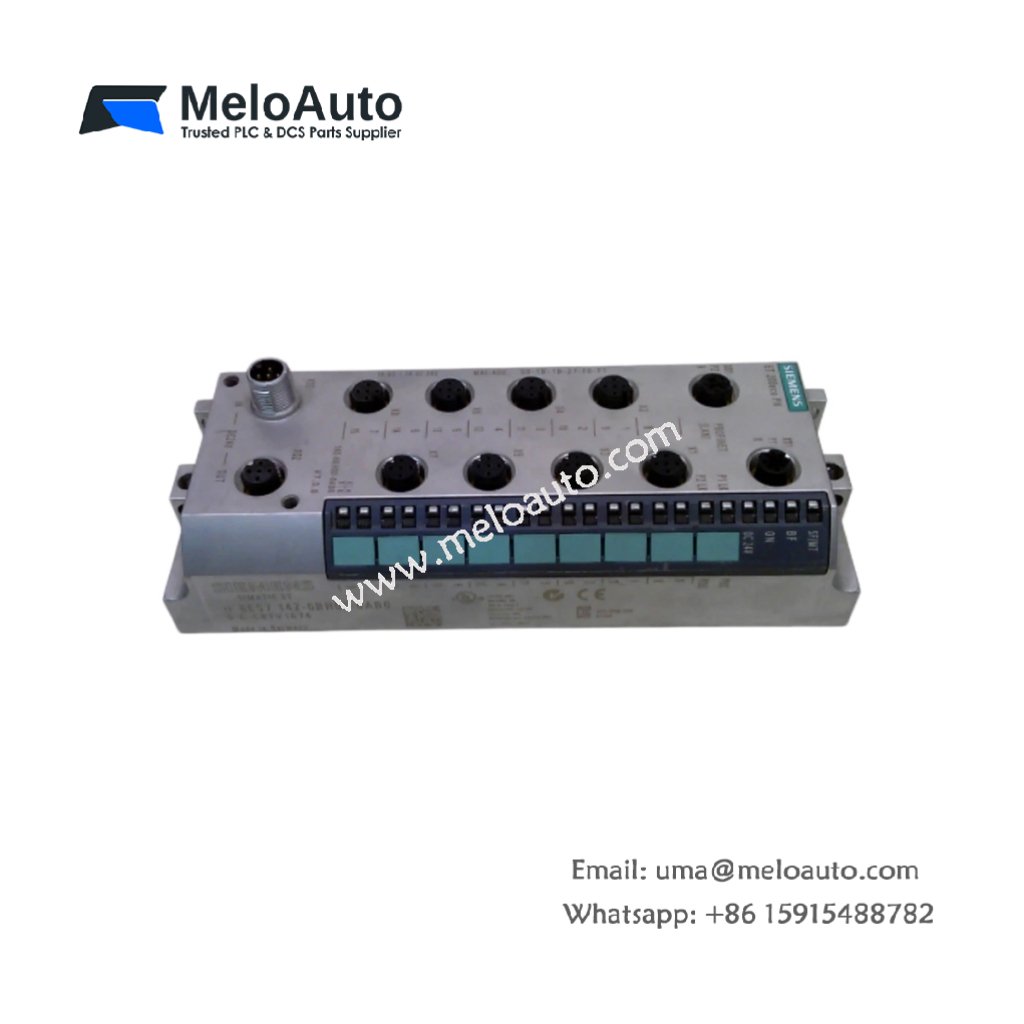

Siemens 6ES7142-6BH00-0AB0 ET 200ECO PN Output Module

Rugged On/Off Control for PROFINET Networks

The Siemens 6ES7142-6BH00-0AB0 is a digital output module for the SIMATIC ET 200ECO PN distributed I/O system. This module provides eight digital outputs for controlling actuators directly via PROFINET. It features a compact and robust plastic housing with IP65/IP67 protection. The module drives standard 24 VDC loads with a maximum current per channel of 2 A. It supports high-speed output switching for demanding automation applications. Additionally, the module has a wide operating temperature range from -25°C to +55°C.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Product Type	Digital Output Module
Part Number	6ES7142-6BH00-0AB0
System	SIMATIC ET 200ECO PN
Communication Protocol	PROFINET IO
Number of Outputs	8
Output Type	24 VDC, high-side switching
Output Current	2.0 A per channel
Protection Class	IP65 / IP67
Housing Material	Plastic
Dimensions	80 x 80 x 30 mm (approx.)
Weight	Approx. 0.15 kg
Operating Temperature	-25°C to +55°C
Certification	CE, UL, cULus

Robust Construction for Harsh Environments

The Siemens 6ES7142-6BH00-0AB0 offers comprehensive diagnostic capabilities including short-circuit and overload detection. The module also supports wire-break monitoring for each output channel. It provides seamless integration into PROFINET networks with easy configuration. The IP65/67 rating allows direct mounting on machines and outdoor applications. This module is a reliable choice for demanding manufacturing and process industries.

Integration and Application Flexibility

The Siemens 6ES7142-6BH00-0AB0 is suitable for conveyor systems, packaging machinery and valve control. The module also integrates seamlessly with SIMATIC PCS 7 and TIA Portal environments. The outputs can handle solenoid valves, contactors and indicator lamps directly. Its compact design saves space in control cabinets and field panels.
