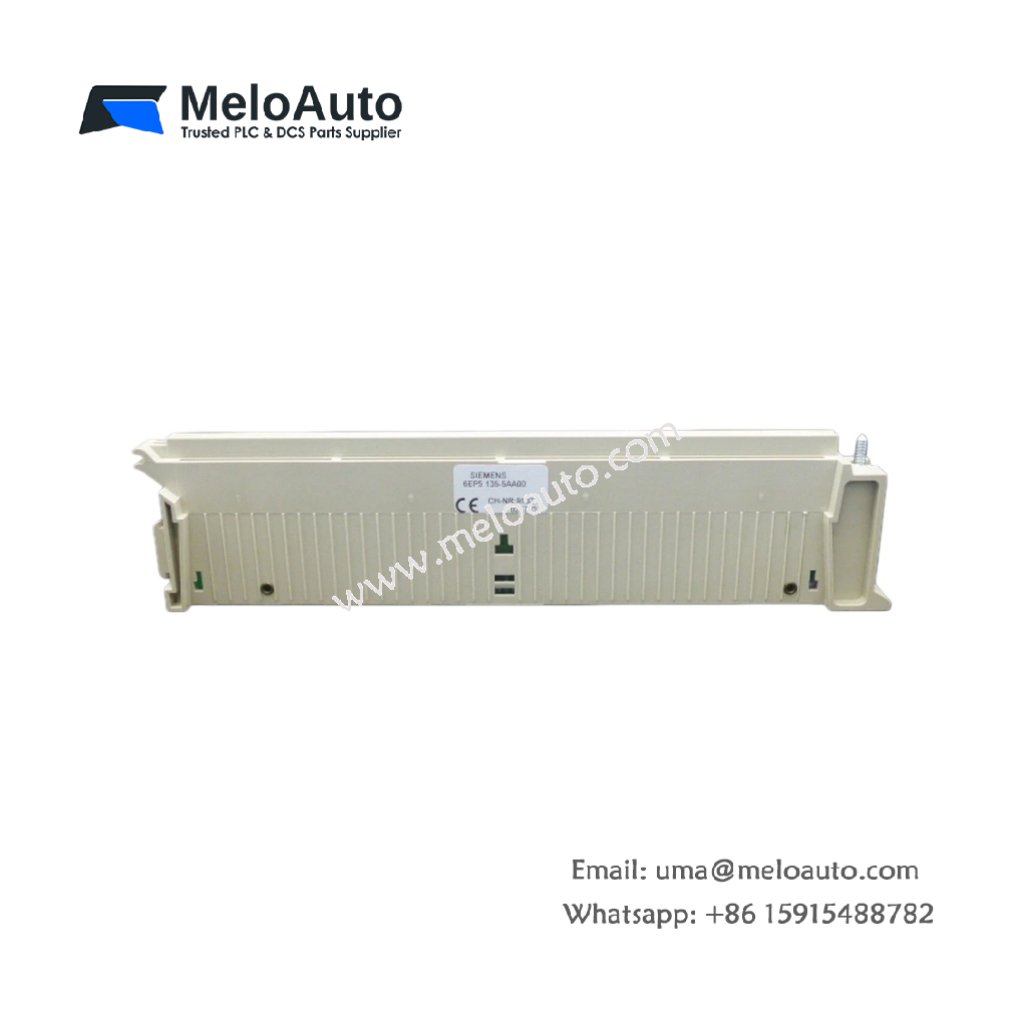

Siemens 6EP5135-5AA00 Front Connector

Technical Overview

The Siemens 6EP5135-5AA00 is a front connector module specifically designed for the SIMATIC S5-135U and S5-155U programmable controller series . This unit provides a reliable interface for connecting field wiring to I/O modules within the automation system. It features a board for a 50-pin IDC connector, enabling secure and organized cable management. This front connector works with the 6ES5497-4UA12 front connector, ensuring compatibility with the S5 platform . The module simplifies system wiring and reduces installation time.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6EP5135-5AA00
Product Type	Front Connector Module
System Compatibility	SIMATIC S5-135U, S5-155U
Connector Type	50-pin IDC connector
Associated Front Connector	6ES5497-4UA12
Application	Connects field wiring to I/O modules
Product Phase	Discontinued (End since: 2020-10-01)
Country of Origin	Germany

Key Features

S5-135U/155U Compatibility – This module integrates seamlessly with the SIMATIC S5-135U and S5-155U systems, ensuring reliable connectivity.

50-Pin IDC Connector – The board supports a 50-pin IDC connector, providing a secure and organized wiring solution.

Simplified Wiring – The front connector design streamlines field wiring and reduces installation time.

Proven Reliability – As part of the Siemens S5 family, this module delivers dependable performance in industrial automation.

Applications

The Siemens 6EP5135-5AA00 is ideal for industrial automation systems using the SIMATIC S5-135U and S5-155U platforms. It is commonly used in manufacturing, process control, and legacy system maintenance.
