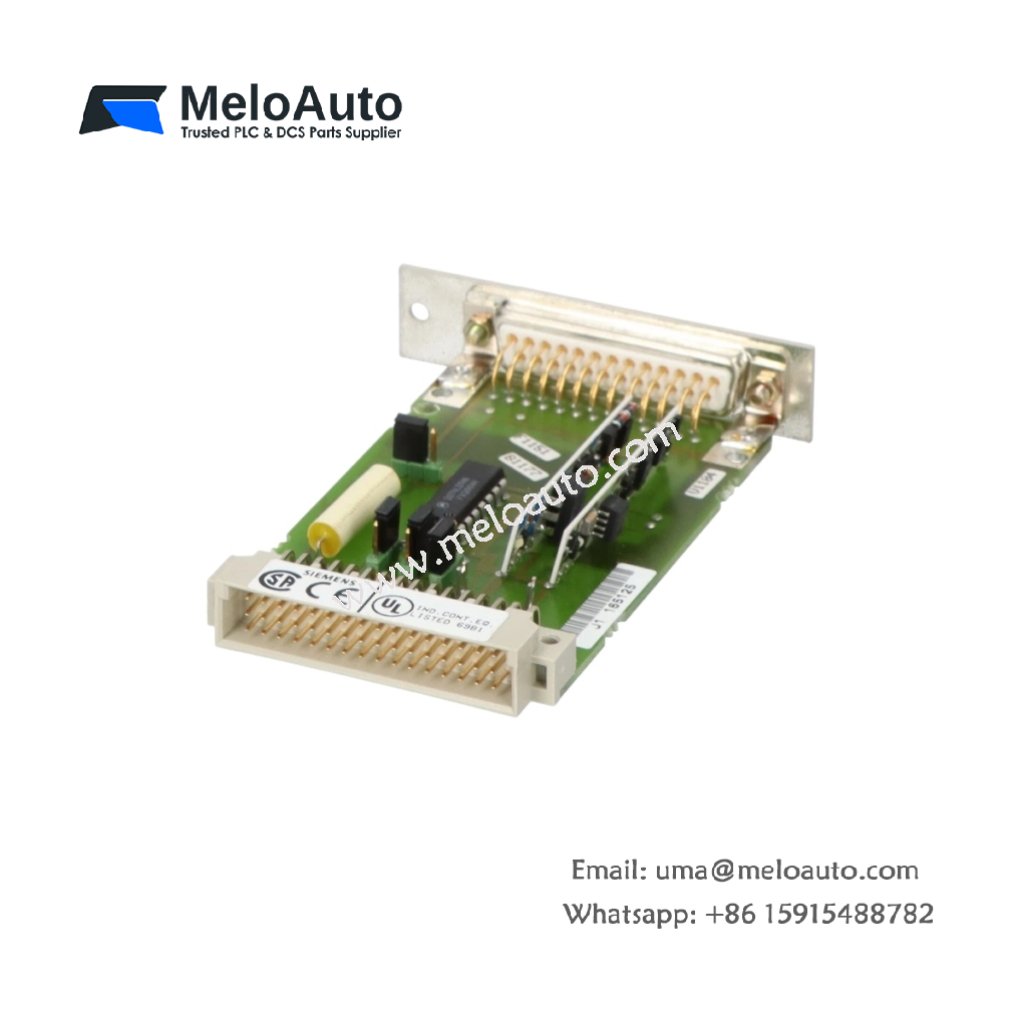

Siemens 6ES5752-0LA12 Interface Module

Technical Overview

The Siemens 6ES5752-0LA12 is an interface module specifically designed to connect the SIMATIC S5 programmable controller to industrial local area networks (LANs). This unit functions as a key communication link within the SINEC L2 network, enabling data exchange between the S5 PLC and other automation devices . It supports the SINEC L2-DP protocol, ensuring compatibility with PROFIBUS-based systems for efficient process control . The module facilitates data transfer rates up to 12 Mbps, providing fast and reliable communication for demanding automation applications .

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6ES5752-0LA12
Product Type	Interface Module / Communication Processor
System Compatibility	SIMATIC S5
Network Protocol	SINEC L2-DP (PROFIBUS compatible)
Transmission Speed	Up to 12 Mbps
Interface	RS-485 (SINEC L2 bus)
Communication Modes	Peer-to-peer, master-slave
Node Address Setting	DIP switch
Status Indication	LED indicators
Power Consumption	8 W (typical)
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% RH (non-condensing)
Certifications	CE, UL, CSA
Country of Origin	Germany

Key Features

High-Speed Communication – The module supports data transfer rates up to 12 Mbps, ensuring fast and reliable data exchange.

SINEC L2-DP Compatibility – This interface works seamlessly with PROFIBUS-based networks, enabling integration into modern automation systems.

Flexible Network Topologies – Users can configure the module for peer-to-peer or master-slave communication modes.

Easy Configuration – A DIP switch allows straightforward setting of node addresses.

Diagnostic LEDs – Status indicators provide immediate feedback on communication and module health.

Applications

The Siemens 6ES5752-0LA12 suits industrial automation applications requiring high-speed network communication. It excels in distributed control systems, factory automation, and process control environments.
