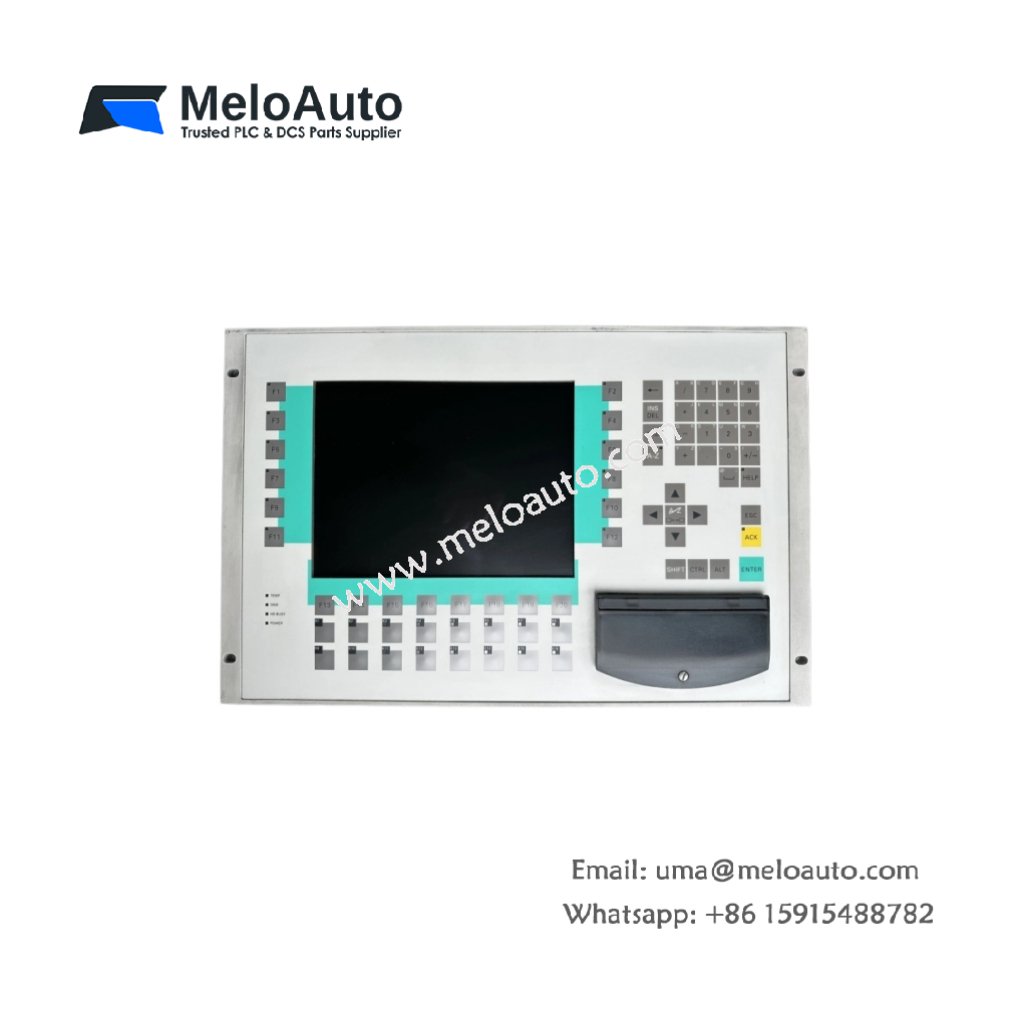

Siemens 6AV6541-0AA05-1BB0 | SIMATIC HMI Operator Panel

Technical Overview of the Operator Panel

The Siemens 6AV6541-0AA05-1BB0 provides a compact operator panel for SIMATIC HMI visualization tasks. This panel enables efficient machine control and process monitoring through its touch screen interface. It connects seamlessly to SIMATIC controllers for real-time data exchange. The design suits demanding industrial environments with robust construction and reliable performance.

Key Technical Specifications

This section details the exact parameters for the Siemens 6AV6541-0AA05-1BB0 operator panel. Use these figures to ensure compatibility with your automation system.

Parameter	Specification
Part Number	6AV6541-0AA05-1BB0
Type	Operator Panel
Product Family	SIMATIC HMI
Display Type	TFT Color LCD with Touch
Display Size	Approx. 5.7 inches
Resolution	320 x 240 Pixels
Input Method	Resistive Touch Screen
Communication	RS232 / RS485, MPI, PROFIBUS DP
Operating Voltage	24V DC
Dimensions (W x H x D)	Approx. 212 x 156 x 50 mm
Weight	Approx. 1.2 kg
Compatibility	SIMATIC S7 and S5 systems

Application and System Integration

This operator panel connects to the PLC via MPI or PROFIBUS DP. It displays machine status, alarms, and production data in clear color graphics. The Siemens 6AV6541-0AA05-1BB0 allows operators to adjust parameters directly through its touch screen. The integrated communication ports support multiple protocol standards for flexible integration.

Reliability and Performance Features

The TFT display ensures excellent visibility under diverse lighting conditions. Its resistive touch screen resists dust and moisture ingress effectively. The panel operates reliably across a wide temperature range. Engineers choose the Siemens for intuitive operation and durable design in industrial applications.
