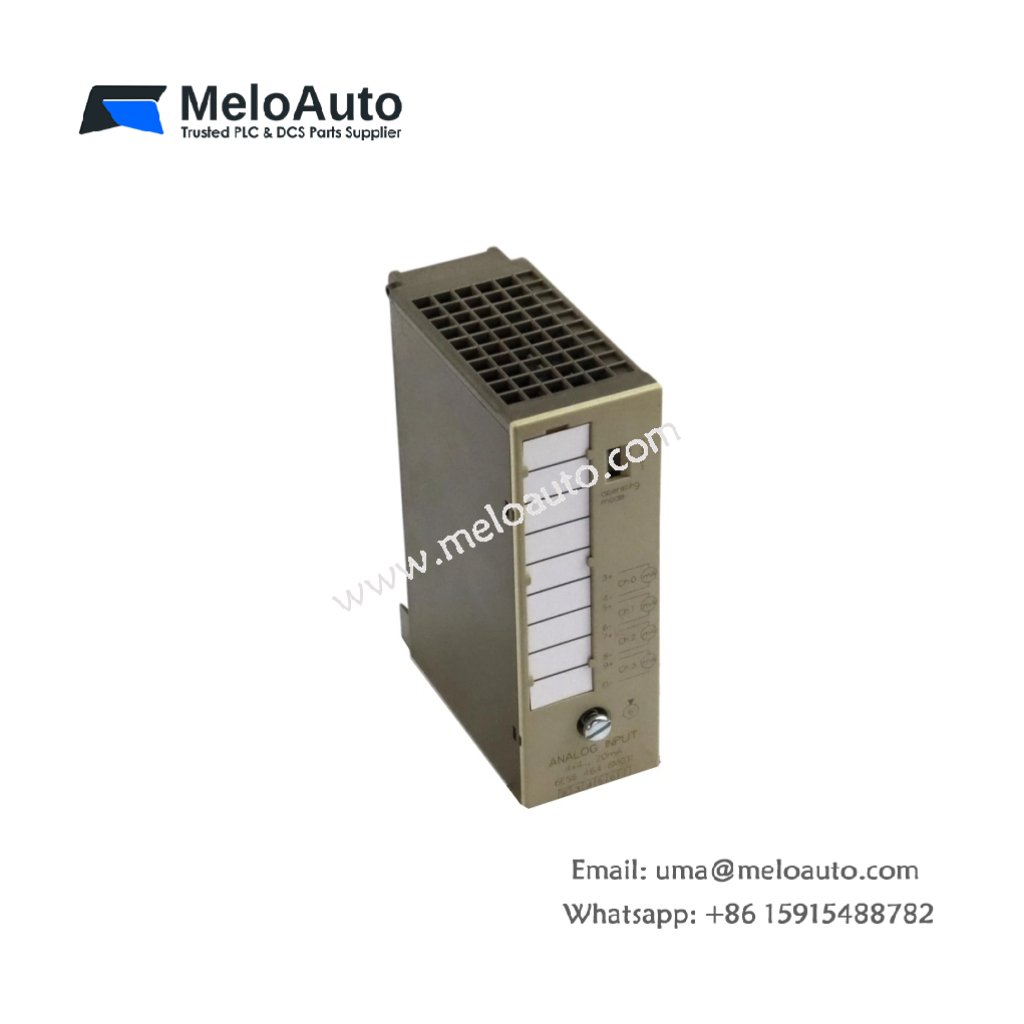

Siemens 6ES5464-8MG11 | Analog Input Module 12-Bit

Technical Overview of the Analog Input Module

The Siemens 6ES5464-8MG11 functions as an analog input module for the SIMATIC S5 PLC family. This module converts analog field signals into digital values for CPU processing. It handles multiple input types from sensors and transmitters in industrial processes. The design supports both voltage and current signal configurations.

Key Technical Specifications

This section details the exact parameters for the Siemens 6ES5464-8MG11 analog input module. Use these figures to verify compatibility with your field devices.

Parameter	Specification
Part Number	6ES5464-8MG11
Type	Analog Input Module
Product Family	SIMATIC S5
Number of Inputs	8 Analog Inputs
Input Signal Range	0-10V / ±10V / 0-20mA / 4-20mA
Resolution	12 bits
Accuracy	±0.5% of full scale
Conversion Time	Approx. 30 ms per channel
Isolation	Galvanic isolation between channels and backplane
Dimensions (W x H x D)	Approx. 250 x 25 x 180 mm
Weight	Approx. 1.0 kg
Compatibility	SIMATIC S5-115U, 135U, and 155U systems

Application and System Integration

This analog input module connects directly to the S5 backplane bus. It reads signals from temperature, pressure, and flow sensors. The Siemens 6ES5464-8MG11 supports field-selectable voltage or current input modes. Each channel offers 12-bit resolution for accurate process monitoring. Consequently, operators can track critical process variables with confidence.

Reliability and Performance Characteristics

The galvanic isolation protects the CPU from electrical noise on field wiring. This feature ensures stable operation in industrial environments. The module’s robust construction withstands temperature variations and vibration. Engineers trust the Siemens 6ES5464-8MG11 for dependable analog signal acquisition.
