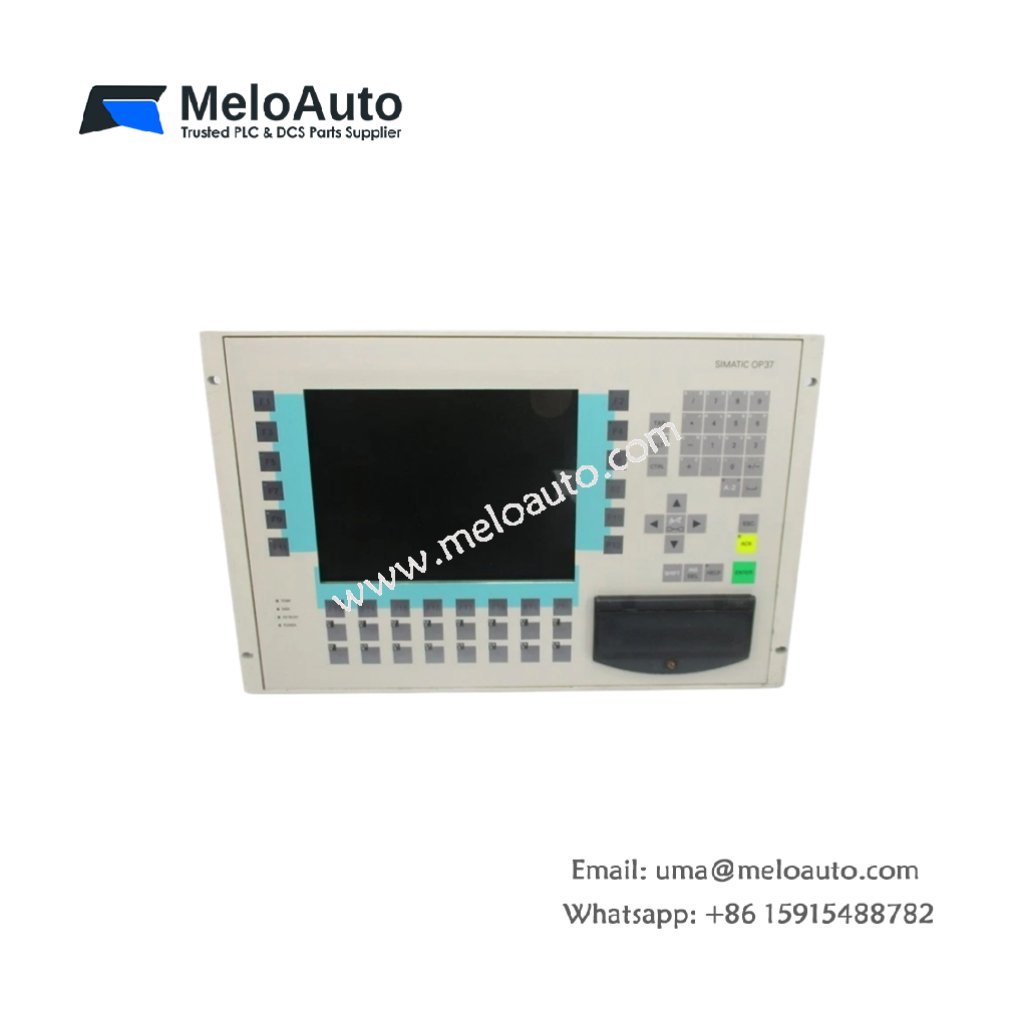

Siemens 6AV3637-1ML00-0BX0 Operator Panel

Technical Overview

The Siemens 6AV3637-1ML00-0BX0 is an advanced operator panel designed for industrial automation systems, providing a robust human-machine interface for monitoring and controlling complex processes. This unit features a high-contrast graphical display that presents process data, alarms, and system status in an intuitive format. It includes a membrane keypad with function keys for operator input and menu navigation. The panel communicates with the controller via serial or MPI interfaces, ensuring seamless integration into existing automation networks. Its rugged construction withstands demanding factory conditions, delivering reliable performance over extended periods. The panel also includes diagnostic LEDs for power and communication status.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6AV3637-1ML00-0BX0
Product Type	Operator Panel / HMI
Display Type	Graphical LCD
Display Format	Alphanumeric and graphic symbols
Keypad Type	Membrane with function keys
Communication Interface	Serial / MPI
Power Supply	24 VDC
Power Consumption	8 W (typical)
Dimensions	170 x 120 x 55 mm
Weight	0.5 kg
Operating Temperature	0°C to +50°C
Storage Temperature	-20°C to +70°C
Humidity	5% to 95% RH (non-condensing)
Protection Rating	IP40 (front panel)
Certifications	CE, UL, CSA
Country of Origin	Germany

Key Features

High-Contrast Graphical Display – The panel presents process data, alarms, and system status in a clear format.

Intuitive Operator Interface – Function keys and membrane keypad enable straightforward navigation and data entry.

Flexible Communication Options – Serial and MPI interfaces ensure compatibility with various controllers.

Robust Industrial Design – The rugged construction withstands vibrations, dust, and temperature variations.

Diagnostic LEDs – Status indicators provide immediate feedback for power and communication health.

Applications

The Siemens 6AV3637-1ML00-0BX0 excels in machine-level control, process monitoring, and system diagnostics. It is ideal for manufacturing, packaging, and material handling systems requiring a reliable operator interface.
