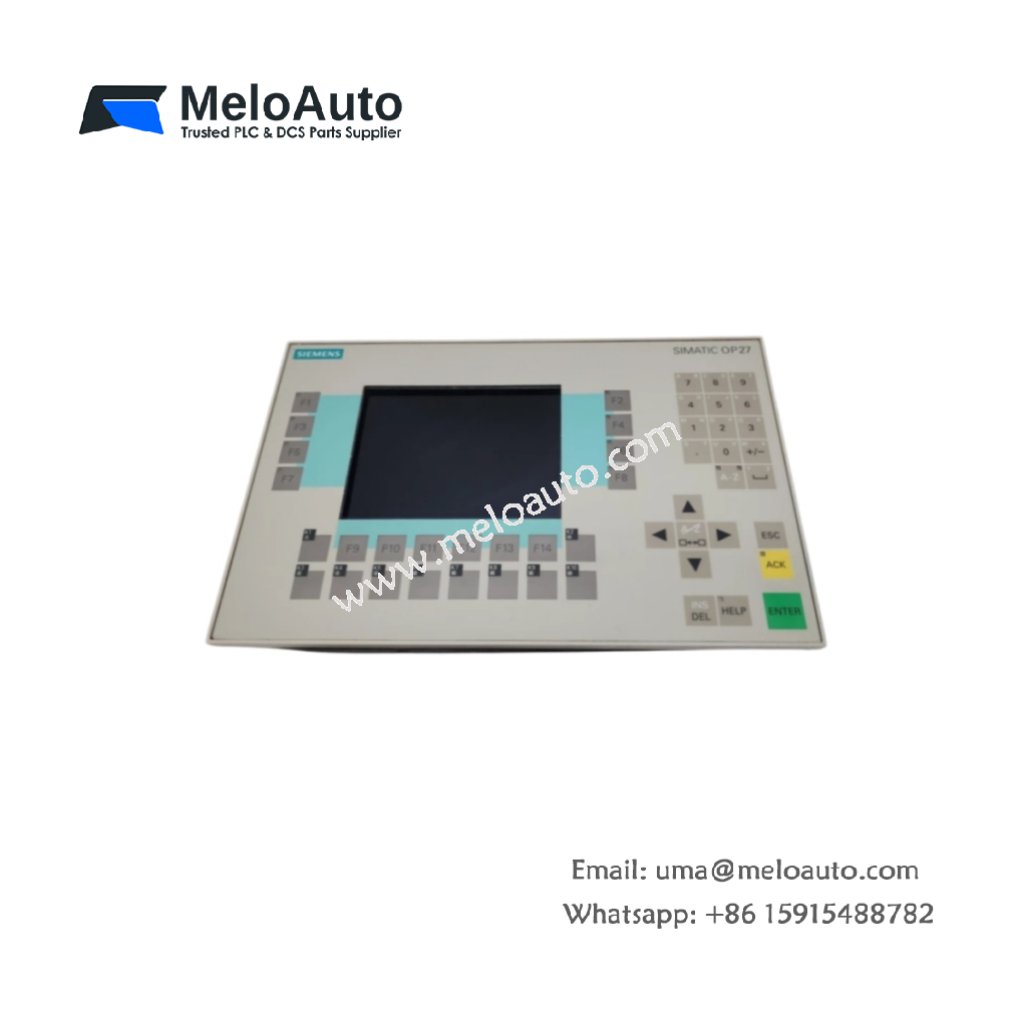

Siemens 6AV3627-1LK00-1AX0 Operator Panel

This Siemens operator panel offers a user-friendly interface for machine and process control. The Siemens 6AV3627-1LK00-1AX0 features a high-contrast LCD display for clear visual feedback. Its membrane keypad provides tactile response for reliable data entry operations. This panel supports direct connection to SIMATIC S5 and S7 control systems. The Siemens 6AV3627-1LK00-1AX0 enables operators to monitor parameters and modify setpoints efficiently. Its compact design fits seamlessly into standard control desk cutouts.

Display Characteristics and Physical Dimensions

This panel incorporates a 240 x 64 pixel graphic LCD screen. The display area measures 160 mm by 42 mm for comfortable viewing. Its overall dimensions reach 310 mm in width and 150 mm in height. The depth measures 75 mm behind the mounting surface. This unit weighs approximately 1.8 kilograms for stable mounting. The Siemens 6AV3627-1LK00-1AX0 includes 24 tactile membrane keys for operator input. Eight programmable function keys sit along the bottom row for custom commands.

Electrical Specifications and Interface Options

This panel draws a nominal current of 200 mA from a 24 V DC supply. Peak inrush current reaches 2 A for approximately 50 milliseconds. The device consumes about 5 W of power during normal operation. A built-in real-time clock maintains accurate time for event logging. The panel provides a 9-pin D-sub connector for RS-232 communication. A second 15-pin D-sub port handles RS-485/422 connections for longer distances. The Siemens 6AV3627-1LK00-1AX0 includes a 512 KB internal memory for application storage. This memory retains data using a lithium battery with a 5-year lifespan.

Environmental Conditions and Mounting Guidelines

Operating temperatures range from 0°C to 45°C for consistent performance. Storage temperatures extend from -20°C to 60°C without damage. Relative humidity tolerance reaches 85% with no condensation formation. The front panel meets IP65 protection against dust and water jets. The rear housing carries an IP20 rating for dry indoor environments. Mount this panel using the supplied clips for a secure fit.

Detailed Specification Table

Parameter	Specification
Display Type	240 x 64 pixel graphic LCD
Display Area (W x H)	160 mm x 42 mm
Dimensions (W x H x D)	310 mm x 150 mm x 75 mm
Weight	Approx. 1.8 kg
Number of Keys	24 (membrane), 8 programmable
Supply Voltage	24 V DC
Current Consumption	200 mA (nominal)
Power Consumption	5 W
Communication Ports	RS-232 (9-pin), RS-485/422 (15-pin)
Internal Memory	512 KB
Backup Battery Life	5 years
Operating Temperature	0°C to 45°C
Front Panel Protection	IP65
Rear Panel Protection	IP20

Application and Installation Advice

Install this panel in a clean, vibration-free location on the machine. Cut a 300 mm x 140 mm opening in the control desk panel. Insert the unit from the front and secure it using the provided brackets. Connect the communication cables before applying power to the unit. The Siemens 6AV3627-1LK00-1AX0 supports configuration via the ProTool software package. Use the function keys for frequently performed tasks like start and stop. Regularly clean the membrane surface with a soft, damp cloth. Replace the backup battery every four years to prevent data loss.
