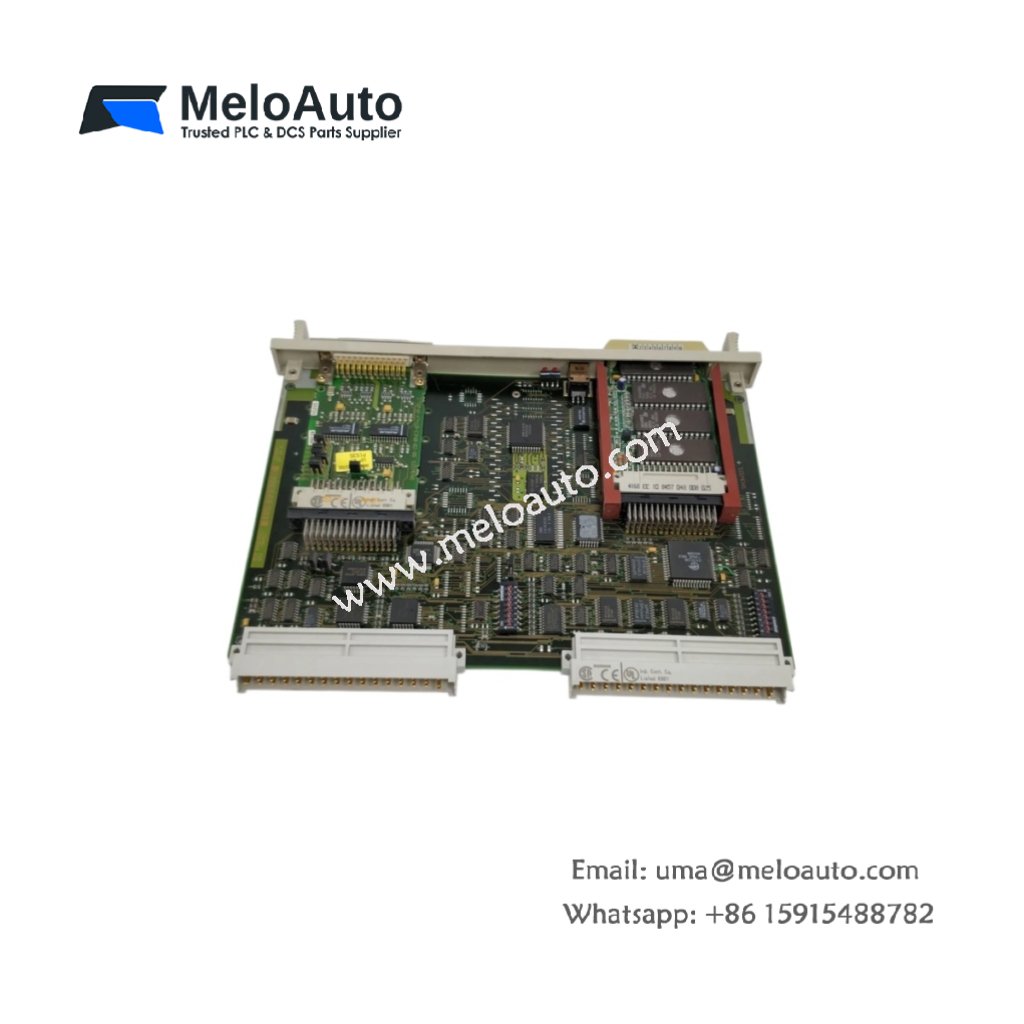

Siemens 6ES5524-3UA15 Communications Processor

Dedicated Communication Handling for S5 Systems

The Siemens 6ES5524-3UA15 communications processor offloads data exchange tasks from the main CPU. This module manages all peer-to-peer communication, freeing the central processor for control tasks. Large automation networks require dedicated communication handling, and this unit delivers that capability efficiently.

Processing Power and Communication Capabilities

This communications processor features an 8-bit microcontroller running at 24 MHz for protocol handling. The module integrates 64 kilobytes of RAM for message buffering and data preprocessing. An additional 32 kilobytes of EPROM stores firmware and communication profiles. The processor handles up to 256 concurrent communication sessions without degrading system performance.

Protocol Support and Data Formatting

This communications processor supports multiple industrial protocols, including 3964R, RK512, and ASCII. The module automatically handles message framing, error checking, and retransmission requests. Users can configure protocol parameters through the STEP 5 programming software. Additionally, the processor converts between different data formats for seamless system integration.

Dual-Port Design and Independent Operation

The Siemens 6ES5524-3UA15 features two independent communication ports for simultaneous data exchange. Port 1 supports RS-232 connections for programming terminals and printers. Port 2 provides RS-485 or TTY interfaces for multi-drop networks with multiple devices. Each port operates with separate baud rates and protocol settings for maximum flexibility.

Data Buffering and Flow Control

This module stores incoming messages in a 64-kilobyte FIFO buffer to prevent data loss. The buffer handles peak traffic periods without overwhelming the main CPU. Hardware flow control signals manage data flow between the module and connected devices. Moreover, the processor supports XON/XOFF software flow control for legacy equipment compatibility.

Diagnostic Features and Status Monitoring

Four front-panel LEDs indicate power, port activity, error conditions, and buffer status. The module logs all communication errors in an internal 128-entry diagnostic buffer. Users can retrieve these logs through the programming software for troubleshooting. The processor also performs automatic loopback tests during system startup to verify port integrity.

Installation and Configuration Notes

You can install this communications processor in any standard S5 rack slot. The module requires no additional drivers beyond the STEP 5 configuration. Always set the correct station address and baud rate before connecting to the network. For multi-drop configurations, terminate both ends of the bus segment properly. The operating temperature ranges from 0°C to 60°C with standard rack ventilation.
