Advanced Phase Reference Module for Machinery Monitoring Systems

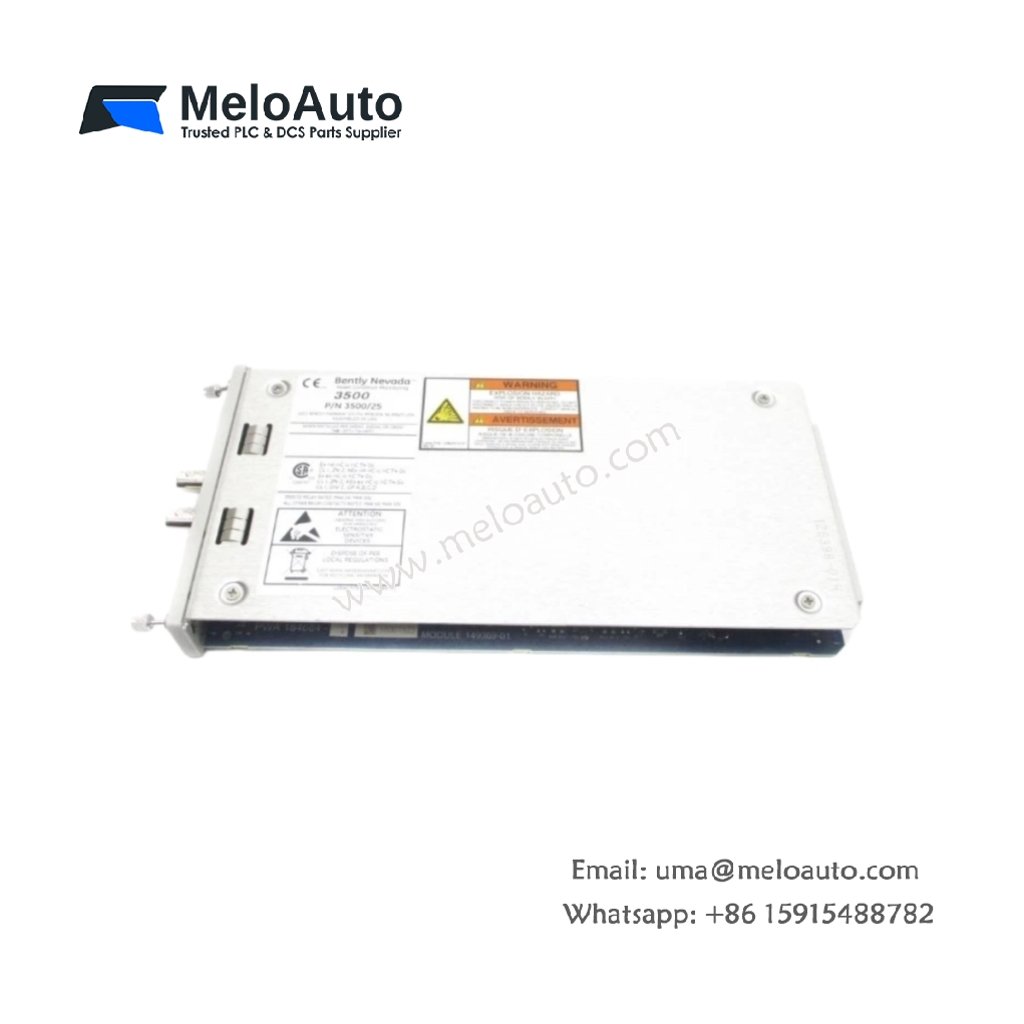

The Bently Nevada 3500/25-01-05-05 Enhanced Keyphasor Module provides accurate phase reference signals for industrial machinery monitoring applications. This module improves rotational speed measurement and timing accuracy within the 3500 protection system. Moreover, it supports reliable machine analysis by synchronizing vibration data with shaft position information.
The 3500/25-01-05-05 module processes Keyphasor signals from compatible sensors and delivers precise rotational reference information. Additionally, its compact rack design allows easy integration into existing 3500 monitoring platforms. The module helps engineers evaluate machinery behavior through accurate phase and speed measurements.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | 3500/25-01-05-05 |
| Brand | Bently Nevada |
| Product Type | Enhanced Keyphasor Module |
| System Platform | Bently Nevada 3500 Machinery Protection System |
| Primary Function | Shaft speed and phase reference measurement |
| Input Channels | 2 Keyphasor input channels |
| Signal Interface | Keyphasor sensor input terminals |
| Communication Interface | 3500 rack backplane interface |
| Measurement Function | Rotational reference and timing synchronization |
| Dimensions | Approximately 241 mm × 24 mm × 241 mm |
| Weight | Approximately 0.45 kg |
| Installation Type | Rack-mounted module |
| Power Supply | 3500 rack power distribution system |
| Energy Storage | No internal energy storage components |
| Component Quantity | 1 enhanced Keyphasor module assembly |
Key Features and Benefits
The 3500/25-01-05-05 module delivers stable phase reference signals for advanced machinery diagnostics. Furthermore, it enhances monitoring accuracy by providing essential timing information for vibration analysis.
The lightweight module design optimizes rack space while maintaining reliable operational performance. In addition, the unit supports efficient maintenance because technicians can replace or configure modules within the existing protection framework.
This Keyphasor solution supports turbines, compressors, pumps, and other rotating machinery applications. Therefore, industrial facilities can improve diagnostic accuracy through synchronized speed measurement and enhanced equipment monitoring.
