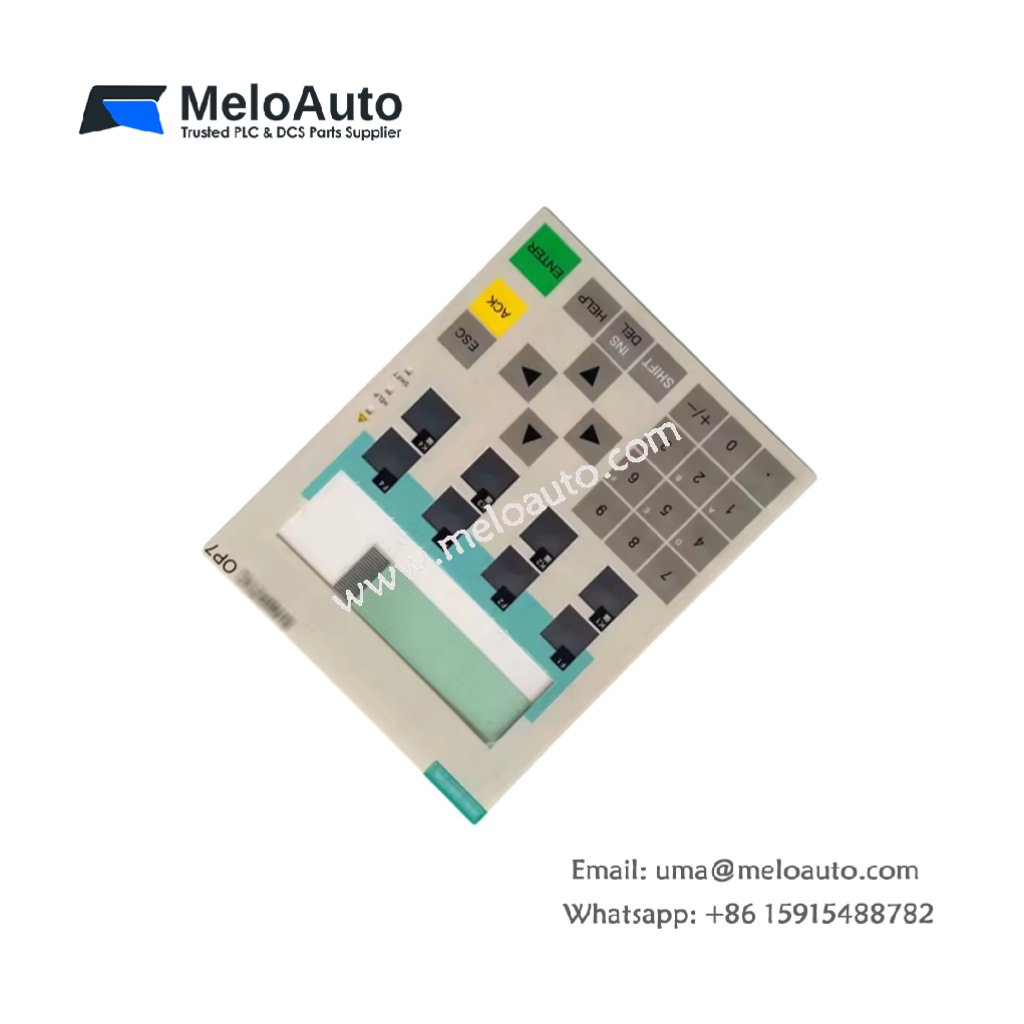

Siemens 6AV3530-1RU31 Operator Panel

This panel offers a compact interface for machine monitoring and parameter adjustment. The Siemens 6AV3530-1RU31 displays process data and accepts operator inputs through membrane keys. It measures 186 mm in width and 144 mm in height. This unit weighs approximately 0.72 kg for panel mounting.

Technical Specifications Table

Parameter	Value
Product Model	Siemens 6AV3530-1RU31
Category	Operator Panel / HMI
Display Type	Monochrome LCD with LED backlight
Display Size	5.1 inches diagonal
Display Resolution	8 lines x 40 characters
Character Size	4.8 mm x 2.4 mm per character
Keys	36 tactile membrane keys
Communication Ports	1 x RS232, 1 x RS422/485
Dimensions (W x H x D)	186 mm x 144 mm x 55 mm
Panel Cutout	172 mm x 130 mm
Weight	0.72 kg
Internal Components	1 x 8-bit CPU, 1 x flash memory, 1 x EEPROM
User Memory	256 KB flash for configuration data
Recipe Memory	2 KB EEPROM (non-volatile)
Energy Storage	1 x 3 V lithium cell for real-time clock
Operating Voltage	24 V DC external supply
Power Consumption	9 W maximum

Internal Architecture and Display Features

This operator panel uses an 8-bit processor for screen management and key scanning. A 5.1-inch monochrome LCD shows eight lines of text with forty characters each. The Siemens 6AV3530-1RU31 includes 36 membrane keys for navigation and numerical entry. Flash memory stores your HMI configuration without needing battery backup. An onboard EEPROM retains recipe data permanently even during power loss. A separate lithium cell maintains the real-time clock for time-stamped events. This cell lasts approximately four years under normal operating conditions.

Installation and Connection Guide

First, cut a 172 mm x 130 mm opening in your cabinet door for mounting. Next, insert the panel from the front and secure it with the four mounting brackets. Then, connect a 24 V DC power supply to the rear terminal block. Link the RS232 port to your PLC or programming PC for configuration. Use ProTool or OP25 configuration software to create your operator screens. The panel communicates with SIMATIC S5, S7, and third-party PLCs via RS422/485. Replace the lithium cell when the low battery warning appears on the display screen.
