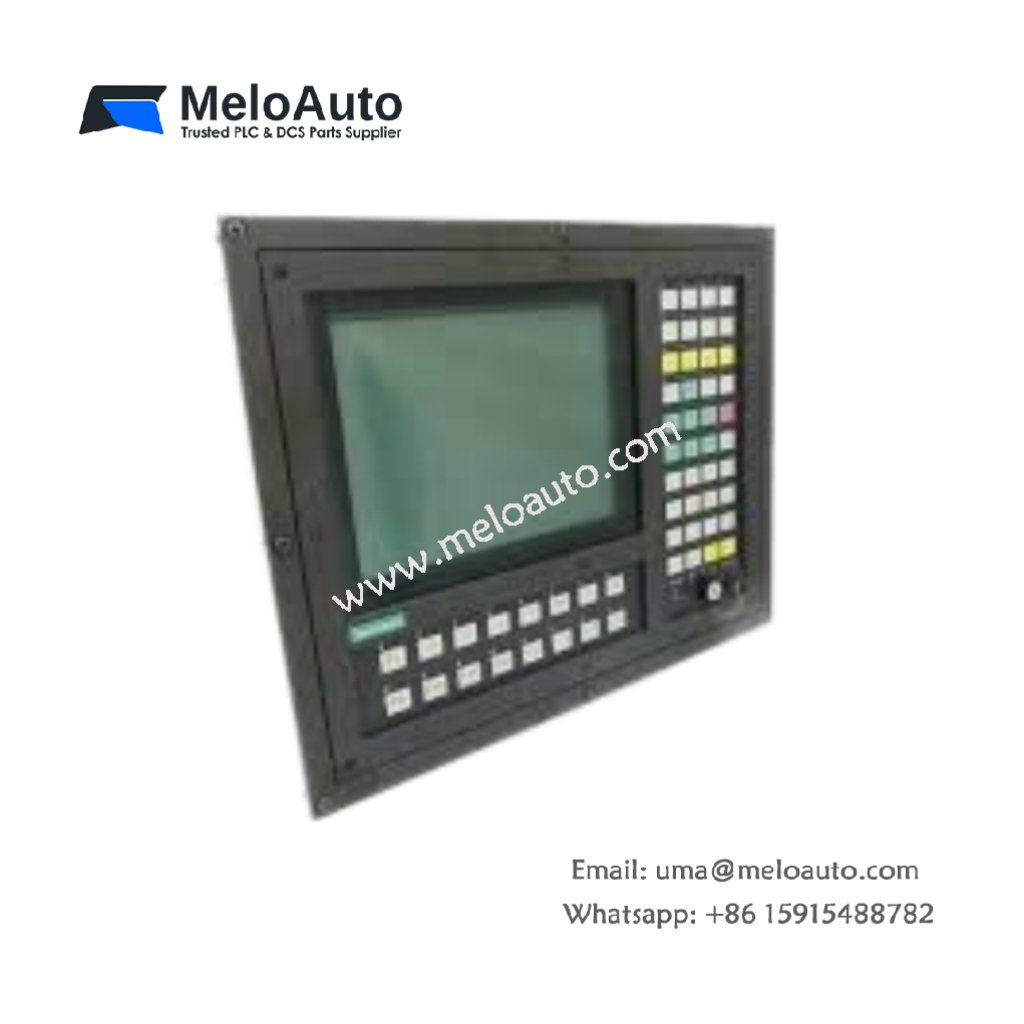

Siemens 6AV3530-1RR32 Operator Panel

The Siemens 6AV3530-1RR32 operator panel provides machine interface functions for SIMATIC S5 systems. This panel displays process data and allows operator commands for industrial equipment. It connects directly to the S5 CPU via the AS511 serial interface. You can use this panel as a direct replacement for older text display units.

Detailed Technical Specifications

The Siemens 6AV3530-1RR32 operator panel measures 172 mm in width. Its height reaches 90 mm across the front face. The total depth goes up to 45 mm including the rear connector. This unit weighs approximately 0.48 kilograms for panel mounting.

Key hardware parameters include:

Complete Model: Siemens 6AV3530-1RR32
Display type: LCD with green LED backlight
Display format: 4 lines x 20 characters per line
Character height: 5 mm for clear visibility
Keypad: 24 tactile membrane keys (8 function keys)
Interface: AS511 serial (TTL level) and RS-232
Connectors: 9-pin SUB-D and 15-pin SUB-D
Power supply: 24 V DC nominal (18-30 V range)
Power consumption: 4 W maximum
Message storage: 16 KB EEPROM (200 messages)
LED indicators: 8 user-configurable status lights
Real-time clock: Yes with battery backup

The Siemens 6AV3530-1RR32 operator panel stores no residual charge after power-off. Therefore, technicians can handle the unit immediately without any delay. The LCD operates reliably from 0°C to +50°C. Moreover, the panel includes contrast adjustment via front-panel keys.

Technical Parameter	Specification
Full Model Number	Siemens 6AV3530-1RR32
Dimensions (WxHxD)	172 mm x 90 mm x 45 mm
Weight	0.48 kg
Display Type	LCD, green LED backlit
Display Format	4 lines x 20 characters
Character Height	5 mm
Keypad	24 keys (8 function keys)
Interfaces	AS511 + RS-232
Connectors	9-pin + 15-pin SUB-D
Power Supply	24 V DC (18-30 V)
Power Consumption	4 W max
Message Memory	16 KB EEPROM (200 msgs)
LED Indicators	8 user-configurable
Real-Time Clock	Yes (battery backed)
Operating Temperature	0°C to +50°C
Humidity Tolerance	5% to 85% non-condensing

Application and Installation

The Siemens 6AV3530-1RR32 operator panel mounts into a standard 172 mm x 90 mm panel cutout. It requires a 4-core cable for connection to the CPU’s AS511 port. This panel displays timer values, counter readings, alarms, and production data. Consequently, operators can monitor and control machine functions without a programming device.

Programming and Operation

This panel uses simple function calls from the S5 program. The Siemens 6AV3530-1RR32 stores pre-defined texts and screen layouts in its internal EEPROM. You can trigger messages using standard system function blocks. Therefore, programming text displays requires minimal code in your existing logic.

Always power down the CPU before connecting or disconnecting this panel. Match the interface cable wiring to the pinout diagram carefully. The unit features a removable terminal block for power wiring. Furthermore, its IP40 membrane keypad resists dust and light splashes.
