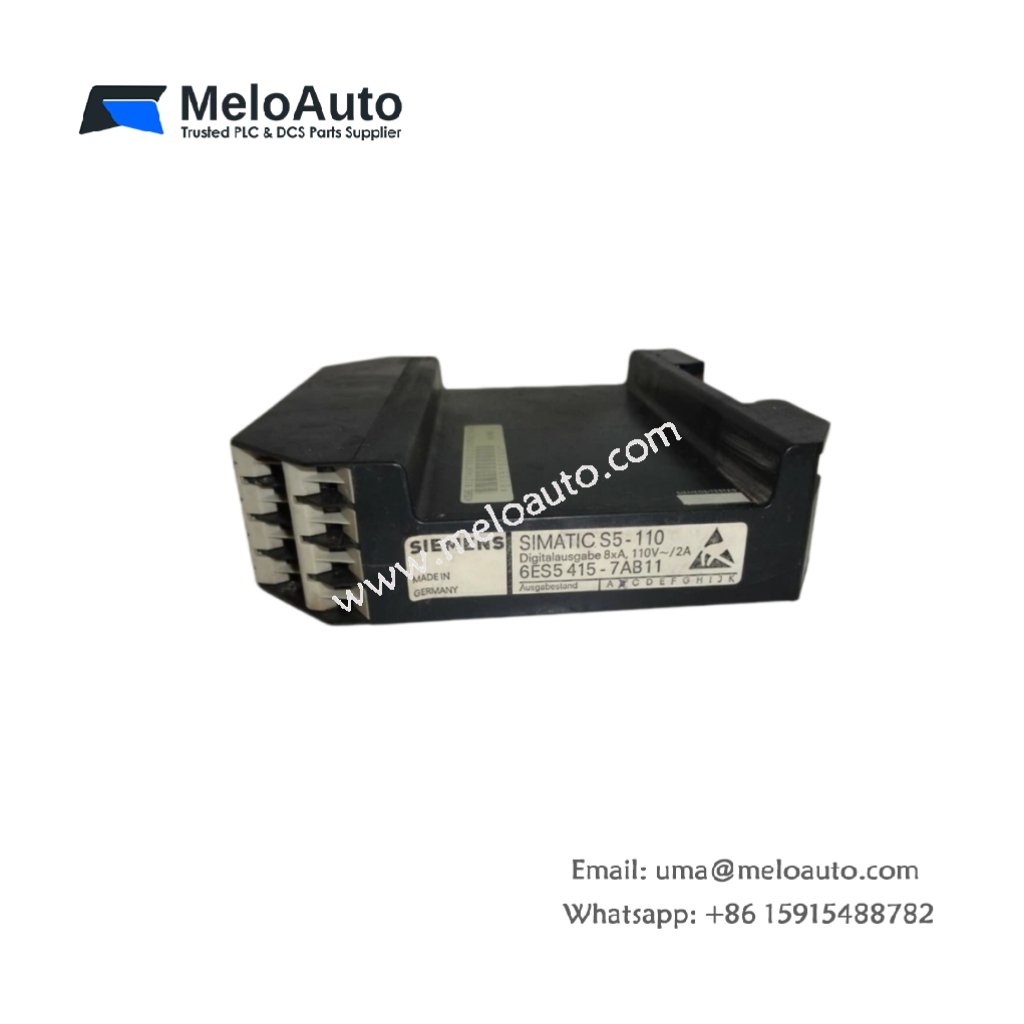

Siemens 6ES5415-7AB11 Digital Output Module

The Siemens 6ES5415-7AB11 digital output module controls AC actuators and contactors for SIMATIC S5 systems. This module sends on/off signals to valves, motor starters, and indicator lamps. It mounts directly into any S5-115U or S5-135U rack slot. You can use this module as a direct replacement for failed output units.

Detailed Technical Specifications

The Siemens 6ES5415-7AB11 digital output module measures 250 mm in length. Its width reaches 160 mm across the main body. The total height goes up to 42 mm with all components installed. This unit weighs approximately 0.56 kilograms for secure mounting.

Key hardware parameters include:

Complete Model: Siemens 6ES5415-7AB11
Component count: 68 individual electronic parts
Connector ports: One 20-pin screw terminal block
Energy storage: Four electrolytic capacitors (100 µF each)
Mounting system: Two rear locking levers
PCB layers: Four-layer industrial construction
Output channels: 16 triac outputs
Voltage rating: 120/230 V AC nominal
Output current: 0.5 A per channel continuous
Total current: 4 A maximum across all outputs
Leakage current: <1.5 mA when off
Surge current: 5 A for 20 ms
Isolation: Optical between backplane and field side

The Siemens 6ES5415-7AB11 digital output module stores minimal residual charge after power-off. Therefore, technicians can perform replacements within two minutes. Each output includes a red LED for visual status indication. Moreover, the module provides RC snubber circuits for inductive load protection.

Technical Parameter	Specification
Full Model Number	Siemens 6ES5415-7AB11
Dimensions (LxWxH)	250 mm x 160 mm x 42 mm
Weight	0.56 kg
Total Components	68 units
Connector Ports	1 x 20-pin screw terminal
Energy Storage Caps	4 x 100 µF (electrolytic)
Output Channels	16 triac outputs
Voltage Rating	120/230 V AC
Output Current	0.5 A per channel
Total Current	4 A maximum
Leakage Current (off)	<1.5 mA
Surge Current (20ms)	5 A
Operating Temperature	0°C to +60°C
Humidity Tolerance	5% to 85% non-condensing

Application and Installation

The Siemens 6ES5415-7AB11 digital output module connects directly to AC field devices. This module drives solenoid valves, motor contactors, and indicator lights. It requires an external AC power supply for output operation. Consequently, you can control up to 16 AC loads from a single module.

Protection and Reliability

This module includes RC snubber networks across every output channel. Its optical isolation prevents backplane noise from reaching field devices. The Siemens 6ES5415-7AB11 features triac outputs with zero-cross switching. Therefore, the module reduces electromagnetic interference during load activation.

Always power down the rack before inserting or removing this module. Wire the field devices using the terminal labeling diagram. The module features a green LED for backplane power status. Furthermore, its conformal coating protects against dust and light moisture.
