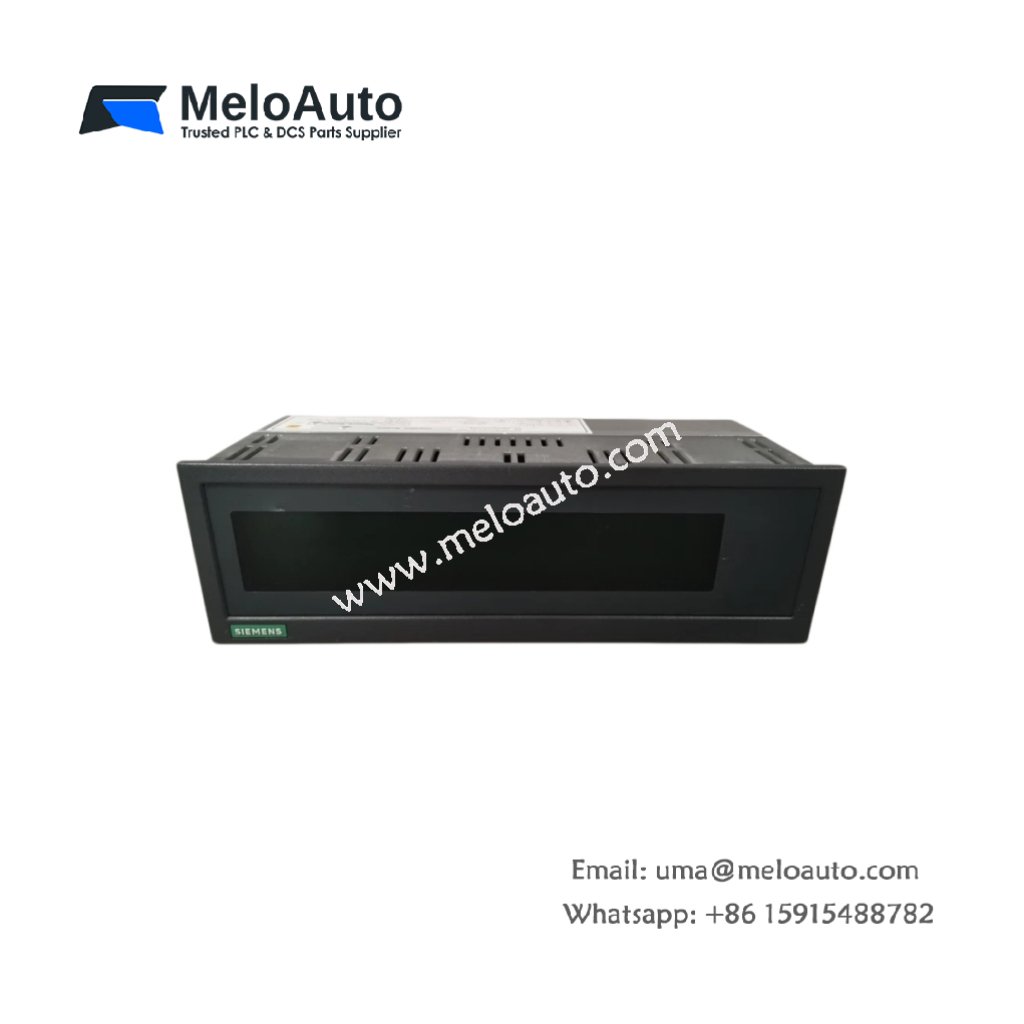

This Siemens text display unit provides operator interface capabilities for small automation systems. The Siemens 6AV3010-1EL00 displays process information on its alphanumeric screen. Its compact design fits into limited panel spaces effectively. This device connects to S5 and S7 controllers via serial links.
Display and Physical Specifications
The unit features a 4-line alphanumeric LCD with 20 characters per line. Each character measures 4 mm in height for clear readability. Its overall dimensions reach 140 mm in width and 80 mm in height. The depth measures 35 mm behind the mounting surface. This unit weighs approximately 0.3 kilograms for panel mounting. The Siemens 6AV3010-1EL00 includes 8 tactile keys for data entry. Four function keys allow direct access to frequently used operations.
Electrical Characteristics and Interface Options
The unit draws a nominal current of 60 mA from a 24 V DC supply. Peak inrush current reaches 0.5 A for approximately 20 milliseconds. The device consumes about 1.5 W of power during normal operation. A 9-pin D-sub connector provides the RS-232 communication interface. This interface supports baud rates from 1200 to 9600 bit/s. The Siemens 6AV3010-1EL00 includes an 8 KB internal memory for configuration storage. An energy storage capacitor of 47 µF maintains settings during brief outages.
Environmental Ratings and Mounting Details
Operating temperatures range from 0°C to 45°C for consistent performance. Storage temperatures extend from -20°C to 60°C without damage. Relative humidity tolerance reaches 80% with no condensation formation. The front panel meets IP54 protection against dust and splashing water. Mount this unit using the supplied clips for a secure fit.
Detailed Specification Table
| Parameter | Specification |
|---|---|
| Display Type | 4-line x 20-character LCD |
| Character Height | 4 mm |
| Dimensions (W x H x D) | 140 mm x 80 mm x 35 mm |
| Weight | Approx. 0.3 kg |
| Number of Keys | 8 (membrane), 4 function keys |
| Supply Voltage | 24 V DC |
| Current Consumption | 60 mA (nominal) |
| Power Consumption | 1.5 W |
| Communication Port | RS-232 (9-pin D-sub) |
| Baud Rate Range | 1200 to 9600 bit/s |
| Internal Memory | 8 KB |
| Energy Storage Capacitance | 47 µF |
| Operating Temperature | 0°C to 45°C |
| Front Panel Protection | IP54 |
Application and Installation Guidelines
Install this unit in a clean location with adequate front access. Cut a 120 mm x 60 mm opening in the control panel. Insert the unit from the front and secure it using the provided brackets. Connect the RS-232 cable to the programming port before applying power. The Siemens 6AV3010-1EL00 supports configuration via standard programming software. Use the function keys for navigating menus and confirming entries. Clean the membrane surface with a soft, dry cloth regularly. Verify the communication settings match the connected PLC configuration.
