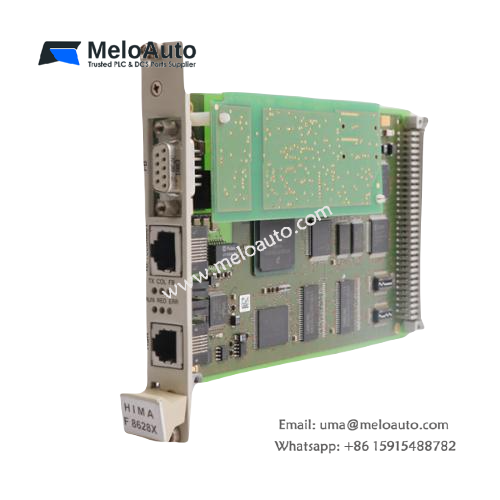

F 8628X | HIMA F8628X Communication Module

The HIMA F 8628X is a communication module designed for PROFIBUS-DP communication applications in H41q and H51q PES systems (beginning with OS41q/51q V7.0-7). This module integrates seamlessly with HIMA’s H41q/H51q process automation systems, enabling reliable communication over the PROFIBUS-DP network. It also comes with the associated function block HK-COM-3 for managing communication within the system.

Key Features and Functions

• Communication Standard: Supports PROFIBUS-DP slave communication.
• System Compatibility: Works with H41q and H51q PES systems, starting from OS41q/51q V7.0-7.
• Function Block: HK-COM-3 for integration into HIMA systems.

Technical Data

• Processor:
  • 32-bit Motorola CPU MPC860T
  • Integrated RISC communication controller for high-speed data processing and communication.
• Operating Voltage:
  • 5 VDC / 1 A.
• Space Requirements:
  • 3 HU (Height Units)
  • 4 SU (Space Units) for module width.
• Interfaces:
  • Serial Interface FB: Connects to the PROFIBUS-DP slave module using a 9-pin SUB-D plug.
  • Ethernet Interface:
    • 10Base-T or 100Base-TX compatible with the IEEE 802.3 standard.
    • Connection via RJ-45 plug.
  • HSR Interface:
    • High-speed communication for redundant HSR (High-Speed Redundancy).
    • Connection via RJ-12 plug with BV 7053 for enhanced redundancy.
• Diagnostic Display:
  • Equipped with 6 LEDs to display diagnostic information during operation, ensuring easy troubleshooting.
• DIP Switches:
  • 2 DIP switches for configuring and setting the module functions as per operational requirements.

Diagram

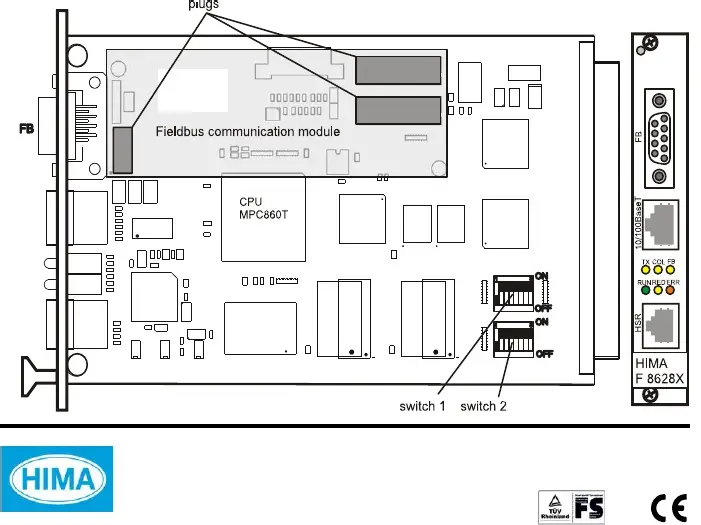

Figure 1: Communication module F8628X

Applications

The HIMA F 8628X PROFIBUS-DP slave module is ideal for process automation systems that require reliable, high-speed communication and diagnostic capabilities. It is particularly suited for redundant communication networks using HSR for critical applications, ensuring fault tolerance and system reliability.
