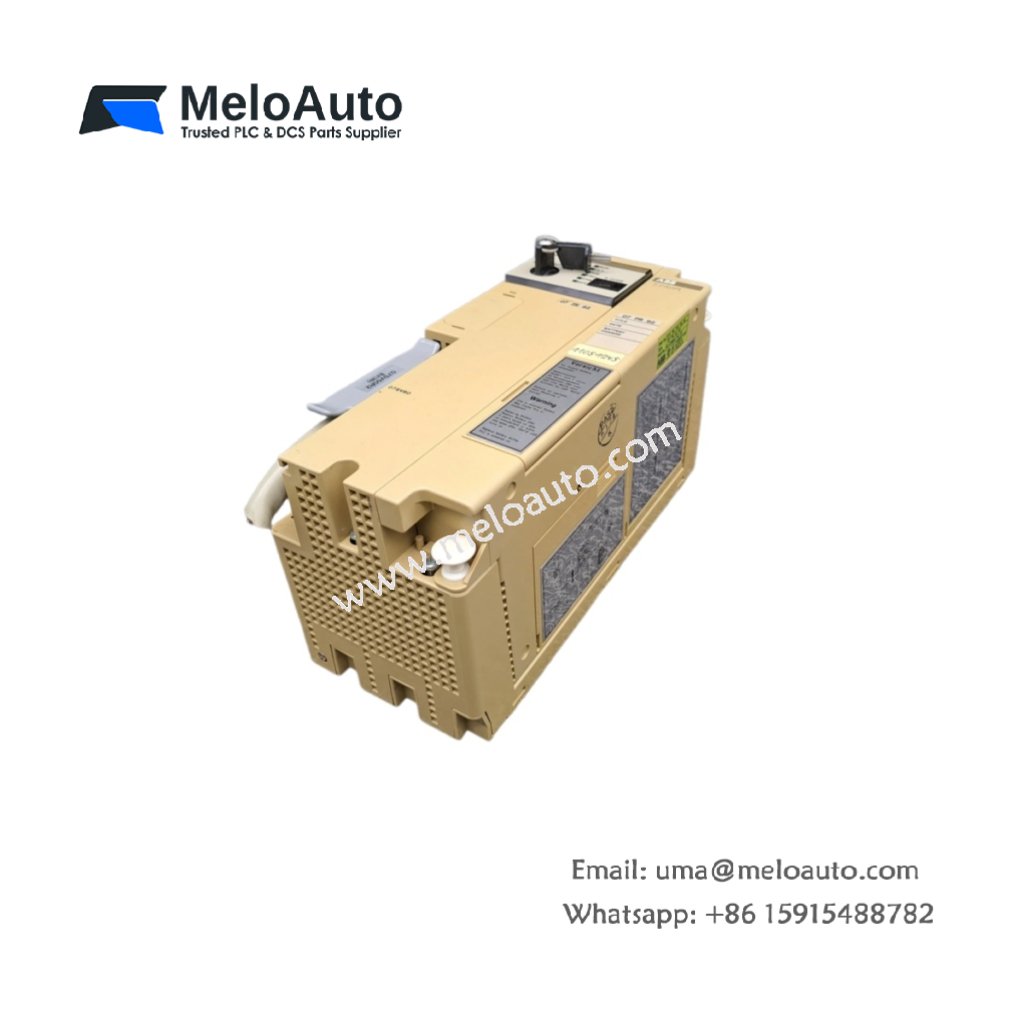

ABB 07 ZE 62 R302 Central Unit | Procontic CPU

The 07 ZE 62 R302 serves as the CPU for ABB Procontic control systems. This module executes user logic and manages all I/O operations. It supports up to 16KB of user program memory.

Key Technical Specifications

Parameter	Value
Processor	16-bit microcontroller
Program Memory	16 KB RAM (battery-backed)
Execution Speed	1.2 ms per 1K instructions
Data Memory	2 KB flags + 64 timers
Supply Voltage	24V DC ±20%
Power Consumption	8 W typical
Digital I/O Capacity	512 channels max
Analog I/O Capacity	32 channels max
Communication Ports	1 x TTY (20 mA)
Module Dimensions	25.0 cm x 16.0 cm x 5.5 cm
Weight	0.68 kg (1.50 lbs)
Component Count	142 discrete components
Energy Storage	2200 µF bulk capacitance
Operating Temperature	0°C to 55°C

Physical Dimensions and Component Layout

This module measures 25.0 cm in length and 16.0 cm in width. Its total height reaches 5.5 cm including the heat sink. 07 ZE 62 R302 weighs 0.68 kg for stable rack mounting. You will find 142 discrete components on a six-layer PCB.

Moreover, the module integrates a 2200 µF bulk capacitor bank. This bank stores energy for 50 ms during power interruptions. It also filters noise from the 24V DC supply rail.

Processing Performance and Memory

The 16-bit microcontroller executes 1K instructions in just 1.2 ms. This speed supports fast scan cycles for real-time control. The 16KB RAM stores ladder logic and statement list programs. A lithium battery retains this memory for up to 300 days without power.

Communication and Expansion

A built-in TTY interface connects to programming devices or operator panels. This port uses a 20 mA current loop for reliable long-distance communication. You can expand I/O using up to 4 external expansion racks. The module also supports up to 32 analog channels.

Typical Application Scenarios

You can deploy 07 ZE 62 R302 in ABB Procontic systems for mid-sized automation tasks. It also works well for batch processing, material handling, and machine tool control. This CPU handles sequential control, PID loops, and data logging. Its 16KB memory suits applications with up to 256 I/O points.
