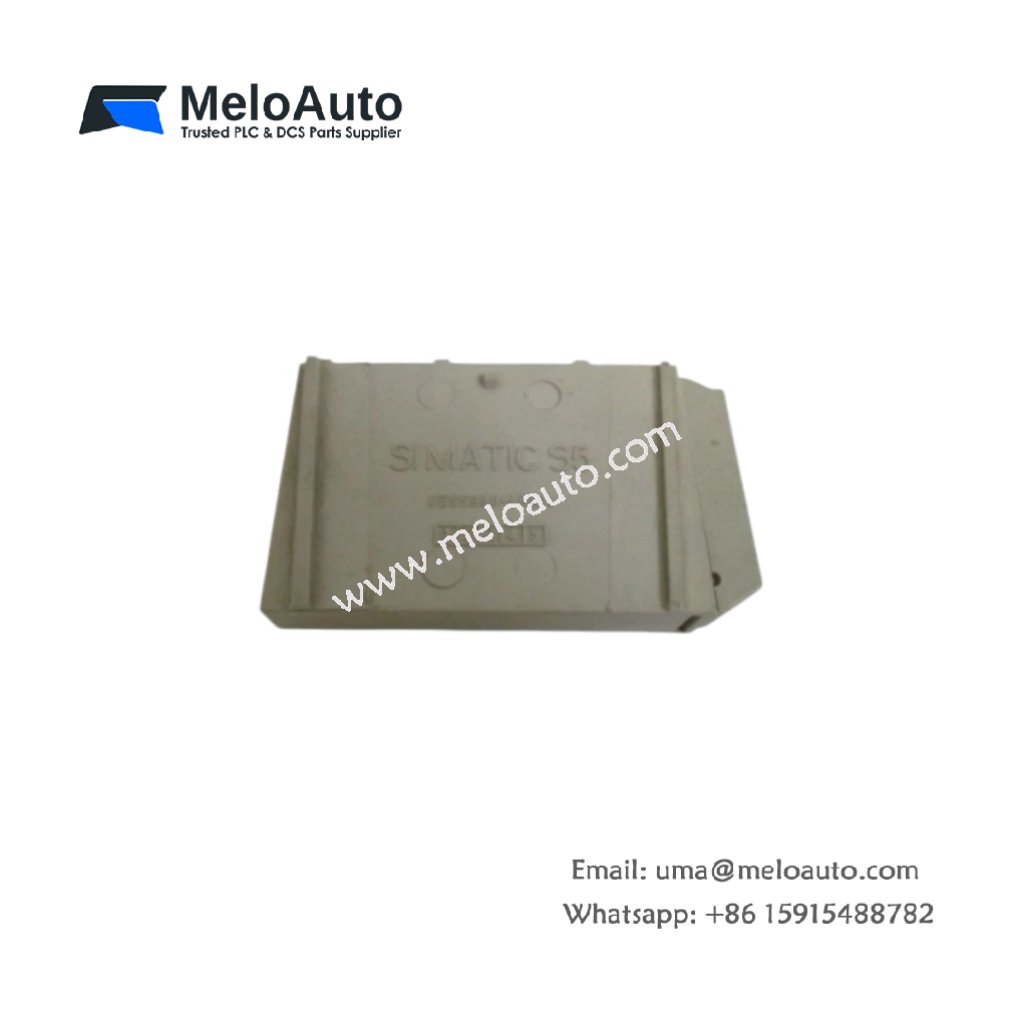

Siemens 6AV1202-0AA00 | EPROM Memory Submodule

Technical Overview of the EPROM Submodule

The Siemens 6AV1202-0AA00 functions as a plug-in EPROM submodule for SIMATIC HMI operator panels. This submodule securely stores screen configurations and application data. It fits directly into the designated memory slot of the panel. The module provides non-volatile storage for critical visualization projects.

Key Technical Specifications

This section outlines the core parameters for the Siemens 6AV1202-0AA00 memory submodule. Use these details to verify compatibility with your HMI panel.

Parameter	Specification
Part Number	6AV1202-0AA00
Type	EPROM Memory Submodule
Product Family	SIMATIC HMI
Memory Type	EPROM
Storage Capacity	16 Kbytes
Operating Voltage	5V DC
Dimensions (W x H x D)	Approx. 45 x 30 x 12 mm
Weight	Approx. 0.03 kg
Compatibility	SIMATIC HMI panels (various S5-compatible models)
Data Retention	Permanent without external battery

Application and System Integration

This EPROM submodule stores your HMI application and retains it indefinitely. Users can easily insert the Siemens into the panel’s memory socket. The permanent storage eliminates the need for frequent reprogramming. This module simplifies field replacements and system upgrades.

Reliability and Performance Advantages

The EPROM technology ensures reliable data retention over many years. It protects your visualization project from power loss and memory corruption. Moreover, the compact design suits space-constrained cabinets. Engineers often choose the Siemens 6AV1202-0AA00 for its dependable long-term performance.
