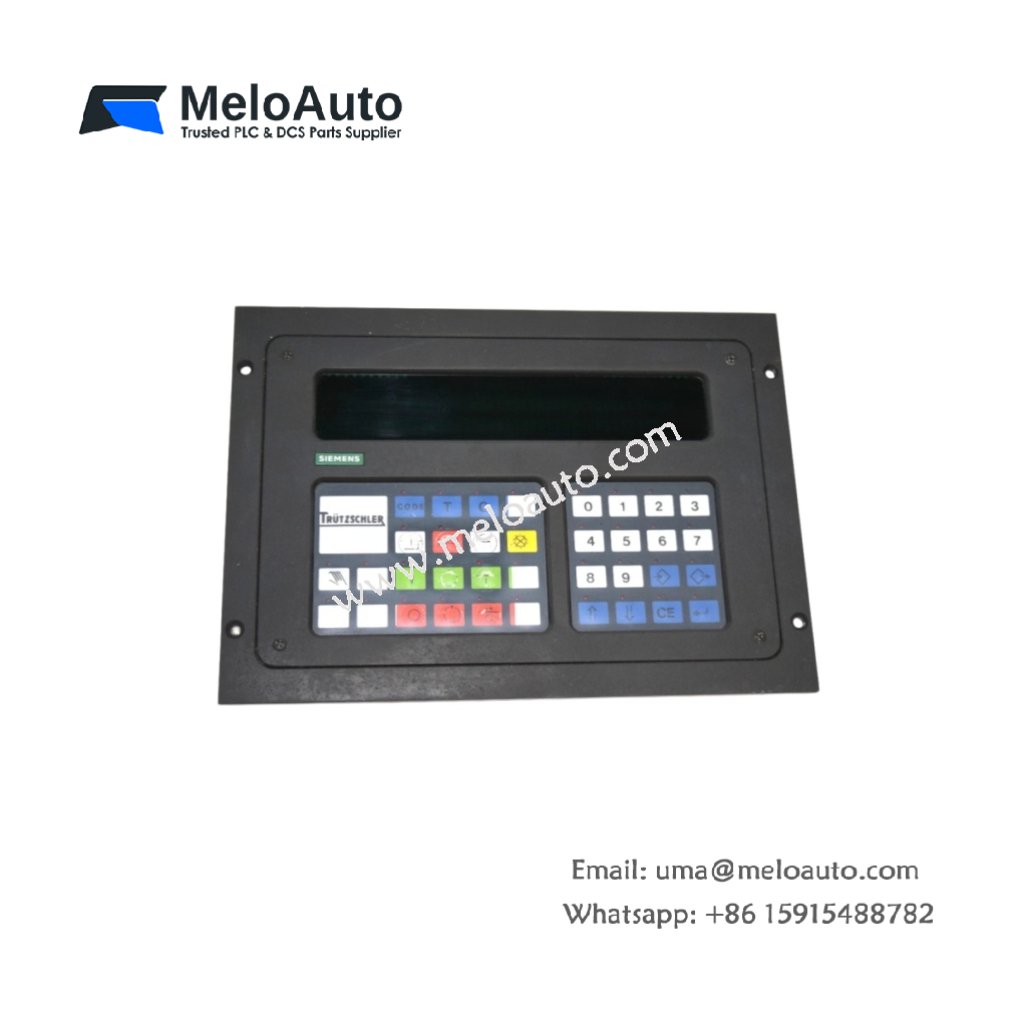

Siemens 6AV1132-0DA10 Operator Panel

Technical Specifications and Display Features

This operator panel serves as a compact HMI for Siemens SIMATIC S7 and S5 systems. The Siemens 6AV1132-0DA10 provides machine operators with clear process visualization and control. You can mount this unit into standard control cabinet cutouts easily. Its slim design saves valuable space on crowded machine enclosures. The panel weighs approximately 1.2 kilograms. Its dimensions measure 15 cm in height, 22 cm in width, and 5 cm in depth.

Parameter	Specification
Brand	Siemens
Model	6AV1132-0DA10
Category	Operator Panel / Human-Machine Interface Terminal
Weight	1.2 kg
Height	15 cm
Width	22 cm
Depth	5 cm
Display Type	Monochrome LCD (STN positive mode)
Display Resolution	240 x 64 pixels (graphic) / 8 x 40 characters (text)
Active Display Area	11 cm x 4.5 cm
Backlight Type	CCFL (cold cathode fluorescent lamp)
Number of Keys	18 membrane keys (12 programmable)
Communication Ports	RS-232, RS-422, RS-485, TTY (20 mA current loop)
Communication Speed	300 to 38.4 Kbps
Protocol Support	3964R, RK512, MPI, PROFIBUS DP (slave)
Input Voltage	24V DC (±18% to +25%)
Power Consumption	12 Watts maximum
Energy Storage	None (no internal battery for application)
Component Count	LCD panel, backlight inverter, keypad, main PCB

Display Capabilities and Operator Controls

The monochrome LCD presents both text and simple graphics effectively. A built-in CCFL backlight ensures visibility in dim industrial lighting conditions. The Siemens 6AV1132-0DA10 includes eighteen tactile response membrane keys. Twelve of these keys accept custom labeling for specific machine functions. A numeric keypad enables rapid data entry without screen navigation. The display contrast adjusts through a potentiometer accessible from the rear. You can store up to 50 screen pages in the internal flash memory.

Communication and System Integration

You connect this panel to a Siemens PLC using any available serial interface. The unit supports RS-232, RS-422, RS-485, and 20 mA TTY standards. A 9-pin D-sub connector provides the primary connection to the controller. The Siemens 6AV1132-0DA10 also acts as a PROFIBUS DP slave device. It draws its operating power from an external 24V DC supply. The panel includes a non-replaceable lithium battery for real-time clock backup. This battery maintains the clock for approximately five years.

Installation and Environmental Guidelines

You must cut a mounting hole measuring 138 mm by 203 mm in the cabinet door. The panel seals against the door using an included foam rubber gasket. The front face carries an IP65 rating for dust and water protection. Consequently, you can clean the panel with a damp cloth safely. The operating temperature ranges from 0°C to 45°C for reliable performance. You should avoid exposing the panel to direct sunlight for extended periods. The CCFL backlight has an average lifespan of 50,000 operating hours.
