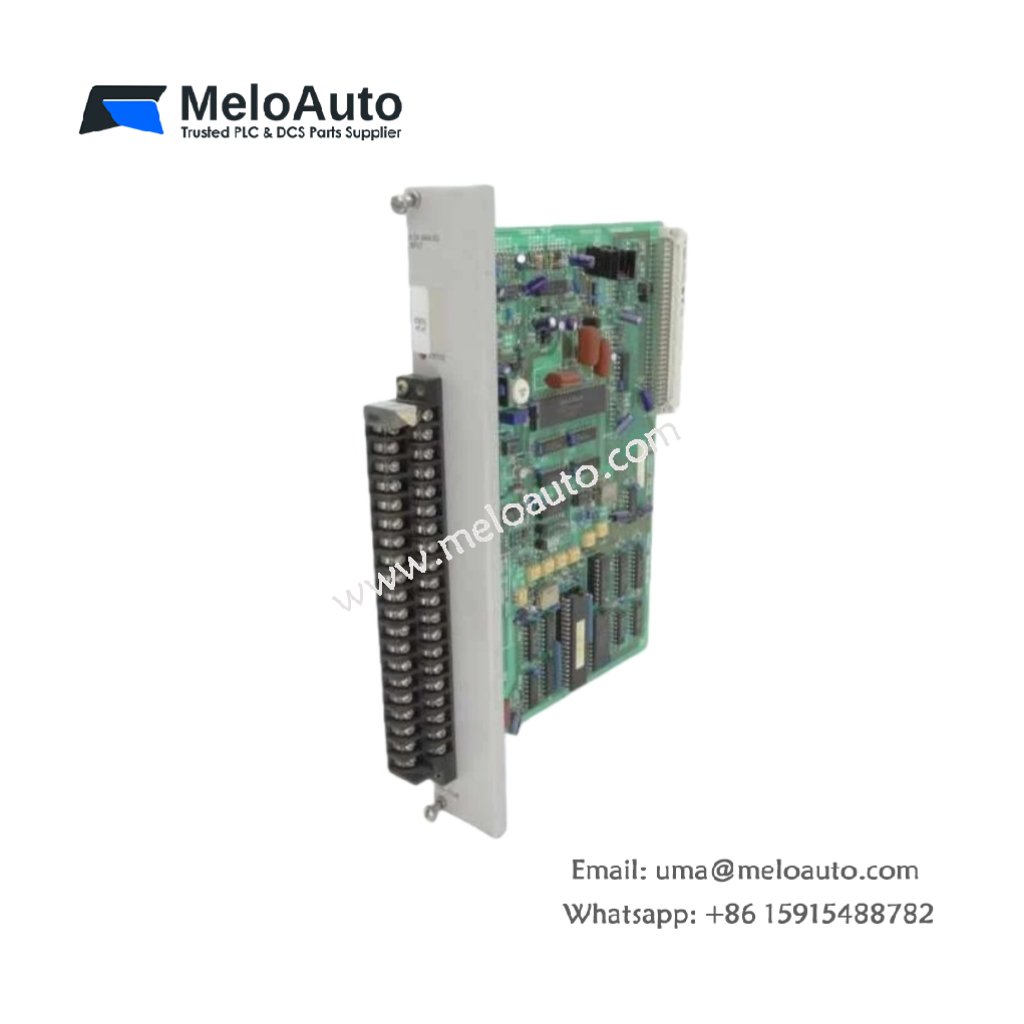

Siemens 505-6108 SIMATIC TI 505 Analog Input Module

The Siemens 505-6108 is a high-performance SIMATIC TI 505 analog current/voltage input module designed to provide precise and reliable measurement for industrial automation systems. Featuring an 8-channel configuration, this module seamlessly integrates into Siemens TI 505 systems for a wide range of control and monitoring applications.

Key Features of the Siemens 505-6108

8 Analog Channels: The module offers 8 input channels, enabling efficient monitoring of multiple signals simultaneously.
Current/Voltage Input: It supports both current and voltage inputs, making it versatile for various sensor types.
High-Resolution Measurement: With 12-bit resolution, the module ensures accurate signal processing and data integrity.
Wide Input Range: Designed to handle a broad range of analog input signals, this module ensures flexibility in industrial environments.
Single-Width Design: The module’s single-width configuration optimizes space within control panels and racks, allowing for easy integration.

Specifications of the Siemens 505-6108

Parameter	Details
Model Number	Siemens 505-6108
Module Type	Analog Input Module
Channels	8
Resolution	12-bit
Input Type	Current/Voltage
Input Range	Wide range of current/voltage signals
Design Type	Single Width
Weight	0.35 kg (0.77 lbs)
Dimensions	7.5 x 16.5 x 5.5 cm (2.95 x 6.50 x 2.17 in)
Power Supply	24 VDC
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Certifications	CE, UL

Applications of the Siemens 505-6108

Process Automation: Ideal for applications in process control systems, where accurate analog signal measurement is essential.
Industrial Control: The Siemens 505-6108 is used for monitoring and control in industries such as chemical processing, oil and gas, and energy generation.
Data Acquisition: With its high-resolution inputs, this module is perfect for applications that require precise data collection from analog sensors.
Automation Systems: The module seamlessly integrates with Siemens TI 505 systems, enabling comprehensive control over a wide range of industrial processes.
