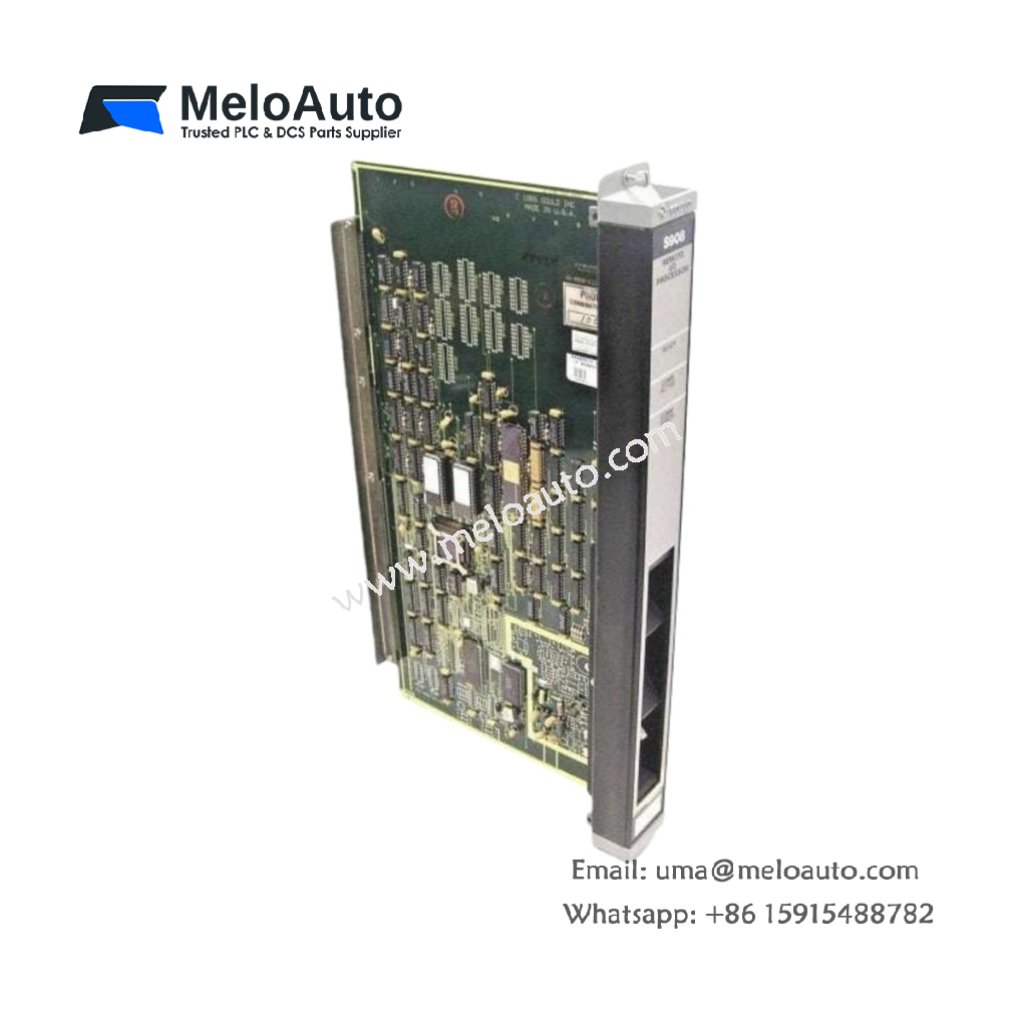

Schneider ASS908023 Remote I/O Processor

Overview of the ASS908023 Processor

The Schneider ASS908023 is a high-performance remote I/O processor within the Modicon 984 series. Engineered for seamless integration into industrial automation systems, this processor features a dual-channel design, allowing flexible network configurations. It supports up to 62 remote drops (31 per channel), offering scalability for diverse applications.

Key Features

• Manufacturer: Schneider Electric
• Product Type: Remote I/O Processor
• Product Line: Modicon 984
• Part Number: ASS908023
• Channel Type: Dual Channel
• Max Remote Drops: 62 (31 per channel)
• Network Type: Remote I/O
• Mounting Type: Rack-mounted

The ASS908023 is a versatile and scalable remote I/O processor designed to handle large systems. It supports dual channels, allowing for 31 remote drops per channel, facilitating communication across extensive networks. Whether you need to manage a compact setup or a large industrial system, this processor ensures reliable operation and seamless connectivity.

Technical Specifications

The ASS908023 processor performs efficiently within an operating temperature range of 0°C to 60°C. It can endure more extreme storage conditions, from -40°C to 85°C. This processor also supports a maximum communication distance of 10,000 feet (3,048 meters), making it suitable for large installations that require long-range data transmission.

Environmental and Installation Features

This processor functions optimally in environments with relative humidity ranging from 5% to 95%, without the risk of condensation. Its rack-mounted design makes installation easy, allowing for smooth integration into existing automation setups. The device’s diagnostic LEDs provide real-time status updates, simplifying troubleshooting and maintenance.

Benefits

• Scalable Design: With up to 62 remote drops, the processor offers excellent flexibility for expanding your automation network.
• Long Communication Range: It supports a maximum distance of 10,000 feet (3,048 meters), ideal for large-scale installations.
• Durability: Designed to operate in extreme environmental conditions, from -40°C to 85°C during storage and 0°C to 60°C during operation.
• Easy Installation: The rack-mounted design facilitates quick and efficient setup, saving time on installation and integration.

Manufacturer and Model

• Brand: Schneider Electric
• Model: ASS908023
• Category: Remote I/O Processor

The ASS908023 is part of Schneider Electric’s Modicon 984 series, known for its reliability and high performance in industrial automation applications.
