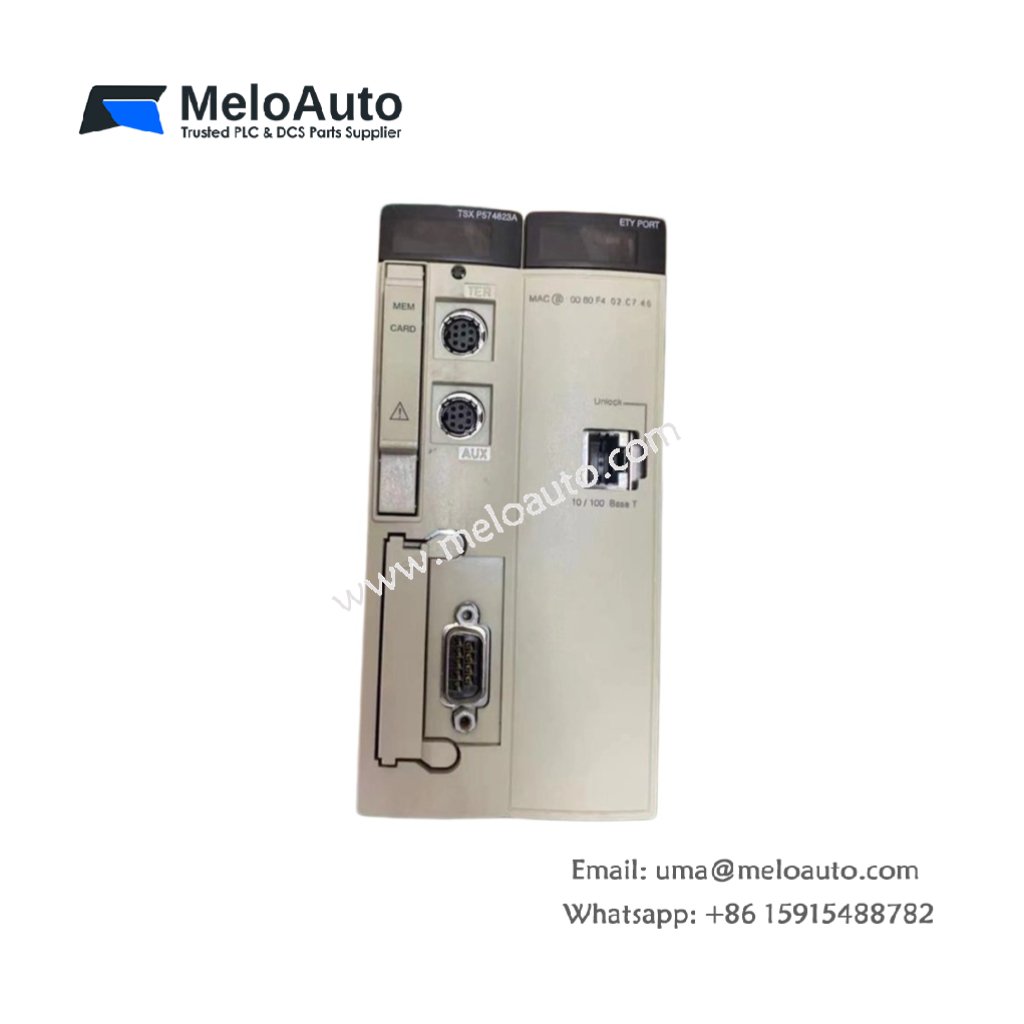

Schneider TSXP574823AM PL7 Processor

Technical Specifications

Parameter	Value
Brand	Schneider
Model	TSXP574823AM
Category	Double Format PL7 Processor
Weight	1.52 lbs (0.69 kg)
Dimensions	6.9 x 5.2 x 3.4 inches
Component Count	368 discrete components
Processor Type	32-bit RISC
Clock Speed	80 MHz
Program Memory	256 KB flash
Data Memory	128 KB SRAM
Backup Memory	64 KB EEPROM
Processing Speed	0.2 µs per boolean instruction
Communication Ports	2 x Modbus, 1 x Ethernet
Local I/O Capacity	1024 digital points
Energy Storage	6 x 220µF, 4 x 100µF
Backup Battery	3.6V lithium (8 years life)
Operating Temperature	0°C to 60°C

Physical Construction and Component Density

This TSXP574823AM double format processor measures 6.9 inches in height. Its width reaches 5.2 inches with a depth of 3.4 inches. The total weight comes to approximately 1.52 pounds. Manufacturers placed 368 discrete components on this high-density PCB. These components include a 32-bit RISC CPU, memory banks, communication controllers, and power regulators. The board uses an eight-layer design for signal integrity.

Processing Power and Memory Architecture

TSXP574823AM features a 32-bit RISC processor running at 80 MHz. This CPU executes boolean instructions in just 0.2 microseconds. Program memory includes 256 KB of flash for PL7 user applications. Data memory provides 128 KB of SRAM for variables and registers. An additional 64 KB of EEPROM stores configuration parameters permanently. A 3.6V lithium battery backs up the SRAM contents. This battery lasts approximately 8 years under normal use. Consequently, the processor retains critical data through extended power outages.

Communication Capabilities and I/O Capacity

The double format processor includes three onboard communication ports. Two Modbus ports connect to HMIs, drives, or SCADA systems. One Ethernet port enables high-speed networking and remote access. The TSXP574823AM manages up to 1024 local digital I/O points. You can also add distributed I/O racks over the Modbus network. For energy storage, the board integrates six 220µF capacitors. Four additional 100µF capacitors filter high-frequency power noise.

Application Use and System Reliability

You will find this processor in Premium PLC systems using PL7 software. It suits large manufacturing lines, water treatment, and material handling. The TSXP574823AM operates reliably from 0°C to 60°C ambient. A real-time clock adds precise timestamps to diagnostic events. A watchdog timer resets the CPU if software execution stalls. Therefore, this double format PL7 processor delivers high-performance control for demanding industrial automation.
