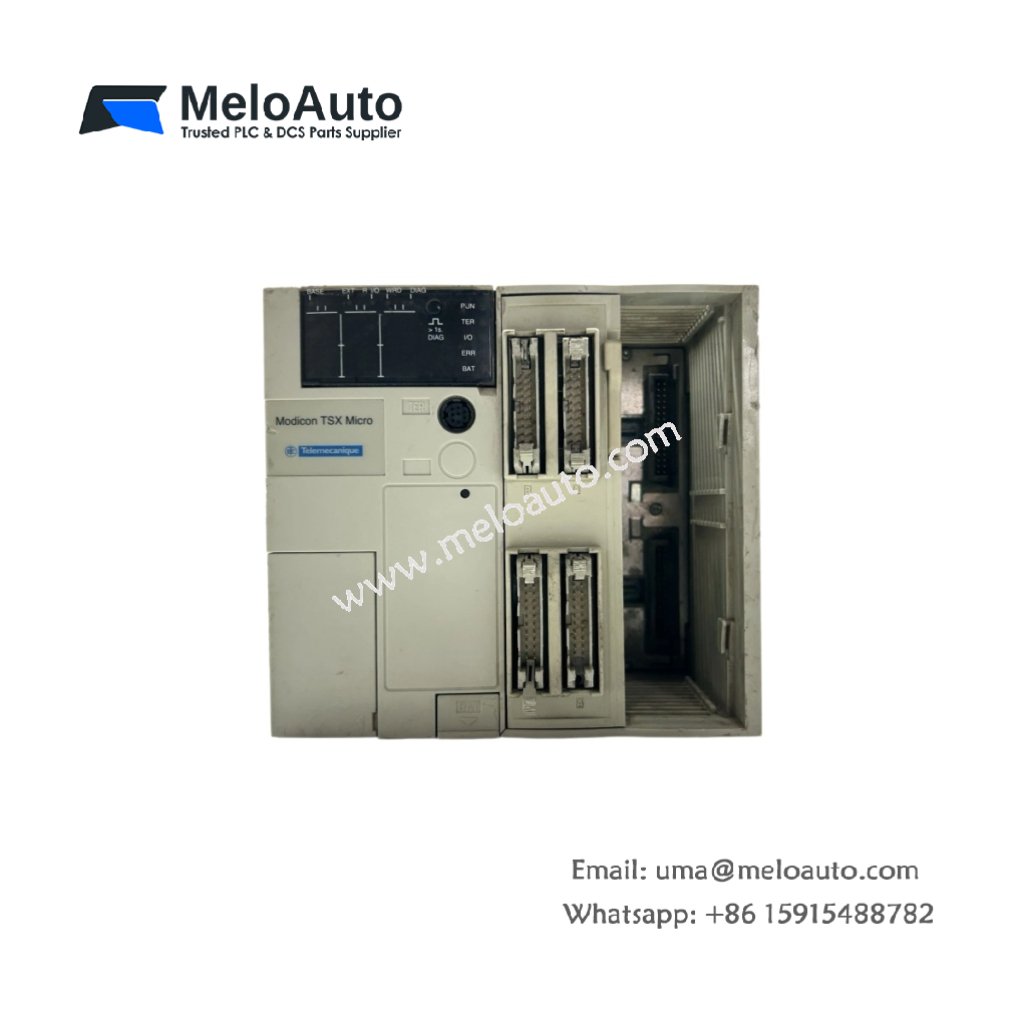

Schneider TSX3710164DTK1 TSX Micro PLC

Technical Specifications

Parameter	Value
Brand	Schneider
Model	TSX3710164DTK1
Category	TSX Micro 37 10 PLC
Weight	1.24 lbs (0.56 kg)
Dimensions	5.7 x 4.5 x 3.1 inches
Component Count	312 discrete components
Processor Type	16-bit microcontroller
Program Memory	128 KB flash
Data Memory	48 KB SRAM
Backup Memory	8 KB EEPROM
Digital Inputs	16 channels (24V DC)
Digital Outputs	8 channels (24V DC, 0.5A)
Analog Inputs	2 channels (0-10V)
Communication Ports	1 x Modbus, 1 x USB
Energy Storage	4 x 220µF, 3 x 100µF
Backup Battery	3V lithium (5 years life)
Operating Temperature	0°C to 55°C

Physical Construction and Component Density

This TSX3710164DTK1 PLC measures 5.7 inches in height. Its width reaches 4.5 inches with a depth of 3.1 inches. The total weight comes to approximately 1.24 pounds. Manufacturers placed 312 discrete components on this high-density PCB. These components include a microcontroller, memory chips, I/O drivers, and power regulation circuits. The board uses a six-layer design for noise immunity.

Memory Architecture and Processing Capability

TSX3710164DTK1 features a 16-bit microcontroller for logic execution. Program memory includes 128 KB of flash for user applications. Data memory provides 48 KB of SRAM for variables and registers. An additional 8 KB of EEPROM stores configuration parameters permanently. A 3V lithium battery backs up the SRAM contents. This battery maintains data for approximately five years. Consequently, the PLC retains programs and settings through power loss.

Built-in I/O and Communication Ports

The TSX Micro PLC integrates 16 digital input channels onboard. These inputs accept 24V DC signals from switches or sensors. For outputs, the unit provides 8 digital channels at 24V DC. Each output delivers 0.5 amps maximum for small loads. Two analog input channels accept 0-10V signals from sensors. One Modbus port connects to HMIs, drives, or SCADA systems. One USB port allows direct connection to programming software. Therefore, the TSX3710164DTK1 handles many small applications without extra modules.

Energy Storage and Application Use

TSX3710164DTK1 integrates four 220µF capacitors for bulk energy storage. Three additional 100µF capacitors filter high-frequency power noise. You will find this PLC in compact automation systems. For example, it controls small conveyors, packaging machines, or pumps. The unit operates reliably from 0°C to 55°C ambient. A real-time clock adds timestamps to event logs. Therefore, this TSX Micro 37 10 PLC delivers complete control in a single compact package.
