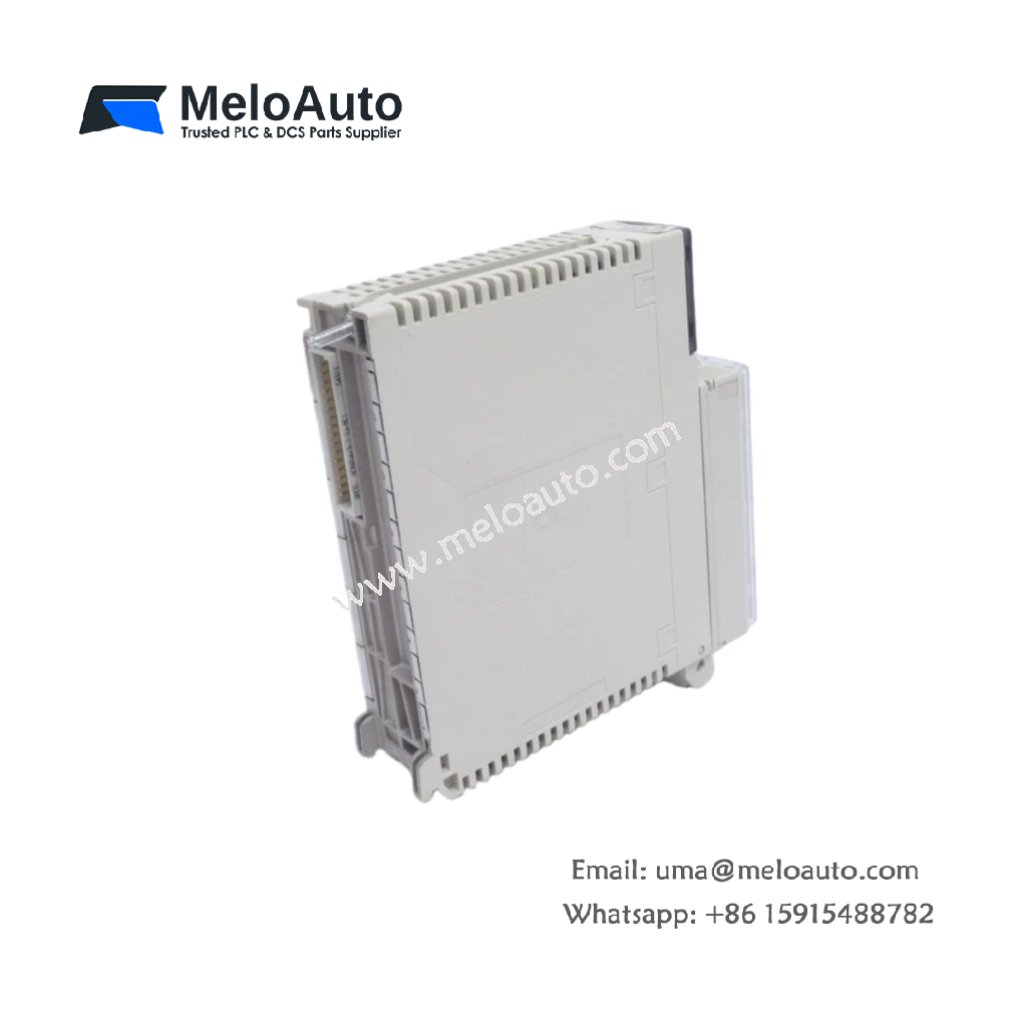

Schneider TSXASY410 Analog Output Module

The Schneider TSXASY410 is a highly efficient analog output module designed for the Modicon Premium Automation Platform. This module offers a wide range of functionalities and provides reliable, high-quality performance for industrial automation. With its ability to convert both voltage and current signals, it is ideal for precise control in complex processes.

Key Features of the Schneider TSXASY410 Analog Output Module

Versatile Outputs: The module supports voltage output (+/- 10 V) and current output (4-20 mA, 0-20 mA).
Fast Conversion Time: It offers a conversion time of just 2.5 ms, ensuring quick responses in dynamic environments.
High Resolution: It features an 11-bit resolution with a sign, allowing for precise control over the output signals.
Robust Protection: The module includes overload, short-circuit, and isolation protections to ensure safety and reliable performance.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Product Type	Analog Output Module
Product Line	Modicon Premium
Part Number	TSXASY410
Analog Output Number	4 outputs
Analog Output Type	Voltage (±10V), Current (4–20mA, 0–20mA)
Analog/Digital Conversion	11 bits + sign
Conversion Time	2.5 ms
Measurement Resolution	5.12 mV (+/-10V)
Measurement Error	±0.98% of full scale (4–20 mA, 0–60°C)
Electrical Connection	Screw terminal block
Isolation Between Channels	1500 Vrms
Isolation Between Channels & Bus	1500 Vrms
Isolation Between Channels & Ground	500 V
Overload Protection	≤30 V
Short-circuit Protection	Yes
Current Consumption	900 mA (5VDC)
Module Format	Standard
Operating Temperature	0°C to 60°C
CE Marking	Yes

Product Description

The Schneider TSXASY410 is a high-performance analog output module for the Modicon Premium series. This module offers four output channels, supporting both voltage and current output options. It provides voltage output up to ±10V and current output ranging from 4–20 mA to 0–20 mA, offering great flexibility in various industrial applications.

Equipped with an 11-bit resolution, this module ensures high accuracy and precise signal conversion. The Schneider TSXASY410 features a fast conversion time of 2.5 ms, making it suitable for real-time control applications. With a measurement error of just 0.98% (at 4–20 mA) and robust isolation between channels, this module guarantees reliable operation even in demanding environments.

This module’s protections include overload, short-circuit, and isolation protections, ensuring safety and extending the lifespan of connected systems. It also supports a wide operating temperature range from 0°C to 60°C, making it adaptable for various industrial settings.
