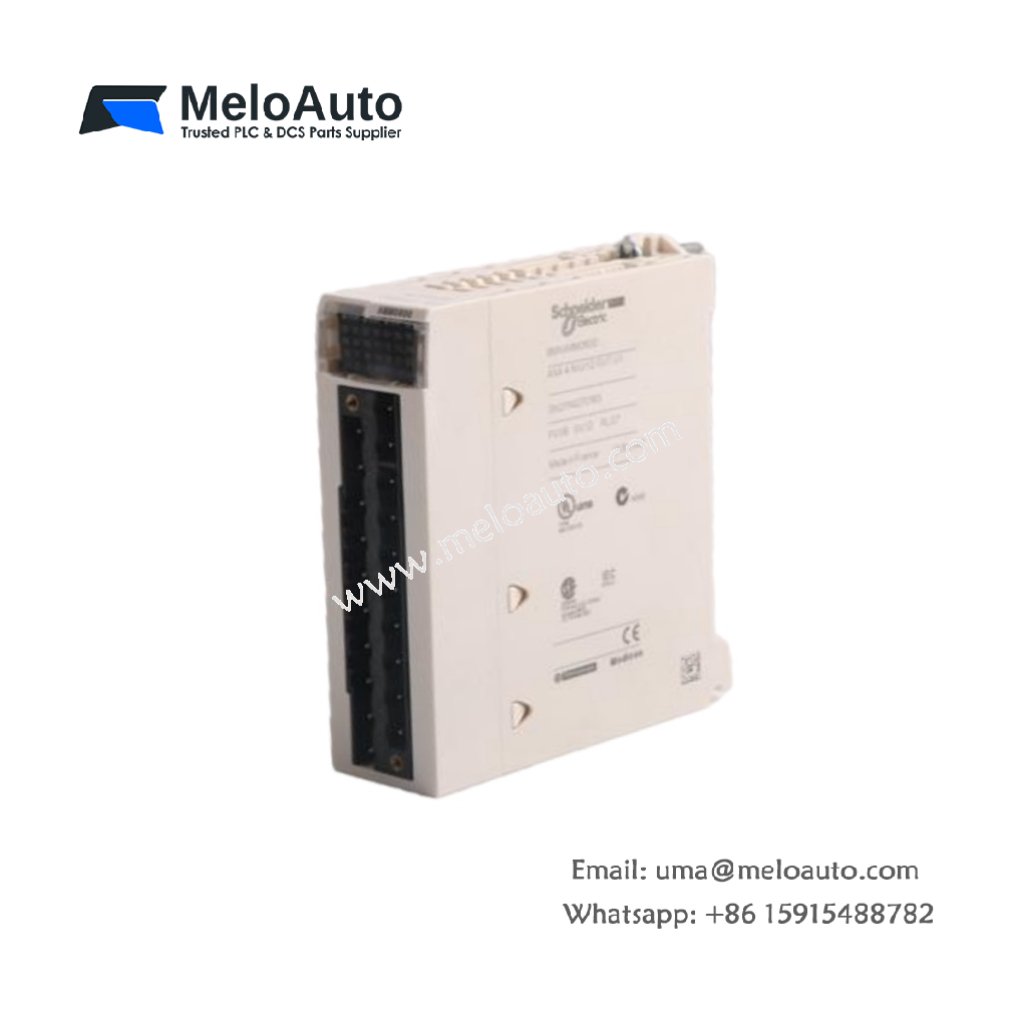

Schneider SCTUST21 Control Module

Overview

The Schneider SCTUST21 is a high-performance control module designed to enhance industrial automation systems. Schneider Electric manufactures this module, ensuring it seamlessly integrates into control systems. It supports efficient monitoring and control of devices, making it ideal for diverse industrial environments.

Key Features

Compact and Efficient: The SCTUST21 offers a space-saving design that fits easily into tight control cabinets, providing flexibility in installation.
Broad Compatibility: It works with Schneider Electric’s automation systems, offering strong connectivity options and ensuring compatibility across platforms.
Stable Operation: This module operates within defined voltage and temperature ranges, ensuring consistent performance in demanding conditions.
User-Friendly Setup: Configuring the SCTUST21 is straightforward, enabling faster setup and less downtime for your automation system.

Technical Specifications

Specification	Value
Model	SCTUST21
Manufacturer	Schneider Electric
Product Type	Control Module
Input Voltage	24 V DC
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Weight	0.4 kg
Dimensions (L x W x H)	110 mm x 70 mm x 55 mm
Power Consumption	2.5 W
Communication Interface	RS-232/RS-485
Protection Class	IP20
Mounting Type	DIN Rail Mounted
Input/Output	16 Inputs / 16 Outputs

Description

The Schneider SCTUST21 operates with a 24 V DC input voltage, providing reliable power to automation systems. It ensures stable performance across a wide temperature range, from 0°C to 60°C during operation. Additionally, it can withstand storage temperatures as low as -40°C and up to 85°C.

This control module includes 16 inputs and 16 outputs, making it versatile for various control and monitoring tasks. It uses the RS-232/RS-485 communication interface, ensuring seamless data exchange and effective control over connected devices.

The SCTUST21 can be easily mounted on a DIN rail, simplifying installation. With its IP20 protection rating, it provides basic defense against dust and foreign objects, making it suitable for many industrial environments.

Applications

Industrial Automation: It supports various machinery, sensors, and devices, ensuring seamless control and monitoring.
Manufacturing: The module optimizes processes, offering reliable control in manufacturing systems that demand precise I/O management.
Building Management: In commercial buildings, it integrates efficiently with HVAC, lighting, and other essential control systems.

Conclusion

The Schneider SCTUST21 delivers outstanding performance for industrial automation applications. It offers 16 I/O points, a reliable communication interface, and robust protection. The module provides flexibility in installation and performs consistently under different operating conditions, making it a top choice for diverse control needs.
