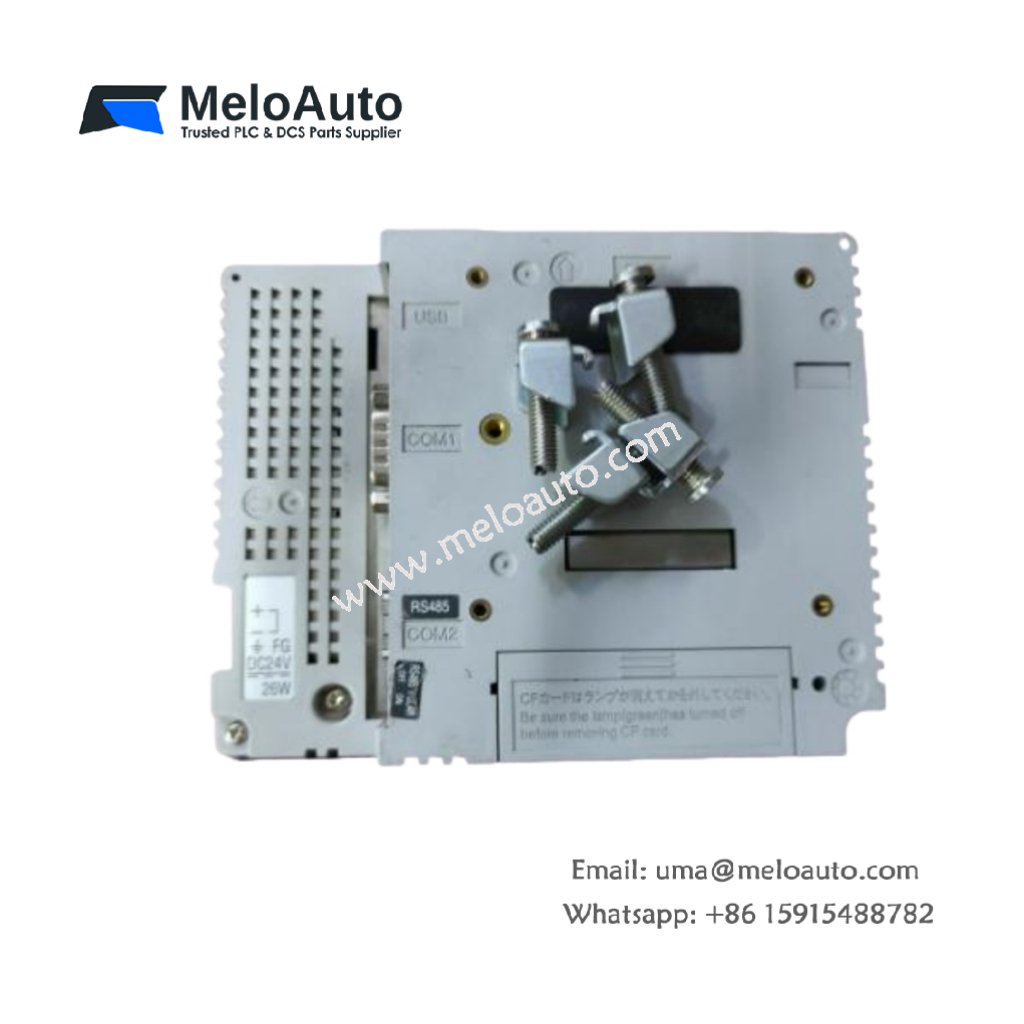

Schneider Electric XBTGT2220 Touchscreen Panel

Overview

The Schneider XBTGT2220 is an advanced touchscreen panel from the Magelis XBTGT range. Specifically designed for industrial automation, this 5.7-inch color STN LCD panel offers high-resolution visuals and exceptional durability. With robust features, including electrostatic discharge resistance, high contrast, and adjustable backlight brightness, this touchscreen panel ensures reliable operation in demanding environments.

Key Features

Manufacturer: Schneider Electric
Model Number: XBTGT2220
Product Type: Advanced Touchscreen Panel
Series: Magelis XBTGT
Display Type: Backlit Color STN LCD
Display Resolution: 320 x 240 pixels (QVGA)
Display Size: 5.7 inches
Touch Panel: Analog
Touch Sensitivity: 1024 x 1024
Backlight Lifespan: 75,000 hours
Brightness: 8 levels via touch panel
Contrast: 8 levels via touch panel
Operating System: Magelis
Processor Name: CPU RISC
Processor Frequency: 133 MHz
Memory: 512 kB SRAM with lithium battery backup
Software: Vijeo Designer Configuration Software

Technical Specifications

Specification	Value
Product Type	Advanced Touchscreen Panel
Display Type	Backlit Color STN LCD
Display Size	5.7 inches
Display Resolution	320 x 240 pixels (QVGA)
Touch Sensitivity	1024 x 1024
Processor	RISC CPU
Processor Frequency	133 MHz
Memory	512 kB SRAM, lithium battery backup
Software	Vijeo Designer Configuration Software
Operating System	Magelis
Voltage Rating	24 V DC
Electrostatic Discharge Resistance	6 kV (IEC 61000-4-2, Level 3)
Backlight Lifespan	75,000 hours
Brightness Control	8 levels (via touch panel)
Contrast Control	8 levels (via touch panel)
Cut-Out Dimensions	156 (+1/-0) x 123.5 (+1/-0) mm

Features and Benefits

Superior Display Quality: The 5.7-inch color STN LCD offers clear visuals with 320 x 240 pixel resolution, ideal for industrial control systems.
Long Lifespan: The backlight lasts up to 75,000 hours, ensuring prolonged operational life and minimizing the need for replacements.
High Sensitivity Touch Panel: With a 1024 x 1024 touch-sensitive zone, the panel ensures precise and responsive touch control, which improves user interaction.
Advanced Brightness and Contrast Adjustment: Both brightness and contrast can be adjusted in 8 levels, offering customization based on environment lighting conditions.
Robust Construction: The 6 kV electrostatic discharge resistance guarantees durability, ensuring safe operation in environments with high electrostatic risks.
Memory Backup: The 512 kB SRAM with a lithium battery backup ensures data integrity, even in power failure situations.
Versatile Compatibility: The Magelis XBTGT panel is compatible with Vijeo Designer configuration software, providing flexibility in system setup and integration.

Applications

The Schneider XBTGT2220 is ideal for use in a wide range of industrial automation applications, including:

Control Systems: Efficiently manage and control industrial processes and machinery.
Manufacturing Automation: Interface with PLCs and other automation devices for precise monitoring and control.
Energy Management: Visualize energy consumption and manage energy distribution systems.
Building Automation: Integrate with building control systems for HVAC and lighting control.
