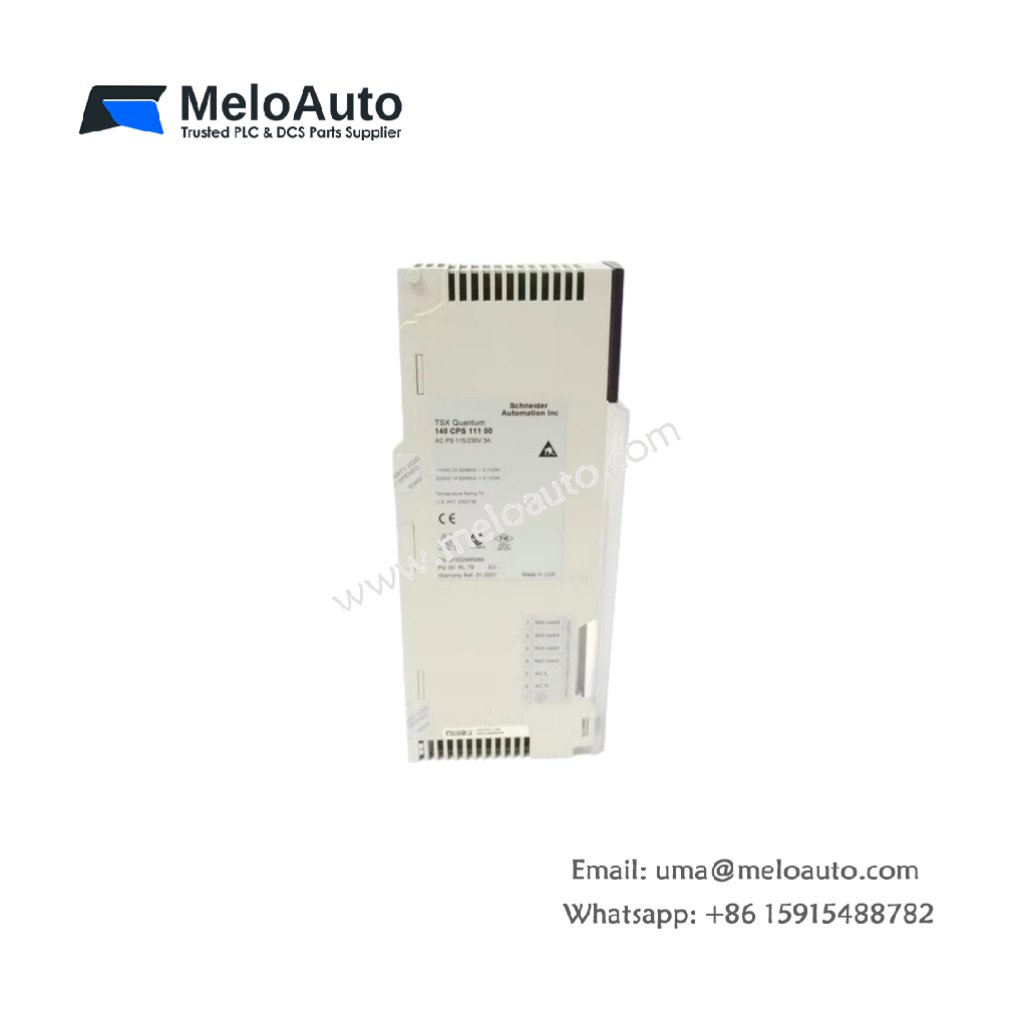

Schneider 140CPS11100 AC Power Supply

Overview

The Schneider 140CPS11100 is a high-performance AC power supply specifically designed for the Modicon Quantum series. It efficiently converts AC power to a stable 5.1 V DC output, ensuring reliable operation in demanding industrial environments. Capable of operating with both 115 VAC and 230 VAC input voltages, this power supply provides 3 A of output current, making it ideal for standalone applications and industrial automation systems.

Key Features

Manufacturer: Schneider Electric
Model Number: 140CPS11100
Product Type: AC Power Supply
Series: Modicon Quantum
Part Number: 140CPS11100
Input Voltage: 115/230 VAC
Output Voltage: 5.1 V DC
Output Current: 3 A (standalone)
Power Dissipation: 2 + (3 x Iout) W (where Iout is in A)
Local Signaling: Green LED (PWR OK)
Protection: Overvoltage and overload protection (internal)
Weight: 0.91 kg (2.00 lbs)
Marking: CE

Technical Specifications

Specification	Value
Input Voltage	115/230 VAC
Input Current	200 mA (230 V) / 400 mA (115 V)
Inrush Current	10 A (230 V) / 20 A (115 V)
Rated Power	50 VA
Output Voltage	5.1 V DC
Output Current	3 A (standalone)
Output Overvoltage Protection	Internal
Output Overload Protection	Internal
Power Dissipation	2 + (3 x Iout) W (where Iout is in A)
Local Signaling	Green LED (PWR OK)
Marking	CE
Module Format	Standard
Product Weight	0.91 kg (2.00 lbs)
Ambient Temperature (Operation)	0°C to 60°C
Ambient Temperature (Storage)	-40°C to 85°C
Relative Humidity	95% without condensation
Electrostatic Discharge Resistance	4 kV (contact), 8 kV (air)
Electromagnetic Field Resistance	10 V/m (80–2000 MHz)
Operating Altitude	≤5000 m

Key Features and Benefits

High Efficiency: The 140CPS11100 delivers a steady 5.1 V DC output, ensuring reliable performance in various industrial applications.
Dual Voltage Compatibility: With an input voltage range of 115 VAC to 230 VAC, this power supply is adaptable to different electrical environments.
Protection Features: Equipped with internal overvoltage and overload protection, the 140CPS11100 safeguards sensitive equipment from electrical faults.
Compact and Reliable: Weighing only 0.91 kg, this Modicon Quantum power supply is compact yet powerful enough to handle demanding automation tasks.
Signal Feedback: The green LED indicator provides instant feedback on power status, improving operational monitoring.
Wide Operating Temperature: The power supply operates in environments with temperatures ranging from 0°C to 60°C, offering flexibility for a wide range of industrial conditions.

Applications

The Schneider 140CPS11100 power supply is ideal for use in a variety of industrial automation systems, including:

Modicon Quantum Control Systems: Essential for providing stable and reliable power to the Modicon Quantum PLC series.
Industrial Automation: Suitable for powering automation devices in manufacturing, processing, and power generation facilities.
Power Distribution Systems: It ensures consistent power output in critical industrial operations.
