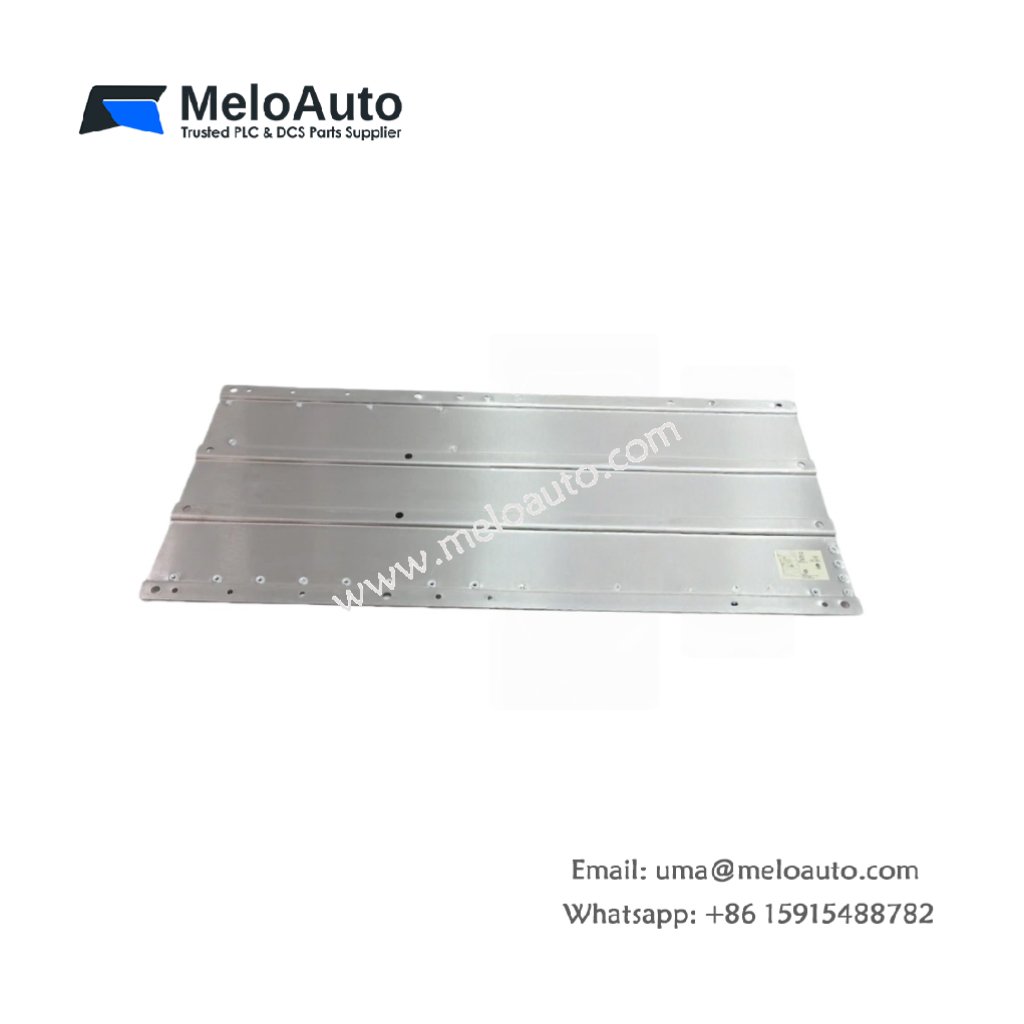

Schneider 140XBP01600 Rack Backplane

Overview

The Schneider 140XBP01600 is an essential rack backplane designed for the Modicon Quantum series. It provides a robust and flexible solution, featuring 16 available slots for connecting various types of I/O modules. This backplane supports local, remote, and distributed I/O modules, enabling seamless integration into complex industrial automation systems.

Key Features

Manufacturer: Schneider Electric
Model Number: 140XBP01600
Product Type: Rack Backplane
Product Line: Modicon Quantum
Part Number: 140XBP01600
Weight: 4.08 kg (9.00 lbs)
Number of Slots: 16
Mounting Support: Mounting Plate
Fixing Mode: Screw
Operating Temperature Range: 0°C to 60°C
Storage Temperature Range: -40°C to 85°C

Technical Specifications

Specification	Value
Number of Slots	16
Remote I/O Modules	Supported
Local I/O Modules	Supported
Distributed I/O Modules	Supported
Mounting Support	Mounting Plate
Fixing Mode	Screw
Operating Temperature Range	0°C to 60°C
Storage Temperature Range	-40°C to 85°C
Weight	4.08 kg (9.00 lbs)

Key Features and Benefits

16 Slot Capacity: The 140XBP01600 offers 16 slots to support a variety of local, remote, and distributed I/O modules, enhancing the scalability of your system.
Temperature Resistance: With an operating temperature range of 0°C to 60°C and a storage range of -40°C to 85°C, the backplane ensures reliable performance in diverse environments.
Flexible Mounting Options: The backplane features a mounting plate support option and screw fixation, ensuring secure and versatile installation.
Durability and Reliability: Designed for demanding industrial environments, the 140XBP01600 provides a robust framework for connecting multiple I/O modules in automation systems.

Applications

The Schneider 140XBP01600 rack backplane is ideal for use in various industrial automation applications, including:

Modicon Quantum Control Systems: A core component for Modicon Quantum PLC systems, supporting both local and remote module configurations.
Industrial Automation: The backplane integrates seamlessly into manufacturing and process control systems that require high reliability and modularity.
Flexible I/O Integration: Perfect for applications that require distributed I/O setups or integration with remote control stations.
