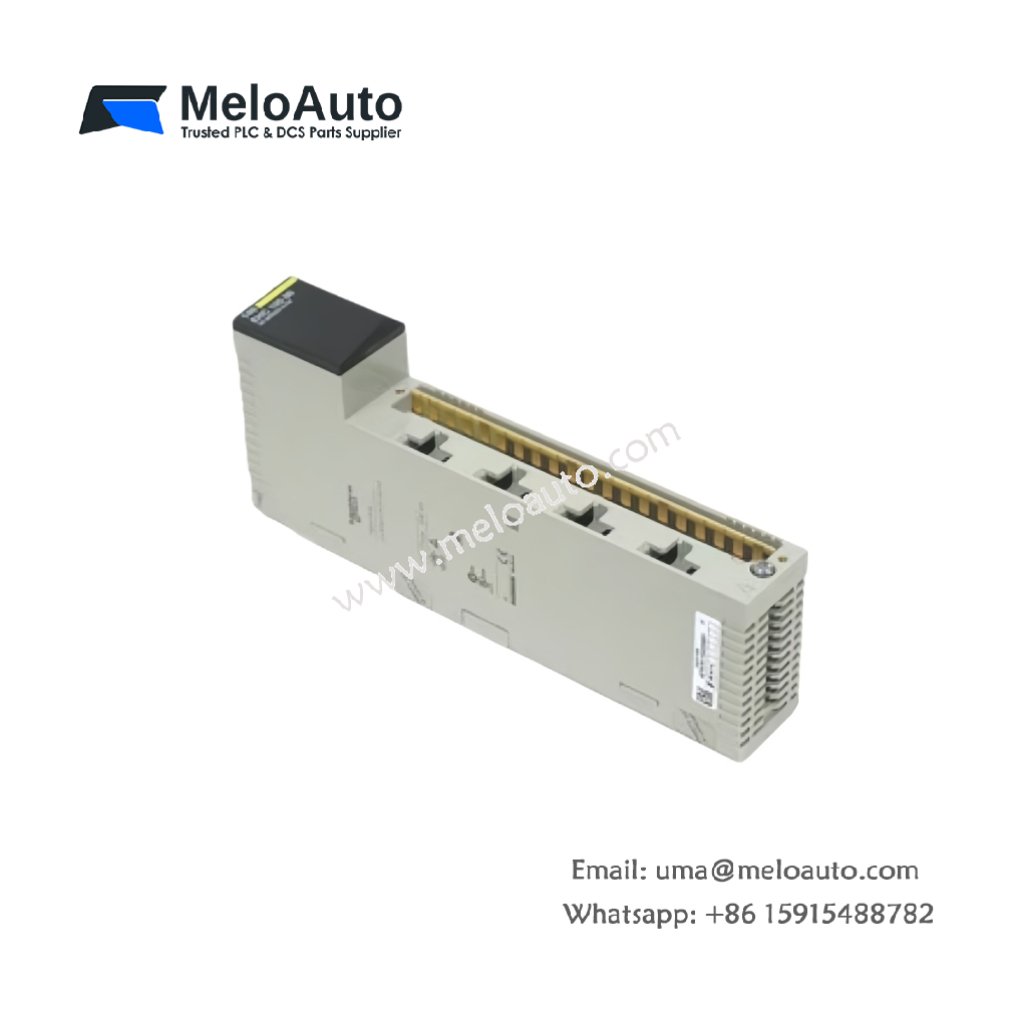

Schneider Electric 140EHC20800 | Analog Counter Module

The Schneider Electric 140EHC20800 serves as an advanced 8-channel analog counter module. It provides a maximum counting speed of 50 kHz, classifying it as a medium-speed module. This makes it well-suited for various industrial applications that require fast and accurate counting capabilities.

Key Specifications & Features

Specification	Details
Model Number	140EHC20800
Manufacturer	Schneider Electric
Product Type	Analog Counter Module
Product Line	I/O Modules
Channels	8-channel analog counter
Speed Category	Medium-speed
Maximum Counting Speed	50 kHz
Spectrum	Spectrum C
Status Indicators	LEDs for real-time status monitoring
Minimum Operating Temperature	0°C
Maximum Operating Temperature	55°C
Minimum Storage Temperature	-20°C
Maximum Storage Temperature	75°C
Relative Humidity	95% (non-condensing)
Environment	No exposure to corrosive gases
Altitude	Up to 5000 meters

Product Description

The 140EHC20800 from Schneider Electric offers an 8-channel configuration for precise analog counting. It delivers a maximum counting speed of 50 kHz, placing it in the medium-speed category, and making it suitable for a variety of industrial operations.

With Spectrum C configuration, this module ensures compatibility across a wide range of industrial control systems. The integrated LEDs allow for easy monitoring of real-time operational status, ensuring that you can track the module’s performance at a glance. The module works effectively within an operating temperature range of 0°C to 55°C, maintaining reliable performance in most industrial environments. When stored, it can withstand temperatures from -20°C to 75°C, ensuring long-term durability.

The 140EHC20800 also supports altitudes of up to 5000 meters, providing flexibility for installations in diverse locations. Its robust design guarantees stable performance, even under challenging environmental conditions.

Applications

Industrial Automation: The 140EHC20800 plays a key role in controlling machinery and automation systems within manufacturing environments.
Process Control: Use this module for applications requiring precise counting and immediate data processing.
Measurement Systems: The 140EHC20800 excels in systems requiring accurate analog measurements.
