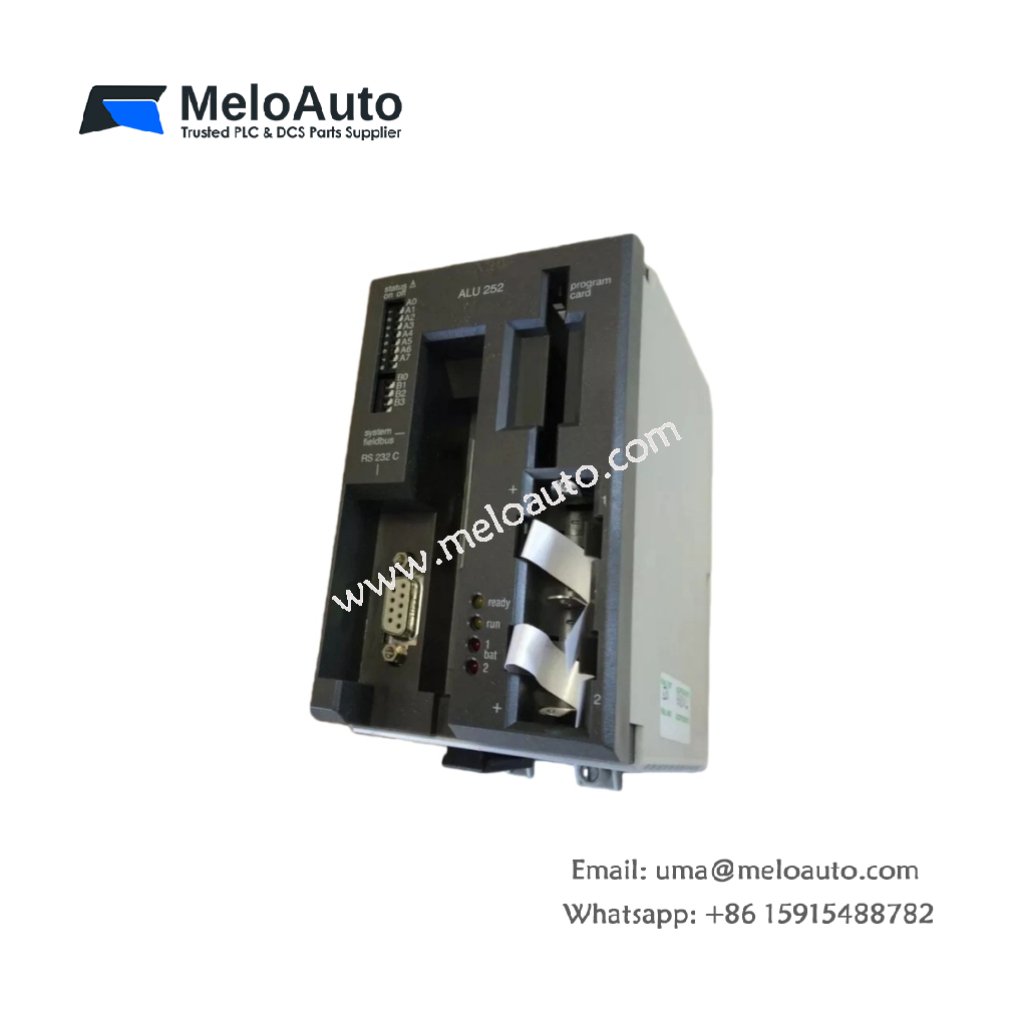

Schneider Electric PC-BALU-252 | TSX COMPACT CPU Module

The Schneider Electric PC-BALU-252 is a high-performance CPU module from the TSX COMPACT series, engineered to deliver reliable and efficient processing for a wide range of industrial applications. It offers a 12.0K RAM capacity and 12 KB program memory, ensuring smooth operation even in demanding conditions.

Key Specifications & Features

Specification	Details
Model Number	PC-BALU-252
Manufacturer	Schneider Electric
Product Type	CPU Module
Product Line	TSX COMPACT
Weight	1.63 lbs (0.74 kg)
RAM Capacity	12.0K
Program Memory	12 KB
Processor Architecture	16-bit
Communication Protocol	MODNET
Operating Temperature	0 to 60 °C
Storage Temperature	-40 to 85 °C
Voltage Supply	5 V DC
Shock Resistance	15 gn, 11 ms
Vibration Resistance	1 gn, 0.75 mm displacement
Humidity Range	5 to 95% (non-condensing)
Mounting Type	Rack-mounted
LED Indicators	Yes

Product Description

The Schneider Electric PC-BALU-252 CPU module is specifically designed for industrial automation and other control systems. As part of the TSX COMPACT series, it brings high reliability and performance to your automation processes. The module features a 12.0K RAM capacity, ensuring quick access to data and efficient processing. With 12 KB program memory, it is suitable for handling moderate to complex logic and programming tasks.

Equipped with LED indicators, the PC-BALU-252 provides clear, real-time feedback on its operational status. This feature simplifies troubleshooting and system monitoring. It is designed for rack-mounted installation, making it easy to integrate into existing systems and providing flexibility for various setups.

In terms of resilience, the PC-BALU-252 excels with shock resistance of 15 gn for 11 ms, making it durable enough for environments prone to sudden impacts. It also boasts vibration resistance of 1 gn, with a displacement of 0.75 mm, ensuring consistent operation even in fluctuating conditions.

This module operates within a temperature range of 0 to 60 °C, with storage temperatures able to withstand extremes from -40 to 85 °C. It also supports a humidity range of 5% to 95% (non-condensing), providing versatility in a variety of environments.

With a 16-bit processor architecture, the PC-BALU-252 supports the MODNET communication protocol, ensuring compatibility with other devices within automated systems. Powered by a 5 V DC voltage supply, this module meets the standard power requirements for most industrial control systems.

Applications

Industrial Automation: Ideal for controlling various machines and production lines.
Process Control: Suitable for applications that demand real-time data processing and system monitoring.
Building Automation: Efficiently manages automation tasks like HVAC and security systems in buildings.
