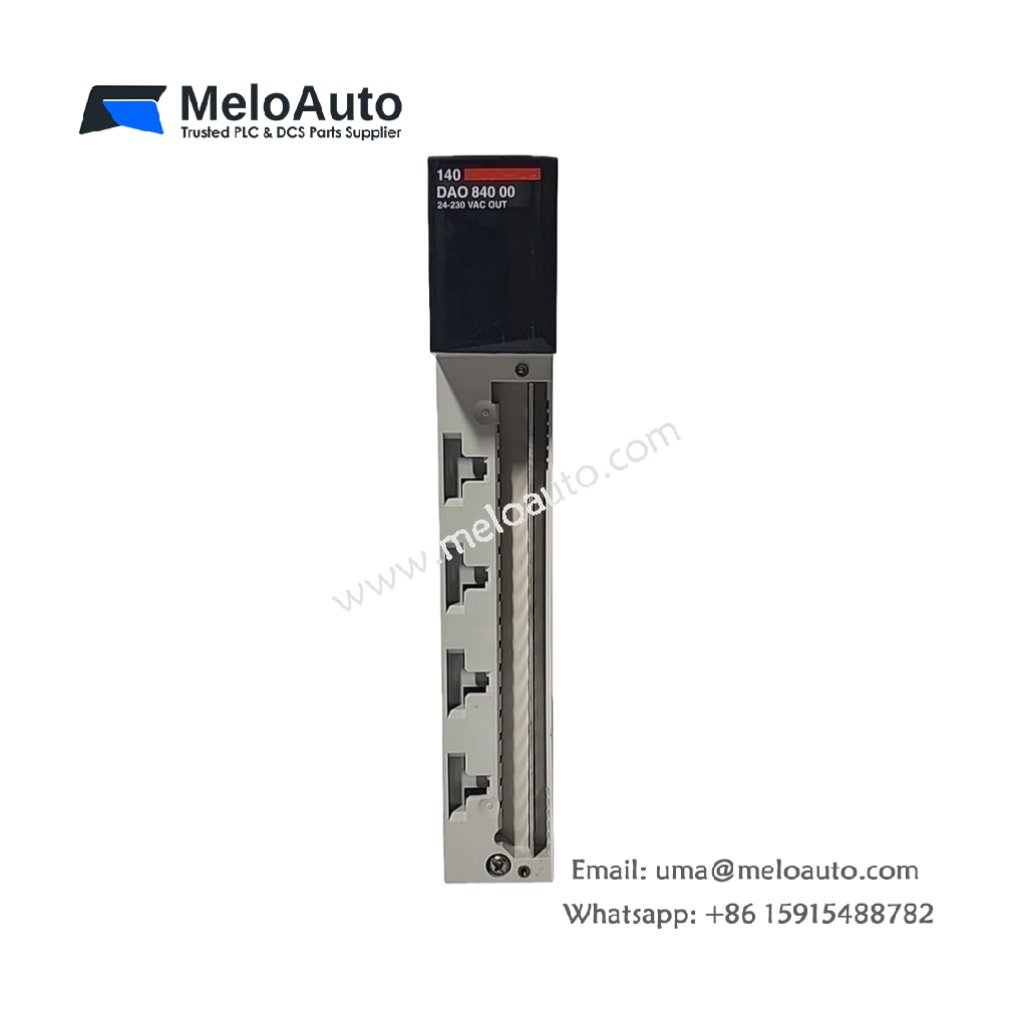

Schneider Electric 140DAO84000 Discrete Output Module

Product Overview

The Schneider Electric 140DAO84000 delivers high-density AC discrete outputs for precise industrial device control.
Moreover, this module belongs to the Modicon Quantum series and supports demanding automation environments with stable electrical performance.
Additionally, the 140DAO84000 enables accurate switching control while maintaining isolation between outputs and field devices.
Therefore, system designers deploy this module to manage multiple actuators with consistent response characteristics.

Performance and Control Characteristics

First, the 140DAO84000 provides forty isolated discrete AC outputs for large-scale output control applications.
Next, each output supports nominal voltages between 22 and 283 VAC, ensuring compatibility with common industrial loads.
Furthermore, the module handles surge currents effectively, protecting outputs during transient electrical conditions.
Consequently, connected devices operate reliably during frequent switching cycles and load variations.

Electrical Design and Diagnostics

Notably, Schneider Electric integrates LED indicators to simplify real-time status monitoring and fault diagnostics.
In addition, green LEDs display bus activity and individual output states for rapid visual confirmation.
Meanwhile, a red LED immediately alerts operators to external fault conditions, reducing troubleshooting time.
As a result, maintenance teams improve system uptime through faster fault identification and corrective action.

Mechanical Construction and Installation

Likewise, the 140DAO84000 features a robust industrial housing suitable for rack-mounted Modicon Quantum systems.
Additionally, the compact form factor optimizes cabinet space while supporting high channel density configurations.
Meanwhile, the moderate module weight simplifies installation and replacement during system upgrades or maintenance.
Therefore, control panels remain organized while supporting scalable output expansion requirements.

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Model	140DAO84000
Product Line	Modicon Quantum
Category	Discrete Output Module
Output Channels	40 isolated AC outputs
Output Voltage Range	22–283 VAC
Supply Frequency	47–63 Hz
Maximum Load Current	0.5 A rms at 230 VAC per output
Module Current Capacity	10 A rms total
Surge Current Capability	Up to 50 A for one cycle
Response Time	≤0.5 ms state change
Bus Current Requirement	350 mA
Power Dissipation	1.85 W + load-dependent consumption
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Relative Humidity	98% non-condensing
Certifications	UL, cUL, FM Class I Division 2
Dimensions	10.0 × 2.0 × 4.0 inches
Weight	1 lb 9 oz (0.7 kg)

Key Advantages

Therefore, forty outputs significantly reduce required module count in large automation systems.
Moreover, isolated AC outputs enhance electrical safety and noise immunity.
Additionally, fast response times improve actuator synchronization and process accuracy.
Finally, Modicon Quantum compatibility ensures seamless integration with Schneider Electric control architectures.
