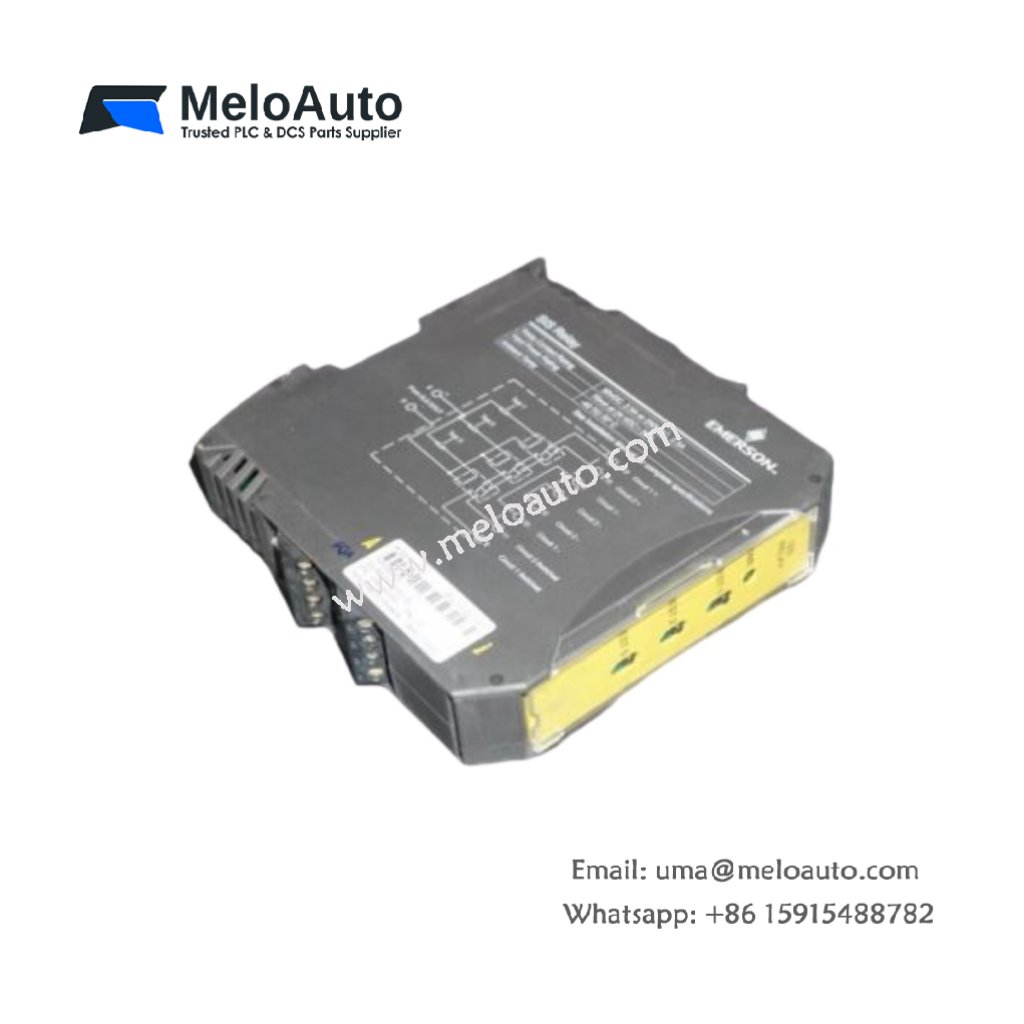

EMERSON KJ2231X1-EA1 Discrete Output Module

The EMERSON KJ2231X1-EA1 is a high-performance discrete output module designed specifically for Emerson DeltaV systems. It provides reliable control for industrial applications, ensuring optimal performance across a wide range of environments. This module supports diverse relay contacts and input power configurations, making it a versatile solution for various industrial automation needs.

Key Features

Flexible Input Power: The KJ2231X1-EA1 operates with 24 VDC at 70 mA, 30 VDC at 2.5 A, and 250 VAC at 2.5 A, offering flexibility for different industrial setups.
Broad Temperature Range: With an operating range from -40°C to +70°C, this module is suitable for extreme temperature conditions.
High Shock and Vibration Resistance: Designed to withstand 10g shock and vibrations from 2 to 150Hz, ensuring durability in demanding environments.
Environmentally Resilient: Built to meet ISA-S71.04 – 1985 Class G3 for airborne contaminants, it protects against dust and particulates.
Moisture Protection: It operates effectively in environments with 5 to 95% relative humidity (non-condensing), making it ideal for humid conditions.

Technical Specifications

Specification	Details
Model Number	KJ2231X1-EA1
Manufacturer	Emerson
Input Power	24 VDC at 70 mA, 30 VDC at 2.5 A, 250 VAC at 2.5 A
Relay Contact Rating	30 VDC at 2.5 A, 250 VAC at 2.5 A
Ambient Temperature	-40°C to +70°C
Shock Resistance	10g ½ Sinewave for 11msec
Vibration Resistance	1mm Peak-to-Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants	ISA-S71.04 – 1985 Class G3
Relative Humidity	5 to 95% Non-Condensing
IP Rating	IP20

Design and Performance

The KJ2231X1-EA1 is built to handle high-power demands with multiple voltage input options, making it adaptable for diverse industrial systems. It excels in extreme conditions, with a wide temperature range and high resistance to shock and vibration. These qualities ensure its reliability in environments subject to fluctuating temperatures and physical stress.

The KJ2231X1-EA1 features advanced relay contact protection, which includes open-load detection and fault isolation. Additionally, each channel is individually protected, preventing faults from spreading across the system. These protections contribute to a more stable and secure system.

Environmental Specifications

The KJ2231X1-EA1 is designed to operate in a variety of environmental conditions. It is resistant to airborne contaminants, protecting the internal components from dust and particulate exposure. With 5 to 95% relative humidity tolerance, this module ensures consistent operation in humid environments.

Applications

The EMERSON KJ2231X1-EA1 is ideal for use in:

Process Control: Enables precise control of industrial processes with reliable outputs.
Manufacturing Automation: Interfaces seamlessly with industrial devices to enhance system automation.
Building Automation: Controls HVAC systems, lighting, and other building infrastructure.
Oil & Gas: Controls actuators and valves in harsh environments.
Material Handling: Perfect for conveyors, hoists, and other material handling applications.

Why Choose the EMERSON KJ2231X1-EA1?

The KJ2231X1-EA1 is an excellent choice for industrial automation due to its flexibility, robust protection features, and superior environmental resistance. Whether you’re working in extreme temperatures or humid conditions, this module provides reliable control. Its easy integration with Emerson DeltaV systems further enhances its value in industrial applications.

With a range of input power options and built-in fault protection, this module ensures operational safety while maintaining consistent performance. Moreover, its ability to endure shock, vibration, and airborne contaminants makes it suitable for a variety of industrial sectors, such as oil & gas, manufacturing, and material handling.
