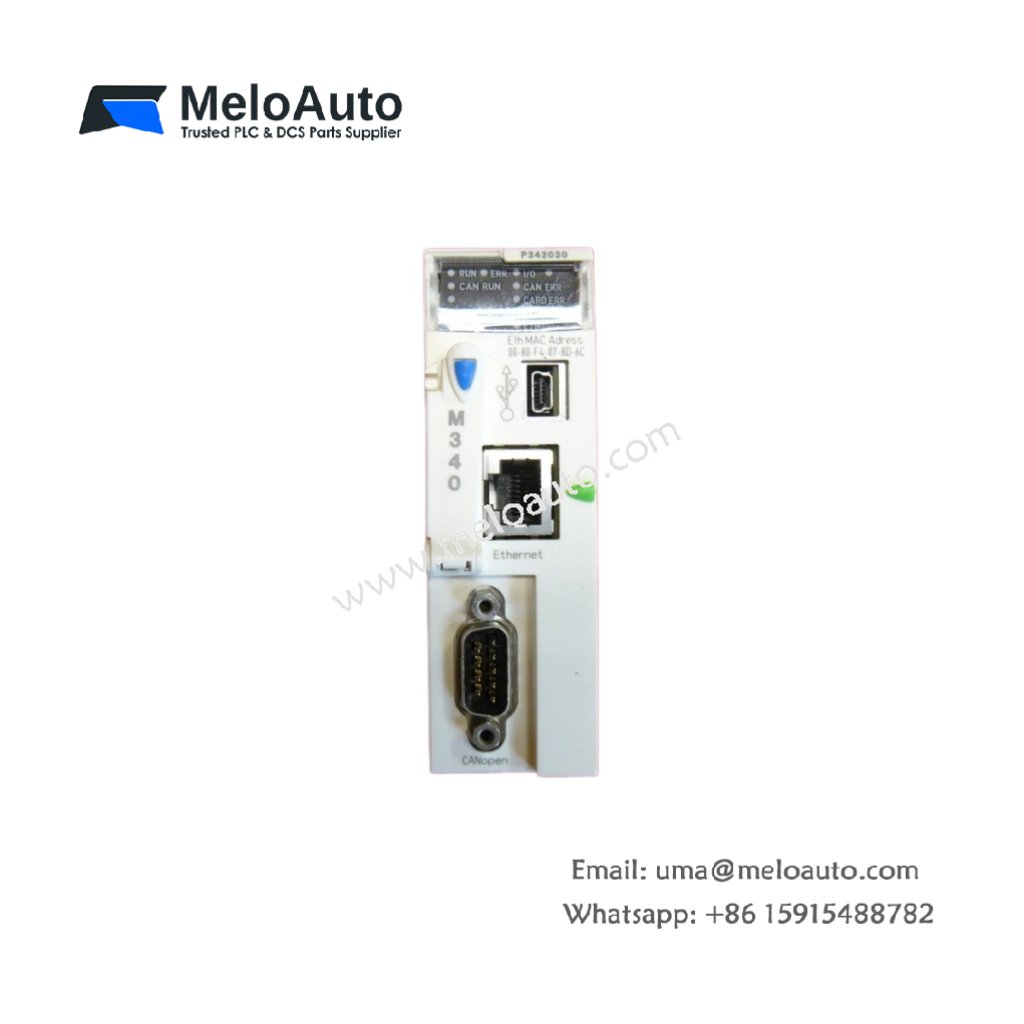

Schneider BMXP342030 | Processor Module Modicon

The Schneider BMXP342030 serves as the main processing unit for Modicon M340 PLC systems. This processor module executes logic, manages I/O, and handles communication tasks. You can use it for mid-sized automation projects in manufacturing or infrastructure. The unit supports up to 512 discrete I/O points and 128 analog channels.

Processing and Memory Specifications

Parameter	Specification
Brand	Schneider Electric
Model	BMXP342030
Product Type	Processor Module (CPU)
Execution Time	0.13 µs per boolean instruction
User Program Memory	4 MB (RAM + Flash)
Data Memory	256 KB
Maximum I/O	512 discrete / 128 analog
Task Types	Cyclic, periodic, event

The Schneider BMXP342030 executes boolean logic in just 0.13 microseconds. This processor module stores up to 4 MB of user application code. You can run cyclic, periodic, or event-triggered tasks simultaneously. The unit handles both local and distributed I/O across the backplane.

Physical Dimensions and Weight

Parameter	Specification
Weight	0.32 kg (0.71 lbs)
Height	104 mm
Width	36 mm (1 slot)
Depth	86 mm
Mounting	M340 backplane
Slot Requirement	1 (single-width)

This processor module weighs only 0.32 kg for lightweight rack installation. The unit occupies a single slot in an M340 rack. Its height reaches 104 mm with the front cover closed. You can insert the Schneider BMXP342030 next to any M340 I/O modules.

Communication Interfaces

A USB mini-B port provides local programming access to the CPU. One Ethernet port supports Modbus TCP/IP for network communications. The front panel includes an SD card slot for data logging or program backup. You will also find a serial port for Modbus RS-232 connections. Each interface operates independently for multi-protocol support.

Energy Storage and Data Retention

The Schneider BMXP342030 uses a lithium battery for retentive data backup. This battery maintains RAM contents for up to 10 months without external power. An internal supercapacitor provides 72 hours of real-time clock backup. The module also includes 256 KB of non-volatile flash for program storage. You do not lose application code when replacing the battery.

Internal Components and Indicators

A 32-bit RISC processor runs all automation tasks efficiently. The front panel features 7 status LEDs for power, run, and I/O. You will find 16 diagnostic LEDs for communication port activity. The Schneider BMXP342030 contains approximately 210 surface-mount components. A removable SD card slot accepts standard industrial-grade cards up to 2 GB.

System Integration and Use

Transitioning to this CPU simplifies your M340 system architecture. You can program the module using EcoStruxure Control Expert software. The processor supports up to 16 distributed I/O racks over the backplane. Use the Schneider BMXP342030 for pump stations, conveyor systems, or HVAC control. For best results, update the firmware to the latest version before deployment.
