Schneider ASP120250 | Compact Power Supply | 24V 2.5A

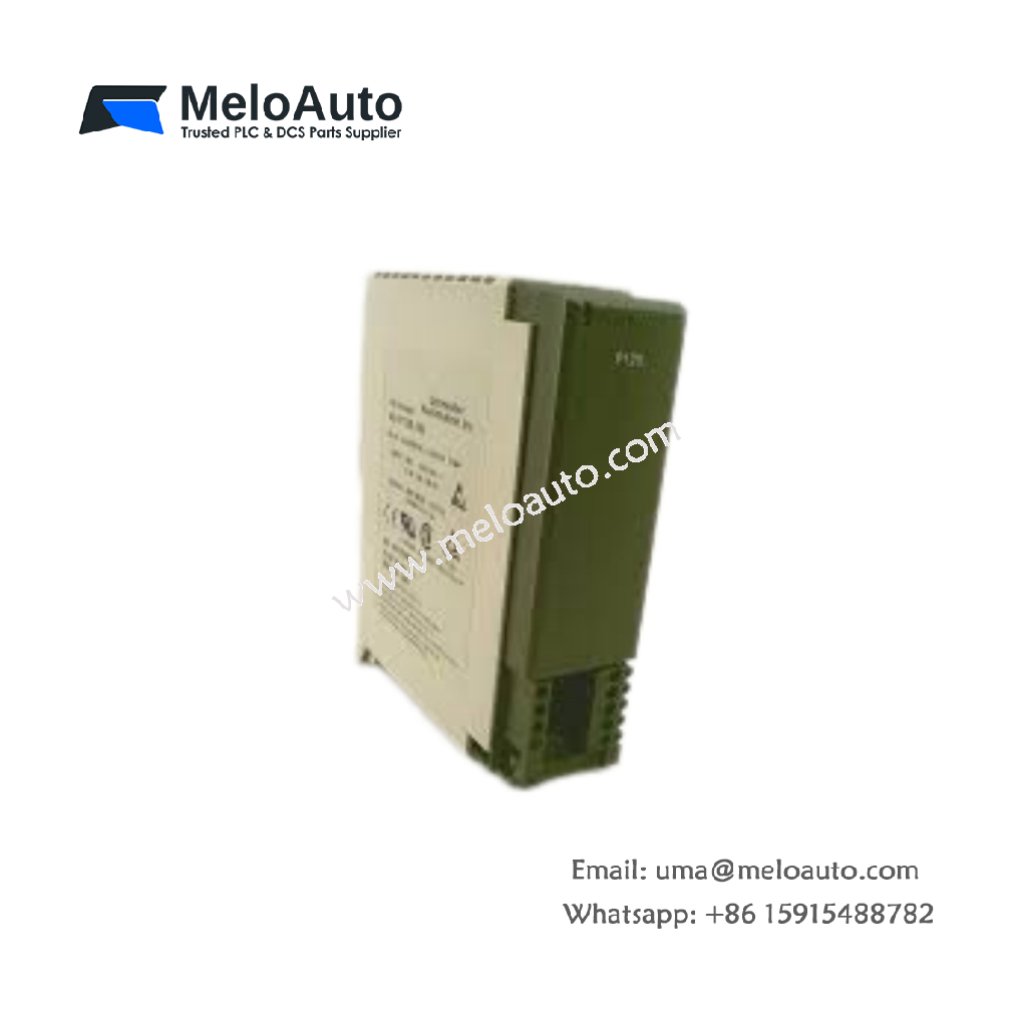

The Schneider ASP120250 delivers stable DC power for industrial automation systems. This compact power supply converts 100-240 V AC input to 24 V DC output. It provides 2.5 A of continuous output current for reliable operation. Weighing only 0.3 kg, the Schneider ASP120250 fits easily into control cabinets. Its slim dimensions measure 85 mm x 36 mm x 110 mm.

Input and Output Specifications

The Schneider ASP120250 accepts a wide input voltage range from 85 V AC to 264 V AC. This module also supports 110 V DC to 370 V DC input for flexibility. It delivers exactly 24 V DC with a tight ±5% output accuracy. Therefore, sensitive electronic devices receive clean and stable power. The output current reaches 2.5 A continuously or 3.5 A for short peaks.

Energy Storage and Protection Features

The Schneider ASP120250 includes an internal 220 µF output capacitor for energy storage. This capacitor maintains output voltage for 20 ms during input interruptions. Consequently, your PLC or controller keeps running through brief power dips. The module also offers overload and short-circuit protection. It automatically resumes normal operation after removing the fault condition. Thus, the Schneider ASP120250 protects your downstream equipment effectively.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	Schneider ASP120250
Product Category	Compact Industrial Power Supply
Input Voltage (AC)	100-240 V AC (85-264 V AC range)
Input Voltage (DC)	110-370 V DC
Output Voltage	24 V DC (±5%)
Output Current (Continuous)	2.5 A
Output Current (Peak)	3.5 A for 10 seconds
Output Power	60 W
Output Capacitance (Energy Storage)	220 µF
Hold-up Time	20 ms at 230 V AC full load
Net Weight	0.3 kg (300 grams)
Gross Weight (packaged)	410 grams
Dimensions (H x W x D)	85 mm x 36 mm x 110 mm
Number of Components	1 main PCB + metal casing + 3 terminal blocks
Input Interface	Screw terminal (L, N, PE)
Output Interface	Screw terminal (+V, -V)
Efficiency	86% typical at 230 V AC
Inrush Current	30 A maximum
Operating Temperature	-20°C to +70°C (derate above 50°C)
Storage Temperature	-40°C to +85°C
Degree of Protection	IP20
Certifications	CE, UL 508, cUL, Class I Division 2

Physical Design and Installation Details

The Schneider ASP120250 mounts easily onto a standard DIN rail. Its compact width of only 36 mm saves valuable cabinet space. The module features three input terminals and two output terminals for simple wiring. Use 0.5 mm² to 2.5 mm² wire for secure connections. The Schneider ASP120250 requires no external cooling fan for normal operation. Therefore, it runs silently and reduces maintenance needs. This power supply suits small PLCs, sensors, and other field devices perfectly.
