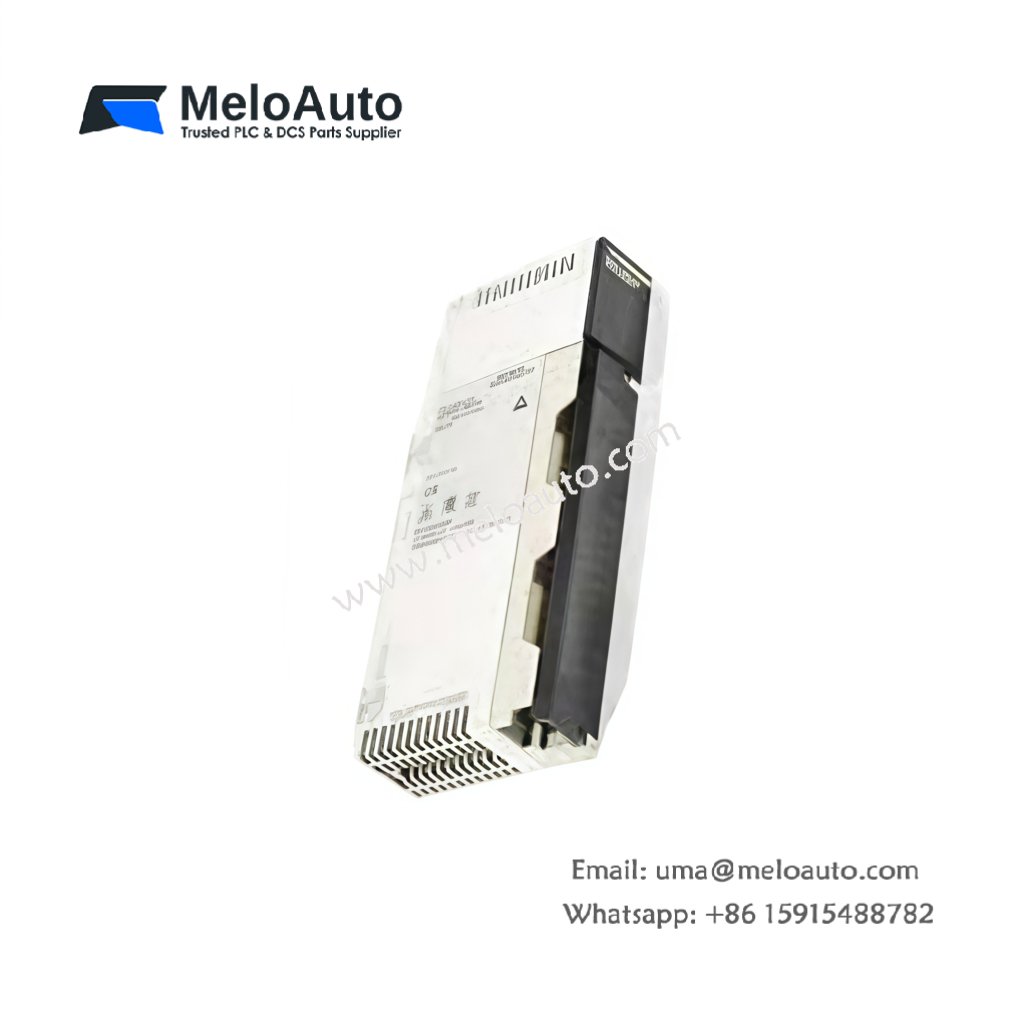

Schneider 140EHC20200 | High-Speed Counter Module

The Schneider 140EHC20200 provides precise high-speed counting for the Modicon Quantum platform. This module features two independent counter channels for versatile applications. It accepts input frequencies up to 500 kHz per channel for accurate position tracking. Weighing only 0.45 kg, the Schneider 140EHC20200 fits into any standard Quantum rack slot. Its dimensions measure 150 mm x 100 mm x 55 mm.

Input Interfaces and Signal Types

The Schneider 140EHC20200 accepts five different input signal types for maximum flexibility. This module handles RS422 differential signals, 5 V DC, and 24 V DC inputs. It also supports 24 V DC directional signals and 5 V DC encoder interfaces. Moreover, each channel includes dedicated digital inputs for counting enable and preset functions. Therefore, you can configure this counter for nearly any industrial sensor or encoder.

Energy Storage and Internal Components

The Schneider 140EHC20200 contains no internal battery for maintenance-free operation. It stores configuration data in non-volatile flash memory instead. This module includes four optocouplers for input isolation and noise rejection. The unit draws 350 mA from the 5 V DC rack power supply. Consequently, it adds minimal load to your existing Quantum system. The Schneider 140EHC20200 also features four discrete outputs for setpoint control.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	Schneider 140EHC20200
Product Category	Modicon Quantum High-Speed Counter Module
Number of Channels	2 independent counter channels
Maximum Input Frequency	500 kHz per channel
Signal Types Supported	RS422 differential, 5 V DC, 24 V DC, directional, encoder
Discrete Outputs	4 (24 V DC, 0.5 A each)
Discrete Inputs per Channel	Enable + Preset (2 per channel)
Current Consumption	350 mA at 5 V DC
Power Dissipation	1.75 W maximum
Net Weight	0.45 kg (450 grams)
Gross Weight (packaged)	580 grams
Dimensions (H x W x D)	150 mm x 100 mm x 55 mm
Number of Components	1 main PCB + metal shielding + 4 optocouplers + terminal block
Energy Storage Type	No battery (flash memory only)
Counter Resolution	32-bit (up to 4,294,967,295 counts)
Counter Modes	Up, down, up/down, quadrature (x1, x2, x4)
Output Response Time	< 1 ms
Input Filter Time	Configurable from 0.05 ms to 12.8 ms
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Degree of Protection	IP20
Certifications	CE, UL 508, CSA, ATEX Zone 2
Configuration Software	Unity Pro Quantum, Concept, ProWORX

Installation and Application Details

The Schneider 140EHC20200 connects via a standard 25-pin SUB-D female connector. This module also includes a removable screw terminal block for field wiring. Use AWG 22 to AWG 14 wire for reliable connections. The Schneider 140EHC20200 excels at position tracking, speed monitoring, and flow metering. It suits packaging machines, conveyors, and cutting-to-length applications perfectly. Thus, this high-speed counter module delivers precise control for demanding industrial tasks.
