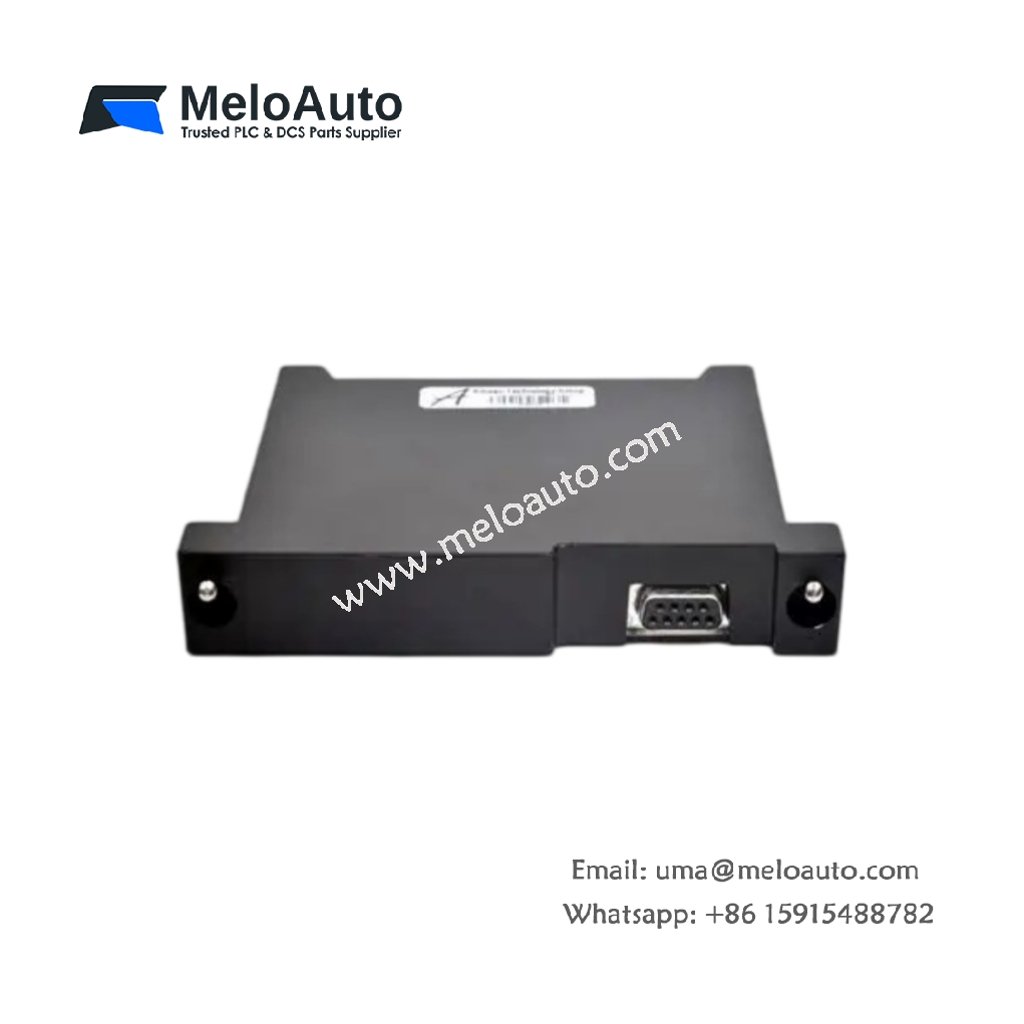

Bently Nevada 170180-01-00 External Transducer I/O Module

The 170180-01-00 external transducer I/O module from Bently Nevada connects field sensors to machinery protection racks through remote wiring. Plant engineers install this module whenever transducers sit far from the monitor cabinet. Consequently, it delivers conditioned signals over long cable runs without losing measurement accuracy.

Key Technical Specifications

The table below outlines the main physical and electrical parameters of the 170180-01-00 module.

Parameter	Specification
Product Type	External Transducer I/O Module
Compatibility	Bently Nevada machinery protection systems
Dimensions	Approximately 200 mm x 130 mm x 40 mm
Weight	Approximately 0.7 kg (1.5 lbs)
Mounting	Panel or field enclosure mounting base
Interface	Backplane bus and external transducer terminals
Connectors	Multi-pin connector and terminal blocks
Component Count	Multiple signal conditioners, filters, and driver circuits
Energy Storage	On-board capacitors for signal and voltage stabilization
Input Channels	Multiple external transducer input channels
Signal Type	Proximity probe and accelerometer input support
Operating Temperature	0 degrees C to 60 degrees C
Storage Temperature	-40 degrees C to 85 degrees C
Humidity	5% to 95% non-condensing

Functional Overview

This module receives transducer signals at a remote location and forwards them to the protection rack. Therefore, it shortens field wiring runs and reduces installation costs across large machine trains. The 170180-01-00 also conditions each signal before transmission to preserve measurement accuracy. Meanwhile, its onboard energy storage stabilizes signals during transient voltage fluctuations.

Installation and Handling Notes

Always verify transducer gap voltages before connecting sensors to the 170180-01-00. In addition, use shielded twisted-pair cable to protect signal integrity over long runs. Tighten all connectors fully to prevent intermittent data loss. Finally, confirm channel readings during commissioning.
