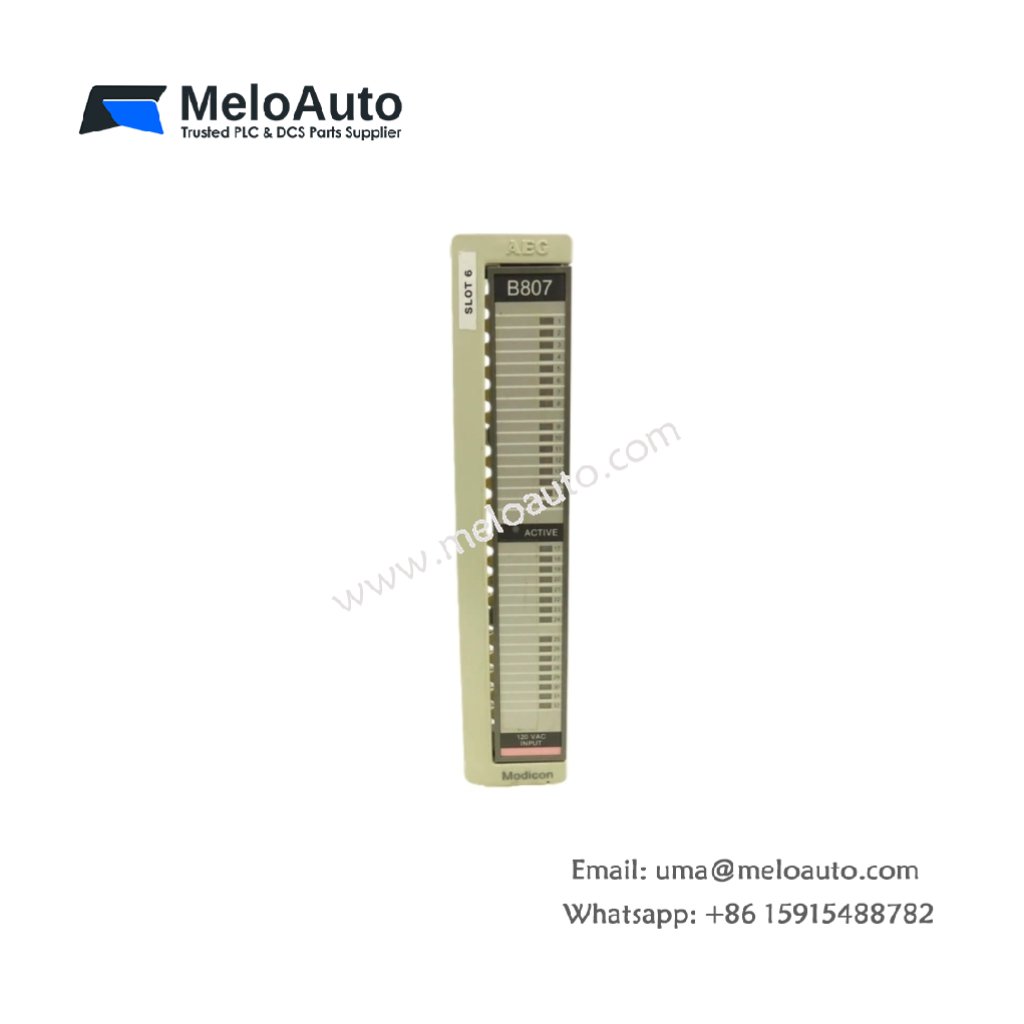

Schneider ASB807032 I/O Module – 32 Digital Outputs

Overview

The Schneider ASB807032 I/O module is specifically designed to provide reliable digital output in industrial automation systems. It operates with a 24 V DC input voltage and offers 32 discrete digital outputs. Each output delivers a maximum current of 0.5 A, making it ideal for various applications in automated environments.

Key Features

• Manufacturer: Schneider Electric
• Product Type: I/O Module
• Part Number: ASB807032
• Product Line: I/O Modules
• Input Voltage: 24 V DC
• Output Type: Digital Output
• Output Current: 0.5 A per Output
• Number of Outputs: 32 Outputs
• Mounting Type: DIN Rail Mount
• Environmental Protection: IP20

Technical Specifications

Product Description

The Schneider ASB807032 is a high-performance I/O module designed to meet the demands of industrial control systems. It uses a 24 V DC input and provides 32 digital outputs, each capable of delivering 0.5 A. This module’s robust design and versatile features make it a great addition to various automated applications.

Moreover, the ASB807032 is compact, measuring just 50 mm in width, 90 mm in height, and 100 mm in depth. Its DIN rail mounting capability ensures simple installation in control panels. This feature streamlines the integration process, allowing the module to fit easily into tight spaces.

In addition to its space-saving design, the module operates efficiently within a temperature range of 0°C to 60°C, making it suitable for a wide variety of indoor applications. It also performs well during storage, withstanding temperatures as low as -20°C and as high as 70°C.

Furthermore, the ASB807032 features IP20 protection, safeguarding it from dust and direct contact with internal components. With its low power consumption of approximately 2 W, it operates efficiently, contributing to cost savings in long-term usage.

Applications

The Schneider ASB807032 I/O module is perfect for systems that require reliable digital outputs. It is commonly used in manufacturing, robotics, and process control, where it provides control over a large number of outputs. Its small size and flexible temperature range allow it to be used in diverse operational environments.

Thanks to its DIN rail mounting, installation is straightforward. This makes it easy to integrate the ASB807032 module into existing setups. Additionally, the module’s robust protection class (IP20) ensures it remains functional even in standard industrial conditions.

Why Choose the Schneider ASB807032?

• High-Performance Output: Delivering 0.5 A per output, the module ensures reliable signal transmission.
• Compact Design: Easy to install, this module fits well in tight spaces.
• Flexible Temperature Range: It operates from 0°C to 60°C and withstands storage conditions from -20°C to 70°C.
• Durable Protection: IP20 rating ensures protection against dust and direct contact.
