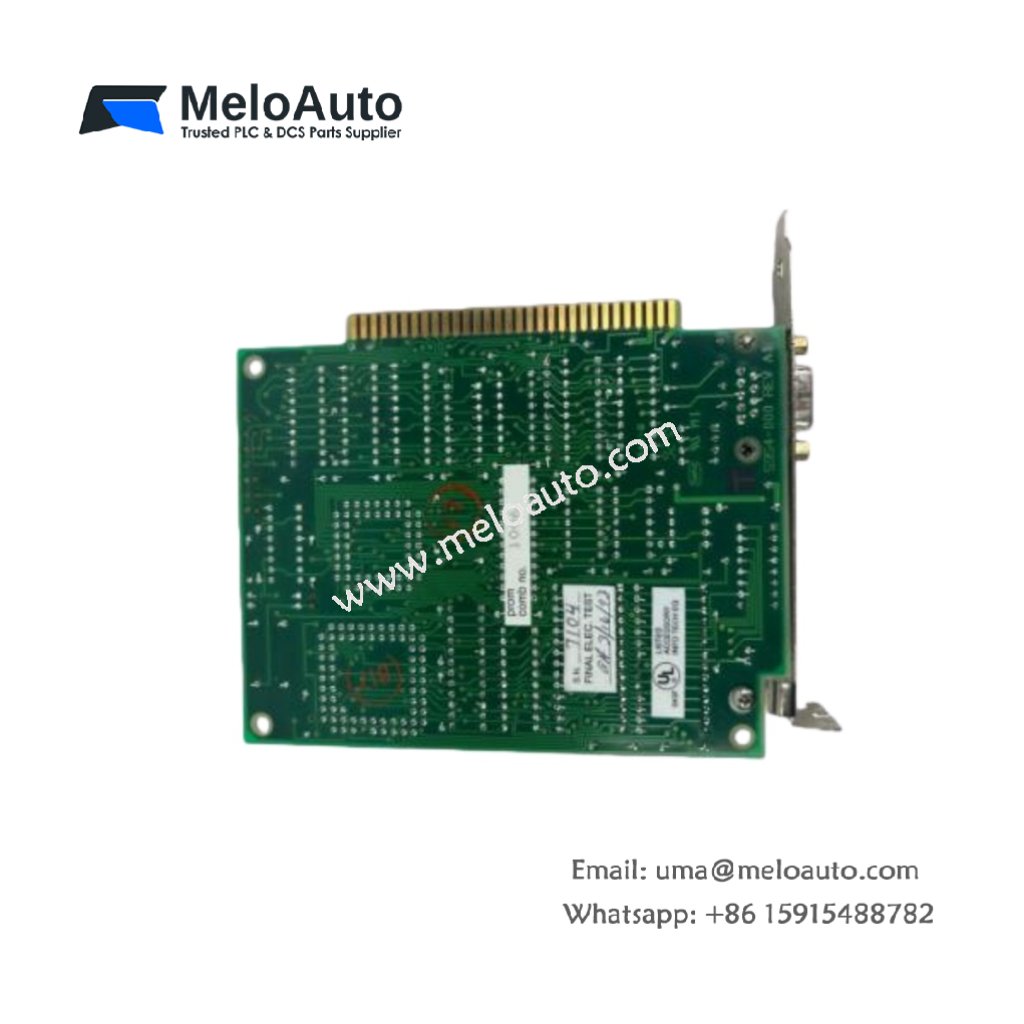

Schneider AM-SA85-000 Network Adapter Circuit Board

The Schneider AM-SA85-000 is a high-performance network adapter circuit board designed for use in Modbus Plus networking applications. This versatile board provides a multi-purpose control networking solution that combines high-speed communication with simple installation, optimizing both cost and functionality for industrial automation systems. With its peer-to-peer communication and robust connectivity, the AM-SA85-000 ensures reliable, efficient data transfer across your network.

Key Features of the Schneider AM-SA85-000

High-Speed Communication: The AM-SA85-000 supports fast data transfer over the Modbus Plus network, enhancing overall system performance.
Peer-to-Peer Communication: Facilitates direct communication between devices without the need for a central controller, improving system efficiency.
Multi-Purpose Solution: Ideal for various control networking applications, it simplifies integration and reduces installation time and costs.
Global Database Feature: Easily broadcast data to all network nodes, ensuring consistent and synchronized data across the network.
Network Bridging: Supports bridging between separate Modbus Plus networks, allowing virtually unlimited node connectivity.
RS485 Communication Link: Uses an RS485 communication protocol for reliable, long-distance communication between devices.

Technical Specifications

Feature	Specification
Communication Protocol	Modbus Plus
Network Type	Peer-to-peer, token-exchange
Communication Link	RS485
Max Node Count	Virtually unlimited (via bridging)
Data Broadcast	Global database feature for data broadcast to all nodes
Installation	Easy installation and setup for quick network deployment
Adapter Type	Network adapter circuit board
Mounting Type	Suitable for standard rack or panel mounting
Power Consumption	Low power consumption for energy-efficient operation
Weight	1 lb 9 oz (0.7 kg)
Dimensions	10.0 × 2.0 × 4.0 inches

Application and Usage

The Schneider AM-SA85-000 network adapter is perfect for Modbus Plus-based systems in industrial automation and control applications. It provides seamless communication between devices, making it ideal for distributed control systems, process control, and monitoring. The board simplifies data sharing and enhances connectivity by bridging different Modbus Plus networks, which allows for a scalable and flexible system.
